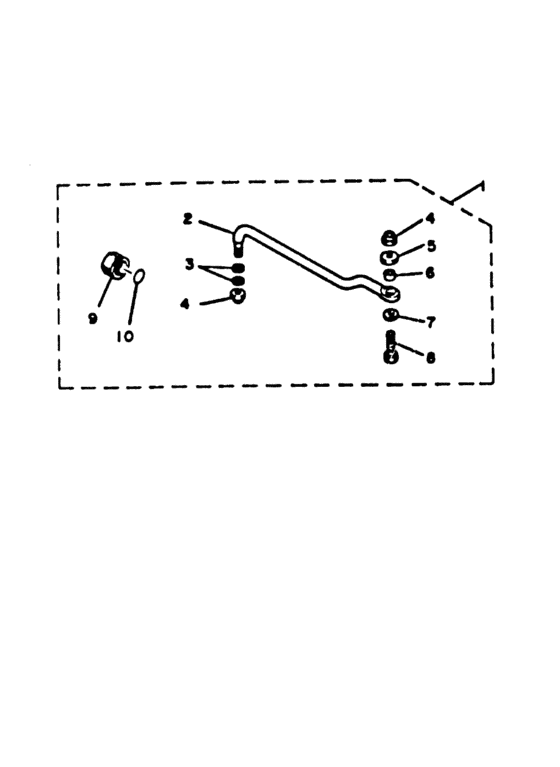

Steering guide attachment Diagram Yamaha 70 (E)TLR
- Year
- 1985
- Model
- 70
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-61350-10-00 Steering Guide Attachment Kit |
688-61350-10-00 |
from US $101.55 |
||
|
2
|
2
688-61351-10-00 Rod, Steering Link |
688-61351-10-00 |
from US $88.42 |
||
|
3
|
3
90201-10M20-00 Washer, Plate |
90201-10M20-00 |
from US $2.13 |
||
|
4
|
4
90185-09M01-00 Nut, Self-Locking |
90185-09M01-00 |
from US $5.30 |
||
|
5
|
5
90170-09M03-00 Nut |
90170-09M03-00 |
from US $11.48 |
||
|
6
|
6
90387-10M42-00 Collar |
90387-10M42-00 |
from US $3.54 |
||
|
7
|
7
902-0110M-63-00
Washer, Plate
|
902-0110M-63-00 |
— | ||
| replacement | |||||
|
7
|
7
902-01100-81-00 WASHER PLATE |
902-01100-81-00 |
from US $2.69 |
||
|
8
|
8
6E5-61355-00-00 Bolt |
6E5-61355-00-00 |
from US $23.16 |
||
|
9
|
9
6E5-43145-00-00 Cap, Clamp Bracket |
6E5-43145-00-00 |
US $9.07 |
||
| replacement | |||||
|
9
|
9
6E5-43145-01-00 Cap, Clamp Bracket |
6E5-43145-01-00 |
from US $9.07 |
||
|
10
|
10
932-10167-16-00
O-Ring(59W)
|
932-10167-16-00 |
— | ||
| replacement | |||||
|
10
|
10
932-10167-72-00 O-Ring |
932-10167-72-00 |
from US $1.42 |
||
