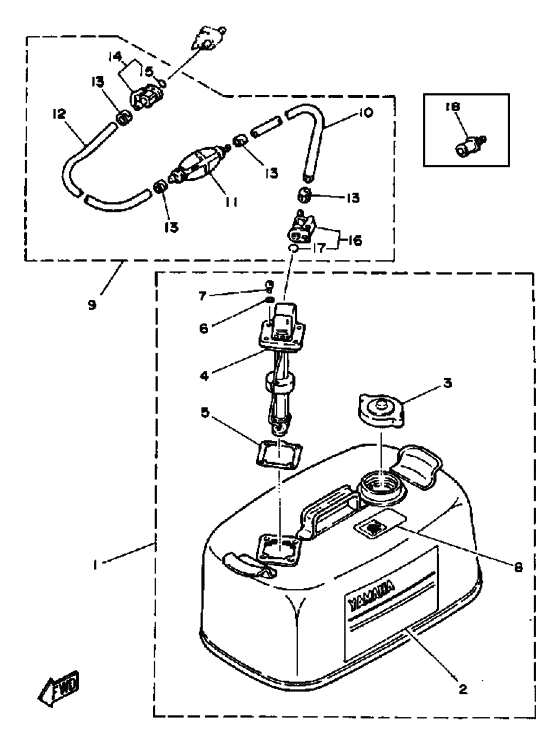

Fuel tank Diagram Yamaha 70 (E)TLR
- Year
- 1991
- Model
- 70
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y1-W2420-42-24
Fuel Tank Assembly
|
6Y1-W2420-42-24 |
— | ||
|
2
|
2
6Y1-24244-20-00
Graphic, Side
|
6Y1-24244-20-00 |
— | ||
|
3
|
3
6Y1-24610-00-00 Cap Assembly |
6Y1-24610-00-00 |
US $29.81 |
||
|
4
|
4
6Y1-24260-02-00
Fuel Meter Assembly
|
6Y1-24260-02-00 |
— | ||
| replacement | |||||
|
4
|
4
6Y1-24260-19-00 FUEL METER ASSY |
6Y1-24260-19-00 |
US $86.48 |
||
|
5
|
5
6Y1-24268-00-00 Gasket, Fuel Meter |
6Y1-24268-00-00 |
US $3.83 |
||
|
6
|
6
6Y1-24329-00-00 Seal |
6Y1-24329-00-00 |
from US $1.70 |
||
|
7
|
7
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
8
|
8
6Y1-24256-50-00
Graphic, Fuel Tank
|
6Y1-24256-50-00 |
— | ||
|
9
|
9
6Y1-24306-51-00 Fuel Pipe Comp. 1 |
6Y1-24306-51-00 |
US $88.70 |
||
| replacement | |||||
|
9
|
9
6YL-24306-64-00 Fuel Pipe Comp. 1 |
6YL-24306-64-00 |
from US $268.03 |
||
|
10
|
10
90445-11M06-00 Hose |
90445-11M06-00 |
US $34.57 |
||
| replacement | |||||
|
10
|
10
90445-11M81-00 Hose (L3000) |
90445-11M81-00 |
from US $34.57 |
||
|
11
|
11
6Y1-24360-51-00 Primer Pump Assy |
6Y1-24360-51-00 |
US $32.59 |
||
| replacement | |||||
|
11
|
11
6YL-24360-63-00 PIPE, JOINT 2 |
6YL-24360-63-00 |
from US $54.97 |
||
|
12
|
12
90445-11M05-00 Hose |
90445-11M05-00 |
US $10.77 |
||
| replacement | |||||
|
12
|
12
90445-11M78-00 Hose |
90445-11M78-00 |
US $10.77 |
||
|
13
|
13
650-24351-51-00 Band 1 |
650-24351-51-00 |
from US $2.98 |
||
|
14
|
14
6G1-24305-01-00 Fuel Pipe Joint Comp 2 |
6G1-24305-01-00 |
US $28.34 |
||
| replacement | |||||
|
14
|
14
6G1-24305-05-00 Fuel Pipe Joint Comp 2 |
6G1-24305-05-00 |
from US $24.14 |
||
|
15
|
15
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
|
16
|
16
6Y1-24305-02-00 Fuel Pipe Joint Comp 2 |
6Y1-24305-02-00 |
US $25.08 |
||
| replacements | |||||
|
16
|
16
6G1-24305-05-00 Fuel Pipe Joint Comp 2 |
6G1-24305-05-00 |
from US $24.14 |
||
|
16
|
16
6Y1-24305-06-00 Fuel Pipe Joint Comp 2 |
6Y1-24305-06-00 |
from US $25.08 |
||
|
17
|
17
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
|
18
|
18
ABB-FLUSH-JD-00 Jet Drive Flush |
ABB-FLUSH-JD-00 |
US $23.60 |
||
