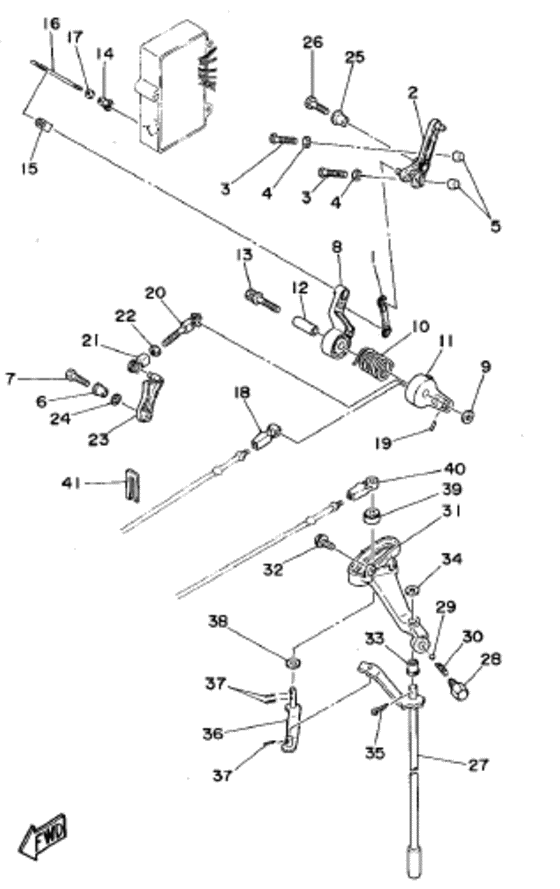

Control Diagram Yamaha 70 (E)TLR
- Year
- 1995
- Model
- 70
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 70
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
682-41238-51-00
Joint, Link 1
|
682-41238-51-00 |
— | ||
|
2
|
2
6H3-41631-00-00 Lever, Magneto Control |
6H3-41631-00-00 |
from US $22.68 |
||
|
3
|
3
90157-06M13-00 Screw, Pan Head |
90157-06M13-00 |
from US $2.69 |
||
|
4
|
4
956-01062-00-00
Nut, U-Flange
|
956-01062-00-00 |
— | ||
| replacement | |||||
|
4
|
4
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
5
|
5
688-44194-00-00 Cap |
688-44194-00-00 |
from US $5.95 |
||
|
6
|
6
90387-06M60-00 Collar |
90387-06M60-00 |
from US $3.32 |
||
|
7
|
7
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
7
|
7
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
8
|
8
6H3-41632-10-00
Lever, Magneto Control
|
6H3-41632-10-00 |
— | ||
|
9
|
9
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.70 |
||
|
10
|
10
90508-29M19-00 Spring, Torsion |
90508-29M19-00 |
US $7.51 |
||
| replacement | |||||
|
10
|
10
90508-29051-00 Spring, Torsion |
90508-29051-00 |
from US $7.51 |
||
|
11
|
11
6H3-41633-00-00 Lever, Magneto Control |
6H3-41633-00-00 |
from US $16.72 |
||
|
12
|
12
90387-06M59-00 Collar |
90387-06M59-00 |
from US $4.53 |
||
|
13
|
13
90119-06M91-00 Bolt, With Washer |
90119-06M91-00 |
from US $4.68 |
||
|
14
|
14
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.95 |
||
|
15
|
15
6F5-41237-00-00 Joint, Link |
6F5-41237-00-00 |
US $9.49 |
||
| replacement | |||||
|
15
|
15
6R5-41237-00-00 Joint, Link |
6R5-41237-00-00 |
from US $6.30 |
||
|
16
|
16
6H3-41636-00-94
Rod, Magneto Control
|
6H3-41636-00-94 |
— | ||
|
17
|
17
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
18
|
18
663-48344-00-00
Cable End, Remote Control
|
663-48344-00-00 |
— | ||
| replacement | |||||
|
18
|
18
6FM-48344-00-00 CABLE END, REMOTE CONTROL |
6FM-48344-00-00 |
from US $2.69 |
||
|
19
|
19
90468-18008-00 Clip |
90468-18008-00 |
from US $1.70 |
||
|
20
|
20
682-41237-50-00 Joint, Link |
682-41237-50-00 |
from US $4.96 |
||
|
21
|
21
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.95 |
||
|
22
|
22
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
23
|
23
6H3-41213-01-00 Cam, Accel |
6H3-41213-01-00 |
from US $13.88 |
||
|
24
|
24
90206-10M04-00 Washer, Wave |
90206-10M04-00 |
from US $1.84 |
||
|
25
|
25
90387-06M60-00 Collar |
90387-06M60-00 |
from US $3.32 |
||
|
26
|
26
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
26
|
26
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
27
|
27
6H3-44120-11-00
Handle Gear Shift Assembly
|
6H3-44120-11-00 |
— | ||
| replacements | |||||
|
27
|
27
6H3-44120-13-00 Handle Gear Shift Assy (L) |
6H3-44120-13-00 |
US $69.49 |
||
|
27
|
27
6H3-44120-14-00 Handle,gear Shift |
6H3-44120-14-00 |
US $133.85 |
||
|
28
|
28
648-42715-00-00 Bushing |
648-42715-00-00 |
from US $6.62 |
||
|
29
|
29
93501-04M02-00 Ball |
93501-04M02-00 |
from US $1.34 |
||
|
30
|
30
90501-12082-00 Spring, Compression |
90501-12082-00 |
from US $1.66 |
||
|
31
|
31
6H3-44117-00-94 Bracket |
6H3-44117-00-94 |
from US $18.86 |
||
|
32
|
32
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
32
|
32
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
32
|
32
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
33
|
33
90386-07M58-00 Bush |
90386-07M58-00 |
from US $2.55 |
||
|
34
|
34
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
35
|
35
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
36
|
36
6H3-44121-01-00 Lever, Shift Rod |
6H3-44121-01-00 |
from US $19.55 |
||
|
37
|
37
90468-18008-00 Clip |
90468-18008-00 |
from US $1.70 |
||
|
38
|
38
90202-07M07-00 Washer, Plate |
90202-07M07-00 |
from US $1.84 |
||
|
39
|
39
688-44122-00-00 Bushing, Shift Rod Lever |
688-44122-00-00 |
from US $2.98 |
||
|
40
|
40
663-48344-00-00
Cable End, Remote Control
|
663-48344-00-00 |
— | ||
| replacement | |||||
|
40
|
40
6FM-48344-00-00 CABLE END, REMOTE CONTROL |
6FM-48344-00-00 |
from US $2.69 |
||
|
41
|
41
6H3-48538-00-00 Clamp, Cable 1 |
6H3-48538-00-00 |
from US $2.98 |
||
