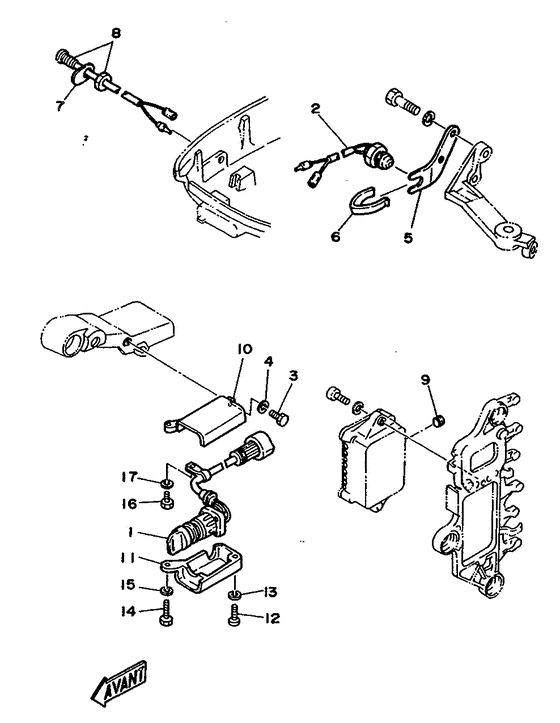

Electrical 3 (MODELE 75AEM) Diagram Yamaha 75 E(M/H/D/T)L
- Year
- 1992
- Model
- 75A
- Model code
- 692
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H3-82510-01-00 Main Switch Assy |
6H3-82510-01-00 |
US $222.44 |
||
| replacements | |||||
|
01
|
01
6H3-82510-03-00 Main Switch Assy |
6H3-82510-03-00 |
from US $123.88 |
||
|
01
|
01
6H3-82510-04-00 MAIN SWITCH ASSY |
6H3-82510-04-00 |
from US $145.76 |
||
|
02
|
02
688-82540-11-00 Neutral Switch Ass'y |
688-82540-11-00 |
US $39.24 |
||
| replacement | |||||
|
02
|
02
688-82540-12-00 Neutral Switch Assy |
688-82540-12-00 |
from US $39.24 |
||
|
03
|
03
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
03
|
03
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
04
|
04
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
04
|
04
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
05
|
05
663-82554-01-00 Stay, Neutral Switch |
663-82554-01-00 |
from US $10.63 |
||
|
06
|
06
663-82555-01-00 Damper, Main Switch 1 |
663-82555-01-00 |
from US $12.89 |
||
|
07
|
07
692-85415-00-00 Mark, Signal Lamp |
692-85415-00-00 |
from US $7.34 |
||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
692-85411-00-00
Overheat Warning Lamp
|
692-85411-00-00 |
— | ||
|
09
|
09
90480-06066-00
Grommet
|
90480-06066-00 |
— | ||
|
10
|
10
697-8252E-00-1D Main Switch Comp |
697-8252E-00-1D |
US $59.55 |
||
|
11
|
11
697-8252E-00-1D Main Switch Comp |
697-8252E-00-1D |
US $59.55 |
||
|
12
|
12
98580-06025-00 Screw, Pan Head |
98580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
12
|
12
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
13
|
13
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
14
|
14
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
15
|
15
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
16
|
16
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
17
|
17
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
