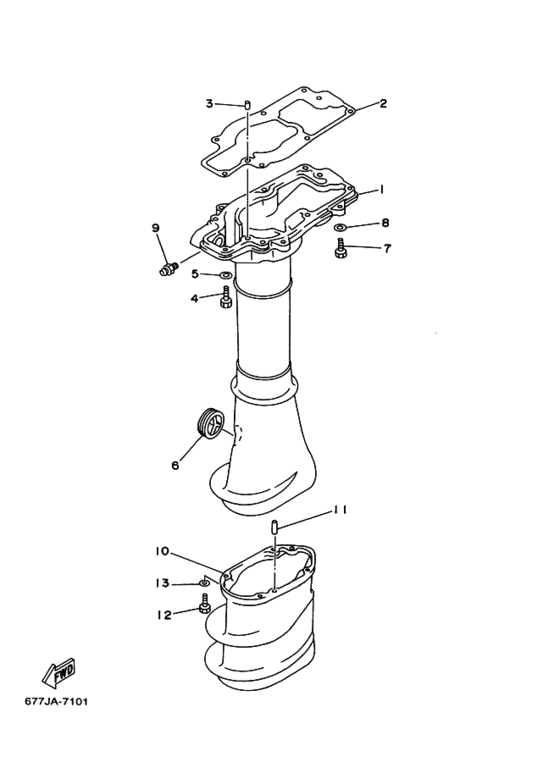

ｱﾂﾊﾟ-ｹ-ｼﾝｸﾞ Diagram Yamaha 8 MHS/L
- Year
- 1998
- Model
- E8D
- Model code
- 677
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
677-45111-01-4D Casing, Upperケーシング，アツパー; |
677-45111-01-4D |
US $377.83 |
||
|
2
|
2
677-45113-A0-00 Gasket, Upper Casingガスケツト，アツパーケーシング; |
677-45113-A0-00 |
US $19.13 |
||
| replacement | |||||
|
2
|
2
677-45113-A1-00 Gasket, Upper Casingガスケツト，アツパーケーシング; |
677-45113-A1-00 |
US $19.13 |
||
|
3
|
3
93605-08041-00 Pin, Dowel |
93605-08041-00 |
US $2.41 |
||
|
4
|
4
970-95060-25-00
Bolt
ボルト; |
970-95060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.35 |
||
|
5
|
5
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
647-45151-01-00 Cover, Upper Casingカバー，アツパーケーシング; |
647-45151-01-00 |
US $4.96 |
||
|
7
|
7
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
7
|
7
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
8
|
8
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
93700-06M03-00 Nipple, Greaseニツプル，グリース; |
93700-06M03-00 |
from US $2.70 |
||
|
10
|
10
647-45211-10-4D Extension |
647-45211-10-4D |
US $210 |
||
|
11
|
11
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.70 |
||
|
12
|
12
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
13
|
13
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
