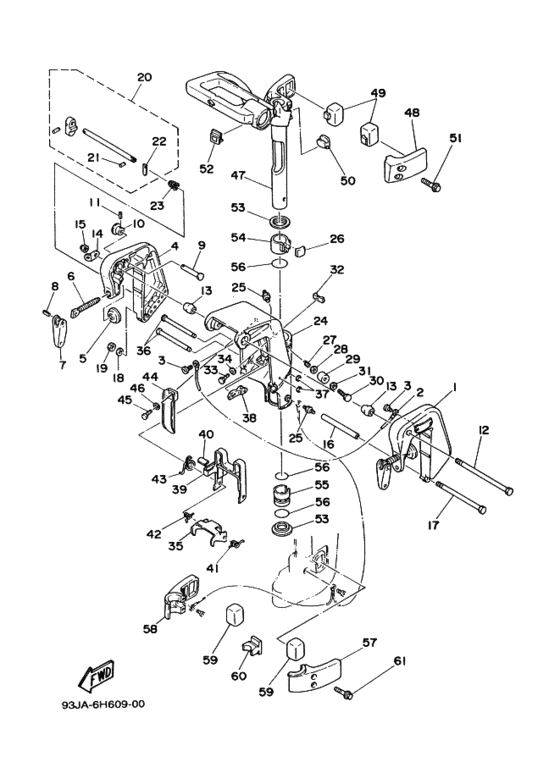

ﾌﾞﾗｹﾂﾄ 1 Diagram Yamaha 8 EMS/L
- Year
- 1993
- Model
- 8C
- Model code
- 6G1
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-43111-02-EK
Bracket, Clamp 1
ブラケツト，クランプ; |
6G1-43111-02-EK |
— | ||
| replacement | |||||
|
1
|
1
6M8-G3111-01-EK
Clamp Bracket
ブラケツト，クランプ; |
6M8-G3111-01-EK |
— | ||
|
2
|
2
6E5-82148-00-00 Wire, Lead 4ワイヤ，リード ４; |
6E5-82148-00-00 |
from US $5.74 |
||
|
3
|
3
97895-06008-00 Screw, Pan Head |
97895-06008-00 |
US $1.56 |
||
| replacements | |||||
|
3
|
3
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
3
|
3
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
4
|
4
6G1-43112-01-EK
Bracket, Clamp 2
ブラケツト，クランプ; |
6G1-43112-01-EK |
— | ||
| replacement | |||||
|
4
|
4
6N0-G3112-00-EK
Clamp Bracket
ブラケツト，クランプ; |
6N0-G3112-00-EK |
— | ||
|
5
|
5
648-43114-01-00 Pad, Transom Clampパツド，トランサムクランプ; |
648-43114-01-00 |
from US $5.40 |
||
|
6
|
6
6G1-43116-01-00 Screw, Transom Clampスクリユ，トランサムクランプ; |
6G1-43116-01-00 |
US $3.83 |
||
| replacements | |||||
|
6
|
6
6N0-G3116-00-00 Screw, Transom Clampスクリユ，トランサムクランプ; |
6N0-G3116-00-00 |
US $3.83 |
||
|
6
|
6
677-43116-01-00 Screw, Transom Clampスクリユ，トランサムクランプ; |
677-43116-01-00 |
from US $3.83 |
||
|
7
|
7
6E0-43118-00-00 Handle, Transom Clpハンドル，トランサムクランプ; |
6E0-43118-00-00 |
US $12.18 |
||
| replacements | |||||
|
7
|
7
6L8-G3118-01-00 Handle Transom Clampハンドル，トランサムクランプ; |
6L8-G3118-01-00 |
US $11.19 |
||
|
7
|
7
6E0-43118-01-00
Handle, Transom Clamp
ハンドル，トランサムクランプ; |
6E0-43118-01-00 |
— | ||
|
7
|
7
6EE-G3118-00-00 Handle, Transom Clampハンドル，トランサムクランプ; |
6EE-G3118-00-00 |
from US $6.89 |
||
|
8
|
8
90254-04M00-00 Pin, Spring Type |
90254-04M00-00 |
US $2.41 |
||
| replacement | |||||
|
8
|
8
90243-04M01-00 Pin |
90243-04M01-00 |
from US $2.41 |
||
|
9
|
9
689-43191-00-00 Shaft, Stopperシヤフト，ストツパ; |
689-43191-00-00 |
from US $8.42 |
||
|
10
|
10
689-43192-01-00 Knob, Stopperノブ，ストツパ; |
689-43192-01-00 |
from US $3.72 |
||
|
11
|
11
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2.02 |
||
|
12
|
12
90101-08M08-00 Bolt |
90101-08M08-00 |
from US $9.92 |
||
| replacement | |||||
|
12
|
12
90101-08869-00 Bolt |
90101-08869-00 |
US $9.92 |
||
|
13
|
13
6G8-43136-00-00 Frictionピース，フリクシヨン; |
6G8-43136-00-00 |
US $10.34 |
||
| replacement | |||||
|
13
|
13
6G1-43136-00-00 Piece, Frictionピース，フリクシヨン; |
6G1-43136-00-00 |
from US $10.34 |
||
|
14
|
14
6A1-43113-01-00 Plate, Clamp Bracketプレート，クランプブラケツト; |
6A1-43113-01-00 |
from US $6.94 |
||
|
15
|
15
95780-08300-00 Nut, Nylon (6J8)ナツト，フランジ; |
95780-08300-00 |
from US $6.40 |
||
|
16
|
16
90387-06M13-00 Collarカラー; |
90387-06M13-00 |
from US $10.20 |
||
|
17
|
17
97395-06135-00 Bolt, Hexagon |
97395-06135-00 |
from US $6.94 |
||
| replacement | |||||
|
17
|
17
97095-06135-00 Bolt |
97095-06135-00 |
from US $6.94 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
20
|
20
6G1-43160-00-00 Tilt Rod Assemblyチルトロツドアセンブリ; |
6G1-43160-00-00 |
US $36.06 |
||
| replacements | |||||
|
20
|
20
6N0-G3160-00-00 Tilt Rod Assyチルトロツドアセンブリ; |
6N0-G3160-00-00 |
US $36.06 |
||
|
20
|
20
6GH-43160-00-00 TILT ROD ASSYチルトロツドアセンブリ; |
6GH-43160-00-00 |
from US $23.07 |
||
|
21
|
21
91690-30008-00 Pin, Spring．ピン，スプリング; |
91690-30008-00 |
from US $1.56 |
||
|
22
|
22
689-43165-00-00 Plate, Tilt Lock．プレート，チルトロツク; |
689-43165-00-00 |
from US $5.95 |
||
| replacement | |||||
|
22
|
22
6EE-G3165-00-00 Plate, Tilt Lock．プレート，チルトロツク; |
6EE-G3165-00-00 |
from US $5.38 |
||
|
23
|
23
90502-10M06-00 Spring, Conical |
90502-10M06-00 |
from US $1.84 |
||
|
24
|
24
6G1-43311-13-EK Bracket, Swivel 1ブラケツト，スウイベル; |
6G1-43311-13-EK |
US $270.79 |
||
| replacement | |||||
|
24
|
24
6GH-43311-00-8D Bracket, Swivelブラケツト，スウイベル; |
6GH-43311-00-8D |
from US $169.24 |
||
|
25
|
25
93700-06M03-00 Nipple, Greaseニツプル，グリース; |
93700-06M03-00 |
from US $2.70 |
||
|
26
|
26
6G1-42528-10-00 Plate, Frictionプレート，フリクシヨン; |
6G1-42528-10-00 |
from US $14.89 |
||
|
27
|
27
90501-18M00-00 Spring, Compression |
90501-18M00-00 |
from US $3.54 |
||
|
28
|
28
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.36 |
||
|
29
|
29
6G1-43373-00-00 Seal, Damperシール，ダンパ; |
6G1-43373-00-00 |
US $6.38 |
||
|
30
|
30
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
30
|
30
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
30
|
30
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.04 |
||
|
31
|
31
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.36 |
||
|
32
|
32
6G1-44532-00-00 Stopper, Upper Mountストツパ，アツパーマウント; |
6G1-44532-00-00 |
US $21.11 |
||
| replacement | |||||
|
32
|
32
6G1-44532-01-00 Stopper, Upper Mountストツパ，アツパーマウント; |
6G1-44532-01-00 |
from US $13.67 |
||
|
33
|
33
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
33
|
33
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
34
|
34
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
35
|
35
6G1-43614-00-00 Plate, Tilt Lockプレート，チルトロツク; |
6G1-43614-00-00 |
US $24.94 |
||
| replacements | |||||
|
35
|
35
6N0-G3614-00-00
Plate, Tilt Lock
プレート，チルトロツク; |
6N0-G3614-00-00 |
— | ||
|
35
|
35
6GH-43614-00-00 Plate,tilt Lockプレート，チルトロツク; |
6GH-43614-00-00 |
from US $26.33 |
||
|
36
|
36
6G1-43659-00-00 Shaft, Reverse Lockシヤフト，リバースロツク; |
6G1-43659-00-00 |
from US $11.05 |
||
|
37
|
37
99080-05600-00 Circlipサークリツプ; |
99080-05600-00 |
from US $1.56 |
||
|
38
|
38
6G1-43615-01-00 Plate, Tilt Lockプレート，チルトロツク; |
6G1-43615-01-00 |
US $8.08 |
||
| replacement | |||||
|
38
|
38
6G1-43615-02-00 Plate, Tilt Lockプレート，チルトロツク; |
6G1-43615-02-00 |
from US $8.08 |
||
|
39
|
39
6G1-43681-00-00 Lever, Shallow Water Drive 1レバー，シヤロウオータドライブ; |
6G1-43681-00-00 |
from US $69.49 |
||
|
40
|
40
6G1-43318-01-00 Coverカバー; |
6G1-43318-01-00 |
from US $5.95 |
||
|
41
|
41
90508-10M15-00 Spring, Torsionスプリング，トーシヨン; |
90508-10M15-00 |
from US $3.68 |
||
|
42
|
42
90508-10M16-00 Spring, Torsionスプリング，トーシヨン; |
90508-10M16-00 |
from US $3.68 |
||
|
43
|
43
90508-14M17-00 Spring, Torsionスプリング，トーシヨン; |
90508-14M17-00 |
from US $6.52 |
||
|
44
|
44
6G1-42731-00-EL Carrying Handleキヤリングハンドル; |
6G1-42731-00-EL |
US $34.14 |
||
| replacements | |||||
|
44
|
44
6N0-G2731-00-00 Carrying Handleキヤリングハンドル; |
6N0-G2731-00-00 |
US $34.14 |
||
|
44
|
44
6GH-42731-00-00 Carrying Handleキヤリングハンドル; |
6GH-42731-00-00 |
US $33.30 |
||
|
45
|
45
97395-08016-00 Bolt |
97395-08016-00 |
US $1.28 |
||
| replacements | |||||
|
45
|
45
97095-08016-00 Bolt |
97095-08016-00 |
US $1.28 |
||
|
45
|
45
97080-08016-00 Bolt |
97080-08016-00 |
from US $3.26 |
||
|
45
|
45
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
46
|
46
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.36 |
||
|
47
|
47
6G1-42511-04-EK
Bracket, Steering (6G1-42511-03-Ek)
ブラケツト，ステアリング; |
6G1-42511-04-EK |
— | ||
|
48
|
48
6G1-44511-00-EK
Cover, Upper Mt
カバー，アツパーマウントラバー; |
6G1-44511-00-EK |
— | ||
|
49
|
49
6G1-44514-00-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
6G1-44514-00-00 |
US $10.77 |
||
| replacements | |||||
|
49
|
49
6N0-G4514-00-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
6N0-G4514-00-00 |
US $10.77 |
||
|
49
|
49
6GH-44514-00-00
Mount,damper Upper
マウントダンパ，アツパーサイド; |
6GH-44514-00-00 |
— | ||
|
49
|
49
6GH-44514-01-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
6GH-44514-01-00 |
US $12.26 |
||
|
49
|
49
6GH-44514-01-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; |
6GH-44514-01-00 |
US $12.26 |
||
|
50
|
50
6G1-44516-00-00 Mount Damper, Upper Frontマウントダンパ，アツパーフロント; |
6G1-44516-00-00 |
US $8.08 |
||
|
51
|
51
958-95060-35-00
Bolt, Flange
|
958-95060-35-00 |
— | ||
| replacement | |||||
|
51
|
51
95880-06035-00 Bolt, Flange |
95880-06035-00 |
from US $1.36 |
||
|
52
|
52
6G1-42551-00-00 Grommet |
6G1-42551-00-00 |
US $8.50 |
||
|
53
|
53
6G1-42535-00-00 Washer, Thrustワツシヤ，スラスト; |
6G1-42535-00-00 |
from US $18.14 |
||
|
54
|
54
6G1-42537-10-00 Bushing, Pivot Shaftブツシング，ピボツトシヤフト; |
6G1-42537-10-00 |
from US $26.92 |
||
|
55
|
55
6G1-42538-01-00 Bushing, Pivot Shaftブツシング，ピボツトシヤフト; |
6G1-42538-01-00 |
US $26.21 |
||
|
56
|
56
93210-30M31-00 O-Ring |
93210-30M31-00 |
from US $9.07 |
||
|
57
|
57
6G1-44551-01-EK
Housing, Lwr Mount Lower Mount
ハウジング，ロワーマウントラバー; |
6G1-44551-01-EK |
— | ||
| replacement | |||||
|
57
|
57
6N0-G4551-00-EK
Housing, Lower Mount
ハウジング，ロワーマウントラバー; |
6N0-G4551-00-EK |
— | ||
|
58
|
58
6G1-44552-02-EK Housing, Lwr Mount Rubberハウジング，ロワーマウントラバー; |
6G1-44552-02-EK |
US $60.65 |
||
| replacement | |||||
|
58
|
58
6N0-G4552-00-EK Housing, Lower Mountハウジング，ロワーマウントラバー; |
6N0-G4552-00-EK |
US $60.65 |
||
|
59
|
59
6G1-44555-00-00 Mount Damper, Lower Sideマウントダンパ，ロワーサイド; |
6G1-44555-00-00 |
US $11.05 |
||
| replacements | |||||
|
59
|
59
6N0-G4555-A0-00 Mount Damper, Lower Sideマウントダンパ，ロワーサイド; |
6N0-G4555-A0-00 |
US $11.05 |
||
|
59
|
59
6GH-44555-01-00 Mount Damper, Lower Sideマウントダンパ，ロワーサイド; |
6GH-44555-01-00 |
US $29.66 |
||
|
60
|
60
6G1-44557-00-00 Mount Damper, Lower Frontマウントダンパ，ロワーフロント; |
6G1-44557-00-00 |
US $10.63 |
||
| replacements | |||||
|
60
|
60
6N0-G4557-A0-00 Mount Damper, Lower Frontマウントダンパ，ロワーフロント; |
6N0-G4557-A0-00 |
US $10.63 |
||
|
60
|
60
6GH-44557-01-00 Mount Damper, Lower Frontマウントダンパ，ロワーフロント; |
6GH-44557-01-00 |
US $20.05 |
||
|
61
|
61
958-95060-35-00
Bolt, Flange
|
958-95060-35-00 |
— | ||
| replacement | |||||
|
61
|
61
95880-06035-00 Bolt, Flange |
95880-06035-00 |
from US $1.36 |
||
