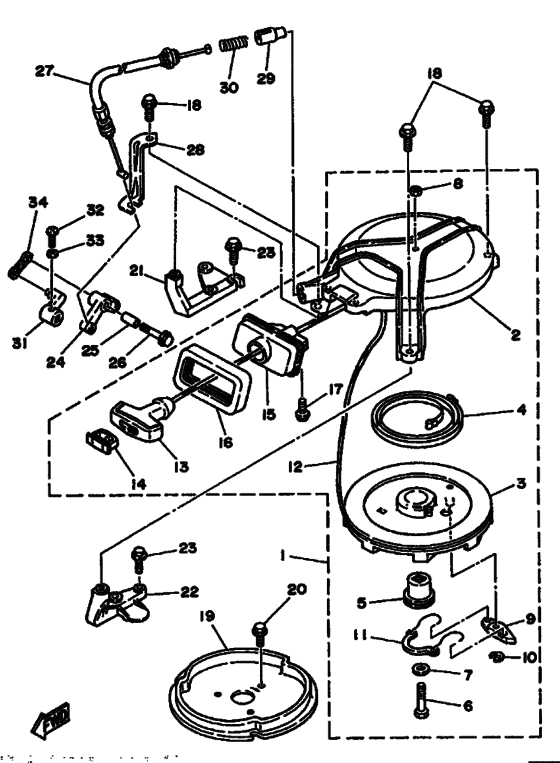

Starter Diagram Yamaha 8 EMS/L
- Year
- 1996
- Model
- 8C
- Model code
- 6G1
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-15710-81-00 Starter Assembly |
6G1-15710-81-00 |
US $306.72 |
||
| replacements | |||||
|
1
|
1
6M8-E5710-03-00 Starter Assy |
6M8-E5710-03-00 |
US $306.72 |
||
|
1
|
1
6GH-15710-00-00
Starter Asy
|
6GH-15710-00-00 |
— | ||
|
1
|
1
6GH-15710-02-00 Starter Assy |
6GH-15710-02-00 |
US $704.90 |
||
|
2
|
2
6G1-15711-80-94
Case, Starter
|
6G1-15711-80-94 |
— | ||
| replacement | |||||
|
2
|
2
6N0-E5711-80-94
Case, Starter
|
6N0-E5711-80-94 |
— | ||
|
3
|
3
6G1-15714-00-00 Drum, Sheave |
6G1-15714-00-00 |
US $79.03 |
||
| replacements | |||||
|
3
|
3
6M8-E5714-00-00 Drum, Sheave |
6M8-E5714-00-00 |
US $79.03 |
||
|
3
|
3
6GH-15714-00-00 DRUM, SHEAVE |
6GH-15714-00-00 |
from US $44.86 |
||
|
4
|
4
90510-08M03-00 Spring, Spiral |
90510-08M03-00 |
from US $35.24 |
||
|
5
|
5
6G1-15717-00-00 Shaft, Starter |
6G1-15717-00-00 |
from US $28.62 |
||
|
6
|
6
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
7
|
7
90201-06M30-00 Washer, Plate |
90201-06M30-00 |
from US $1.70 |
||
|
8
|
8
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
9
|
9
677-15741-01-00 Pawl, Drive |
677-15741-01-00 |
from US $5.06 |
||
|
10
|
10
93430-06M02-00 Circlip |
93430-06M02-00 |
from US $1.36 |
||
|
11
|
11
6G1-15705-00-00 Spring, Drive Pawl |
6G1-15705-00-00 |
from US $10.34 |
||
|
13
|
13
6G1-15755-00-00 Handle, Starter |
6G1-15755-00-00 |
from US $8.76 |
||
|
14
|
14
6G1-15779-00-00 Cover |
6G1-15779-00-00 |
from US $3.68 |
||
|
15
|
15
6G1-15758-00-00 Guide, Rope |
6G1-15758-00-00 |
US $45.73 |
||
| replacements | |||||
|
15
|
15
6N0-E5758-01-00 Guide, Rope |
6N0-E5758-01-00 |
US $45.73 |
||
|
15
|
15
6GH-15758-00-00 Guide, Rope |
6GH-15758-00-00 |
US $88.60 |
||
|
16
|
16
6G1-15762-00-00 Seal, Rubber 2 |
6G1-15762-00-00 |
from US $26.78 |
||
|
17
|
17
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
17
|
17
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
17
|
17
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
17
|
17
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
18
|
18
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
18
|
18
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
18
|
18
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
18
|
18
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
19
|
19
6G1-15723-00-94 Pulley, Starter |
6G1-15723-00-94 |
US $34.14 |
||
| replacement | |||||
|
19
|
19
6N0-E5723-00-94 Pulley, Starter |
6N0-E5723-00-94 |
US $34.14 |
||
|
20
|
20
90105-06M29-00 Bolt, Flange |
90105-06M29-00 |
from US $2.41 |
||
|
21
|
21
6G1-15771-00-94 Stay 1 |
6G1-15771-00-94 |
US $21.25 |
||
| replacements | |||||
|
21
|
21
6N0-E5771-00-94 Stay 1 |
6N0-E5771-00-94 |
US $21.25 |
||
|
21
|
21
6GH-15771-00-00 STAY 1 |
6GH-15771-00-00 |
US $25.31 |
||
|
22
|
22
6G1-15772-00-94 Stay 2 |
6G1-15772-00-94 |
US $21.25 |
||
| replacement | |||||
|
22
|
22
6GH-15772-00-00 STAY 2 |
6GH-15772-00-00 |
from US $13.22 |
||
|
23
|
23
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
23
|
23
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
23
|
23
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
24
|
24
6G1-15746-81-00 Arm |
6G1-15746-81-00 |
from US $15.16 |
||
|
25
|
25
6G1-15764-00-00 Collar 1 |
6G1-15764-00-00 |
from US $8.22 |
||
|
26
|
26
95895-06025-00 Bolt, Flange |
95895-06025-00 |
US $1.42 |
||
| replacement | |||||
|
26
|
26
95D95-06025-00 Bolt, Flange Deep Re |
95D95-06025-00 |
from US $1.07 |
||
|
27
|
27
6G1-15770-81-00 Cable Comp., Starter Stop |
6G1-15770-81-00 |
US $22.81 |
||
| replacements | |||||
|
27
|
27
6N0-E5770-80-00 Cable Comp., Starter Stop |
6N0-E5770-80-00 |
US $22.81 |
||
|
27
|
27
6N0-E5770-90-00 Cable Comp., Starter Stop |
6N0-E5770-90-00 |
US $22.81 |
||
|
27
|
27
6GH-15770-00-00 Cable Comp, Starter Stop |
6GH-15770-00-00 |
US $23.69 |
||
|
27
|
27
6GH-15770-00-00 Cable Comp, Starter Stop |
6GH-15770-00-00 |
US $23.69 |
||
|
28
|
28
6G1-15774-81-00 Stay 4 |
6G1-15774-81-00 |
from US $11.76 |
||
|
29
|
29
656-15748-00-00 Plunger, Starter Stop |
656-15748-00-00 |
from US $11.33 |
||
|
30
|
30
90501-10227-00 Spring, Compression |
90501-10227-00 |
from US $2.55 |
||
|
31
|
31
6G1-44125-80-00 Lever, Shift Rod |
6G1-44125-80-00 |
from US $15.87 |
||
|
32
|
32
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
32
|
32
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
33
|
33
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
34
|
34
6G1-15747-80-00 Link |
6G1-15747-80-00 |
from US $3.83 |
||
