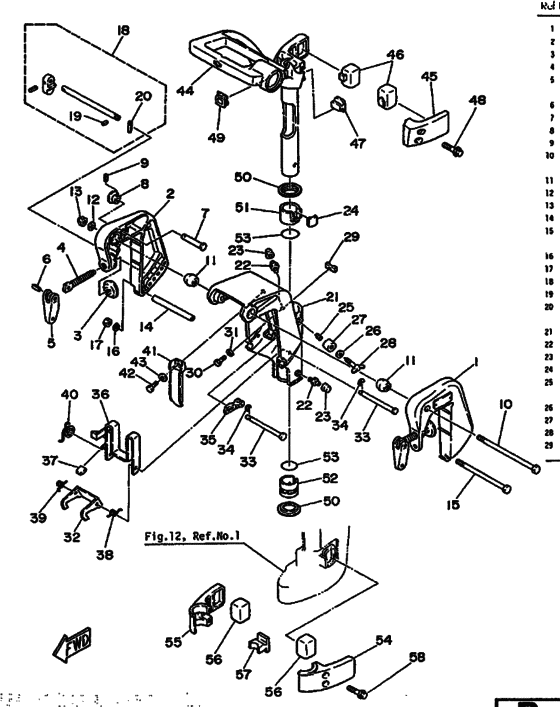

Bracket Diagram Yamaha 8 EMS/L
- Year
- 1987
- Model
- 8C
- Model code
- 6G1
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-43111-00-EJ
Bracket, Clamp
|
6G1-43111-00-EJ |
— | ||
| replacement | |||||
|
1
|
1
999-99017-66-00
Clamp Bracket Assy(6G1 Ej)
|
999-99017-66-00 |
— | ||
|
2
|
2
6G1-43112-00-EJ
Bracket, Clamp
|
6G1-43112-00-EJ |
— | ||
| replacements | |||||
|
2
|
2
6G1-43112-09-EJ
Bracket, Clamp 2
|
6G1-43112-09-EJ |
— | ||
|
2
|
2
6GH-43112-00-8D BRACKET, CLAMP 2 |
6GH-43112-00-8D |
from US $97.67 |
||
|
3
|
3
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.40 |
||
|
4
|
4
6G1-43116-00-00 Screw, Transom Clamp |
6G1-43116-00-00 |
US $3.83 |
||
| replacements | |||||
|
4
|
4
6N0-G3116-00-00 Screw, Transom Clamp |
6N0-G3116-00-00 |
US $3.83 |
||
|
4
|
4
677-43116-01-00 Screw, Transom Clamp |
677-43116-01-00 |
from US $3.83 |
||
|
5
|
5
6E0-43118-00-00 Handle, Transom Clp |
6E0-43118-00-00 |
US $12.18 |
||
| replacements | |||||
|
5
|
5
6L8-G3118-01-00 Handle Transom Clamp |
6L8-G3118-01-00 |
US $11.19 |
||
|
5
|
5
6E0-43118-01-00
Handle, Transom Clamp
|
6E0-43118-01-00 |
— | ||
|
5
|
5
6EE-G3118-00-00 Handle, Transom Clamp |
6EE-G3118-00-00 |
from US $6.89 |
||
|
6
|
6
90254-04M00-00 Pin, Spring Type |
90254-04M00-00 |
US $2.41 |
||
| replacement | |||||
|
6
|
6
90243-04M01-00 Pin |
90243-04M01-00 |
from US $2.41 |
||
|
7
|
7
689-43191-00-00 Shaft, Stopper |
689-43191-00-00 |
from US $8.42 |
||
|
8
|
8
689-43192-01-00 Knob, Stopper |
689-43192-01-00 |
from US $3.72 |
||
|
9
|
9
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2.02 |
||
|
10
|
10
901-0108M-73-00 Bolt |
901-0108M-73-00 |
US $13.36 |
||
|
11
|
11
6G1-43136-00-00 Piece, Friction |
6G1-43136-00-00 |
from US $10.34 |
||
|
12
|
12
92990-08800-00
Washer
|
92990-08800-00 |
— | ||
|
13
|
13
90185-08M00-00 Nut, Self-Locking |
90185-08M00-00 |
US $6.52 |
||
| replacement | |||||
|
13
|
13
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.40 |
||
|
14
|
14
903-8706M-28-00 Collar |
903-8706M-28-00 |
US $10.20 |
||
| replacement | |||||
|
14
|
14
90387-06M13-00 Collar |
90387-06M13-00 |
from US $10.20 |
||
|
15
|
15
97395-06135-00 Bolt, Hexagon |
97395-06135-00 |
from US $6.94 |
||
| replacement | |||||
|
15
|
15
97095-06135-00 Bolt |
97095-06135-00 |
from US $6.94 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
18
|
18
6G1-43160-00-00 Tilt Rod Assembly |
6G1-43160-00-00 |
US $36.06 |
||
| replacements | |||||
|
18
|
18
6N0-G3160-00-00 Tilt Rod Assy |
6N0-G3160-00-00 |
US $36.06 |
||
|
18
|
18
6GH-43160-00-00 TILT ROD ASSY |
6GH-43160-00-00 |
from US $23.07 |
||
|
20
|
20
656-43165-01-00 Plate, Tilt Lock |
656-43165-01-00 |
US $5.95 |
||
| replacements | |||||
|
20
|
20
6EE-G3165-00-00 Plate, Tilt Lock |
6EE-G3165-00-00 |
from US $5.38 |
||
|
20
|
20
689-43165-00-00 Plate, Tilt Lock |
689-43165-00-00 |
from US $5.95 |
||
|
21
|
21
6G1-43311-11-1E
Bracket, Swivel
|
6G1-43311-11-1E |
— | ||
|
22
|
22
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
22
|
22
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.70 |
||
|
23
|
23
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.68 |
||
|
24
|
24
6G1-42528-00-00 Plate, Friction |
6G1-42528-00-00 |
from US $17.32 |
||
|
25
|
25
90501-18M00-00 Spring, Compression |
90501-18M00-00 |
from US $3.54 |
||
|
26
|
26
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
27
|
27
6G1-43373-00-00 Seal, Damper |
6G1-43373-00-00 |
US $6.38 |
||
|
28
|
28
6G1-42529-00-00 Screw, Friction Piece |
6G1-42529-00-00 |
from US $13.88 |
||
|
29
|
29
6G1-44532-00-00 Stopper, Upper Mount |
6G1-44532-00-00 |
US $21.11 |
||
| replacement | |||||
|
29
|
29
6G1-44532-01-00 Stopper, Upper Mount |
6G1-44532-01-00 |
from US $13.67 |
||
|
30
|
30
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
30
|
30
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
32
|
32
6G1-43614-00-00 Plate, Tilt Lock |
6G1-43614-00-00 |
US $24.94 |
||
| replacements | |||||
|
32
|
32
6N0-G3614-00-00
Plate, Tilt Lock
|
6N0-G3614-00-00 |
— | ||
|
32
|
32
6GH-43614-00-00 Plate,tilt Lock |
6GH-43614-00-00 |
from US $26.33 |
||
|
33
|
33
6G1-43659-00-00 Shaft, Reverse Lock |
6G1-43659-00-00 |
from US $11.05 |
||
|
34
|
34
93430-05027-00 Circlip |
93430-05027-00 |
from US $1.56 |
||
| replacement | |||||
|
34
|
34
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
35
|
35
6G1-43615-01-00 Plate, Tilt Lock |
6G1-43615-01-00 |
US $8.08 |
||
| replacement | |||||
|
35
|
35
6G1-43615-02-00 Plate, Tilt Lock |
6G1-43615-02-00 |
from US $8.08 |
||
|
36
|
36
6G1-43681-00-00 Lever, Shallow Water Drive 1 |
6G1-43681-00-00 |
from US $69.49 |
||
|
37
|
37
6G1-43318-01-00 Cover |
6G1-43318-01-00 |
from US $5.95 |
||
|
38
|
38
90508-10M15-00 Spring, Torsion |
90508-10M15-00 |
from US $3.68 |
||
|
39
|
39
90508-10M16-00 Spring, Torsion |
90508-10M16-00 |
from US $3.68 |
||
|
40
|
40
90508-14M17-00 Spring, Torsion |
90508-14M17-00 |
from US $6.52 |
||
|
41
|
41
6G1-42731-00-36 Carrying, Handle |
6G1-42731-00-36 |
US $34.14 |
||
| replacements | |||||
|
41
|
41
6N0-G2731-00-00 Carrying Handle |
6N0-G2731-00-00 |
US $34.14 |
||
|
41
|
41
6GH-42731-00-00 Carrying Handle |
6GH-42731-00-00 |
US $33.30 |
||
|
42
|
42
97395-08016-00 Bolt |
97395-08016-00 |
US $1.28 |
||
| replacements | |||||
|
42
|
42
97095-08016-00 Bolt |
97095-08016-00 |
US $1.28 |
||
|
42
|
42
97080-08016-00 Bolt |
97080-08016-00 |
from US $3.26 |
||
|
42
|
42
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
43
|
43
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
44
|
44
6G1-42511-03-EJ
Bracket, Steering
|
6G1-42511-03-EJ |
— | ||
| replacement | |||||
|
44
|
44
6G1-42511-04-EJ
Bracket, Steering
|
6G1-42511-04-EJ |
— | ||
|
45
|
45
6G1-44511-00-EJ
Cover, Upper Mount
|
6G1-44511-00-EJ |
— | ||
|
46
|
46
6G1-44514-00-00 Mount Damper, Upper Side |
6G1-44514-00-00 |
US $10.77 |
||
| replacements | |||||
|
46
|
46
6N0-G4514-00-00 Mount Damper, Upper Side |
6N0-G4514-00-00 |
US $10.77 |
||
|
46
|
46
6GH-44514-00-00
Mount,damper Upper
|
6GH-44514-00-00 |
— | ||
|
46
|
46
6GH-44514-01-00 Mount Damper, Upper Side |
6GH-44514-01-00 |
US $12.26 |
||
|
46
|
46
6GH-44514-01-00 Mount Damper, Upper Side |
6GH-44514-01-00 |
US $12.26 |
||
|
47
|
47
6G1-44516-00-00 Mount Damper, Upper Front |
6G1-44516-00-00 |
US $8.08 |
||
|
49
|
49
6G1-42551-00-00 Grommet |
6G1-42551-00-00 |
US $8.50 |
||
|
50
|
50
6G1-42535-00-00 Washer, Thrust |
6G1-42535-00-00 |
from US $18.14 |
||
|
51
|
51
6G1-42537-00-00 Bushing, Pivot ShaftBushing, pivot shaft 1 |
6G1-42537-00-00 |
US $25.36 |
||
|
52
|
52
6G1-42538-00-00
Bushing, Pivot Shft 2
|
6G1-42538-00-00 |
— | ||
|
53
|
53
93210-30M31-00 O-Ring |
93210-30M31-00 |
from US $9.07 |
||
|
54
|
54
6G1-44551-01-EJ Housing, Lower Mount Rubber |
6G1-44551-01-EJ |
US $60.65 |
||
| replacements | |||||
|
54
|
54
6N0-G4551-00-4D Housing, Lower Mount Rubber 1 |
6N0-G4551-00-4D |
US $60.65 |
||
|
54
|
54
6N0-G4551-00-EJ Housing Lower Mount 1 |
6N0-G4551-00-EJ |
US $60.65 |
||
|
54
|
54
6GH-44551-00-8D HOUSING,LWR,MOUNT |
6GH-44551-00-8D |
from US $38.01 |
||
|
55
|
55
6G1-44552-01-EJ
Housing, Lower Mount Rubber
|
6G1-44552-01-EJ |
— | ||
| replacement | |||||
|
55
|
55
6N0-G4552-00-EJ
Housing Lower Mount 2
|
6N0-G4552-00-EJ |
— | ||
|
56
|
56
6G1-44555-00-00 Mount Damper, Lower Side |
6G1-44555-00-00 |
US $11.05 |
||
| replacements | |||||
|
56
|
56
6N0-G4555-A0-00 Mount Damper, Lower Side |
6N0-G4555-A0-00 |
US $11.05 |
||
|
56
|
56
6GH-44555-01-00 Mount Damper, Lower Side |
6GH-44555-01-00 |
US $29.66 |
||
|
57
|
57
6G1-44557-00-00 Mount Damper, Lower Front |
6G1-44557-00-00 |
US $10.63 |
||
| replacements | |||||
|
57
|
57
6N0-G4557-A0-00 Mount Damper, Lower Front |
6N0-G4557-A0-00 |
US $10.63 |
||
|
57
|
57
6GH-44557-01-00 Mount Damper, Lower Front |
6GH-44557-01-00 |
US $20.05 |
||
|
58
|
58
958-95060-35-00
Bolt, Flange
|
958-95060-35-00 |
— | ||
| replacement | |||||
|
58
|
58
95880-06035-00 Bolt, Flange |
95880-06035-00 |
from US $1.36 |
||
