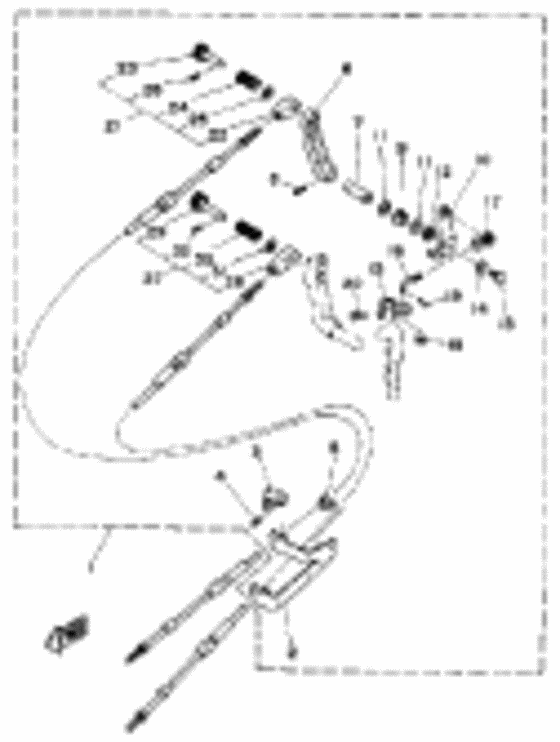

Remote control attachment Diagram Yamaha 8 S/L
- Year
- 1988
- Model
- 8
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-48501-50-00
Remote Control Attachment Assy
|
6G1-48501-50-00 |
— | ||
|
2
|
2
6G1-48531-50-00 Bracket, Remote Control 1 |
6G1-48531-50-00 |
from US $55.26 |
||
|
3
|
3
682-48538-50-00 Clamp, Cable 1 |
682-48538-50-00 |
from US $5.67 |
||
|
4
|
4
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
5
|
5
90105-06M23-00 Bolt Flange |
90105-06M23-00 |
from US $2.05 |
||
|
6
|
6
6G1-41631-50-EK
Lever, Magneto Control
|
6G1-41631-50-EK |
— | ||
|
7
|
7
6G1-41635-50-00 Shaft, Link Connecting |
6G1-41635-50-00 |
from US $13.88 |
||
|
8
|
8
91690-40016-00 Pin, Spring |
91690-40016-00 |
from US $1.84 |
||
|
9
|
9
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
10
|
10
6G1-41632-50-94 Lever, Magneto Control |
6G1-41632-50-94 |
from US $104.73 |
||
| replacement | |||||
|
10
|
10
6G1-41632-50-00 Lever, Magneto Control |
6G1-41632-50-00 |
from US $65.83 |
||
|
11
|
11
90202-10024-00 Washer, Plate |
90202-10024-00 |
from US $3.26 |
||
|
12
|
12
90206-10M12-00 Washer, Wave |
90206-10M12-00 |
from US $16.70 |
||
|
13
|
13
97313-05014-00
Bolt, Hexagon
|
97313-05014-00 |
— | ||
|
14
|
14
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
15
|
15
6G1-41633-50-94
Lever, Magneto Control
|
6G1-41633-50-94 |
— | ||
|
16
|
16
6G1-41238-50-00
Joint, Link
|
6G1-41238-50-00 |
— | ||
|
17
|
17
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.82 |
||
|
18
|
18
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
|
19
|
19
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
20
|
20
97780-50520-00 Screw, Tapping |
97780-50520-00 |
US $1.56 |
||
| replacement | |||||
|
20
|
20
97780-50620-00 Screw, Tapping |
97780-50620-00 |
from US $1.56 |
||
|
21
|
21
682-48340-50-00 Cable End Assy (Throttle) |
682-48340-50-00 |
from US $50.11 |
||
|
22
|
22
682-48344-50-00
Cable End, Remote Control 1
|
682-48344-50-00 |
— | ||
|
23
|
23
617-48361-90-00 Hook, Cable |
617-48361-90-00 |
US $21.96 |
||
| replacement | |||||
|
23
|
23
617-48361-91-00 Hook, Cable |
617-48361-91-00 |
from US $21.96 |
||
|
24
|
24
90501-10264-00 Spring, Compression |
90501-10264-00 |
from US $1.70 |
||
|
25
|
25
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
26
|
26
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
27
|
27
682-48330-50-00 Cable End Assy (Shift) |
682-48330-50-00 |
from US $50.11 |
||
|
28
|
28
682-48346-50-00
Cable End, Remote Control 3
|
682-48346-50-00 |
— | ||
|
29
|
29
617-48331-91-00 Hook, Cable |
617-48331-91-00 |
from US $22.10 |
||
|
30
|
30
90501-10071-00 Spring, Compression |
90501-10071-00 |
from US $2.55 |
||
|
31
|
31
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
32
|
32
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
