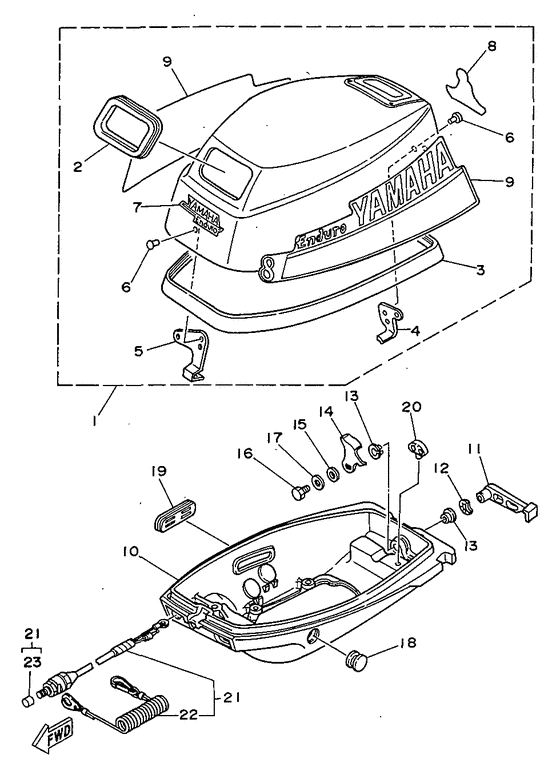

Cowling Diagram Yamaha 8 MHS/L
- Year
- 1998
- Model
- E8D
- Model code
- 677
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
677-42610-H0-4D
Top Cowling Assy
|
677-42610-H0-4D |
— | ||
|
02
|
02
677-15761-01-00 Seal, Rubber 1 |
677-15761-01-00 |
US $18.42 |
||
|
03
|
03
6G1-42615-00-00 Seal |
6G1-42615-00-00 |
from US $36.05 |
||
|
04
|
04
677-42647-00-00 Holder, Clamp Band |
677-42647-00-00 |
US $8.22 |
||
|
05
|
05
677-42651-02-00 Hook |
677-42651-02-00 |
US $9.21 |
||
|
06
|
06
90266-04M04-00 Rivet |
90266-04M04-00 |
from US $1.84 |
||
|
07
|
07
677-42677-H0-00
Graphic, Front
|
677-42677-H0-00 |
— | ||
|
08
|
08
677-42678-H0-00
Graphic, Rear
|
677-42678-H0-00 |
— | ||
|
09
|
09
677-W0070-H0-00 Graphic Set |
677-W0070-H0-00 |
US $55.22 |
||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
677-42711-03-4D
Cowling, Bottom
|
677-42711-03-4D |
— | ||
|
11
|
11
677-42815-44-4D
Levier, Presse
|
677-42815-44-4D |
— | ||
|
12
|
12
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.36 |
||
|
13
|
13
90386-12069-00 Bush |
90386-12069-00 |
from US $1.84 |
||
|
14
|
14
689-42816-00-00 Lever, Clamp |
689-42816-00-00 |
from US $17.14 |
||
|
15
|
15
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
16
|
16
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
677-42724-00-00 Grommet |
677-42724-00-00 |
US $5.53 |
||
|
19
|
19
677-42725-00-00 Grommet |
677-42725-00-00 |
US $5.24 |
||
|
20
|
20
606-42591-00-00 Holder Share Pin |
606-42591-00-00 |
from US $6.94 |
||
|
21
|
21
677-82575-20-00 Engine Stop Switch Assy |
677-82575-20-00 |
US $108.18 |
||
| replacement | |||||
|
21
|
21
699-82575-09-00 Engine Stop Switch Assy |
699-82575-09-00 |
from US $108.18 |
||
|
22
|
22
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
23
|
23
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
