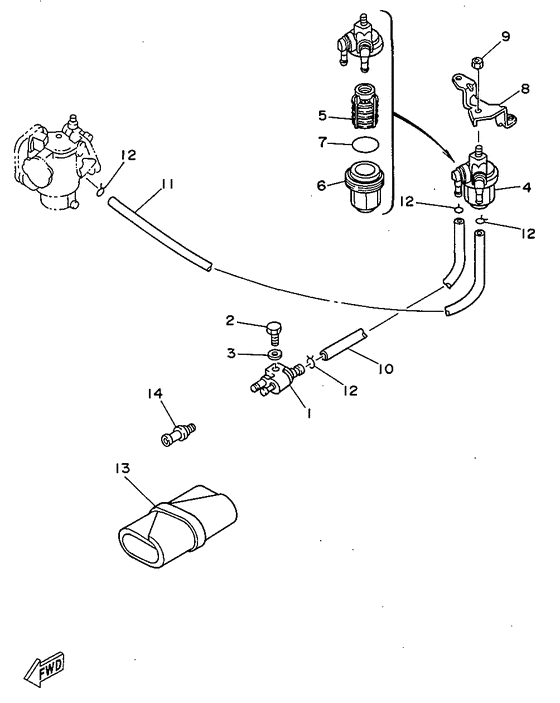

Fuel Diagram Yamaha 8 MHS/L
- Year
- 1998
- Model
- E8D
- Model code
- 677
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
01
|
01
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $29.47 |
||
|
01
|
01
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $30.64 |
||
|
02
|
02
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
02
|
02
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
03
|
03
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
04
|
04
61N-24560-00-00 Filter Assy |
61N-24560-00-00 |
US $42.69 |
||
| replacement | |||||
|
04
|
04
61N-24560-10-00 Filter Assy |
61N-24560-10-00 |
from US $25.26 |
||
|
05
|
05
61N-24563-00-00 Element, Filter |
61N-24563-00-00 |
from US $7.65 |
||
| replacement | |||||
|
05
|
05
61N-24563-10-00 Element, Filter |
61N-24563-10-00 |
from US $7.65 |
||
|
06
|
06
61N-24521-00-00 Cup, Filter |
61N-24521-00-00 |
from US $13.46 |
||
|
07
|
07
93210-32738-00 O-Ring |
93210-32738-00 |
from US $1.35 |
||
|
08
|
08
6K3-24566-00-00 Bracket, Filter |
6K3-24566-00-00 |
US $10.20 |
||
|
09
|
09
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
09
|
09
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
09
|
09
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
10
|
10
90445-09083-00 Hose (L155) |
90445-09083-00 |
from US $6.52 |
||
| replacements | |||||
|
10
|
10
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.06 |
||
|
10
|
10
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.40 |
||
|
11
|
11
90445-09163-00
Hose (L235)
|
90445-09163-00 |
— | ||
| replacement | |||||
|
11
|
11
90445-09010-00
Hose (L260)
|
90445-09010-00 |
— | ||
|
12
|
12
904-67080-07-00 Clip |
904-67080-07-00 |
US $1.70 |
||
| replacement | |||||
|
12
|
12
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
13
|
13
656-W2810-02-00 Tool Kit |
656-W2810-02-00 |
US $40.62 |
||
| replacements | |||||
|
13
|
13
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
13
|
13
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
14
|
14
626-28193-01-94 Plug, Water CheckAp d:15 |
626-28193-01-94 |
from US $11.75 |
||
| replacement | |||||
|
14
|
14
626-28193-01-00 Plug, Water CheckAp d:15 |
626-28193-01-00 |
from US $15.17 |
||
|
14
|
14
6E0-28193-00-94 Plug, Water CheckAp d:12.5 |
6E0-28193-00-94 |
US $9.35 |
||
| replacement | |||||
|
14
|
14
6E0-28193-00-00 Plug, Water CheckAp d:12.5 |
6E0-28193-00-00 |
from US $9.35 |
||
