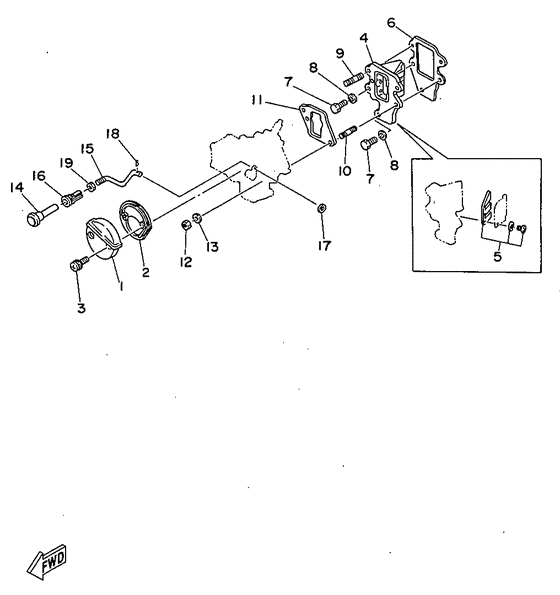

Intake Diagram Yamaha 8 MHS/L
- Year
- 1998
- Model
- E8D
- Model code
- 677
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
677-14431-00-00 Silencer, Intake 1 |
677-14431-00-00 |
US $11.76 |
||
|
02
|
02
677-14441-00-00 Silencer, Intake 2 |
677-14441-00-00 |
US $7.65 |
||
|
03
|
03
97980-05220-00
Screw, With Washer
|
97980-05220-00 |
— | ||
|
04
|
04
677-13610-00-00 Reed Valve Assy |
677-13610-00-00 |
US $87.32 |
||
|
05
|
05
677-W0004-00-00 Reed Set |
677-W0004-00-00 |
US $27.49 |
||
|
06
|
06
677-13621-00-00
Gasket, Valve Seat
|
677-13621-00-00 |
— | ||
| replacements | |||||
|
06
|
06
677-13621-A1-00 Gasket, Valve Seat |
677-13621-A1-00 |
US $10.20 |
||
|
06
|
06
677-13621-A0-00 Gasket, Valve Seat |
677-13621-A0-00 |
US $10.20 |
||
|
07
|
07
97313-06018-00 Bolt, Hex |
97313-06018-00 |
from US $1.62 |
||
| replacement | |||||
|
07
|
07
97013-06018-00 Bolt |
97013-06018-00 |
from US $1.57 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
09
|
09
956-27063-25-00 Bolt, Stud(6E0) |
956-27063-25-00 |
from US $2.74 |
||
|
10
|
10
90116-06M04-00 Bolt, Stud |
90116-06M04-00 |
from US $3.78 |
||
|
11
|
11
677-14198-A0-00 Gasket |
677-14198-A0-00 |
US $3.26 |
||
| replacement | |||||
|
11
|
11
677-14198-A1-00 Gasket |
677-14198-A1-00 |
from US $3.26 |
||
|
12
|
12
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.36 |
||
| replacement | |||||
|
12
|
12
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
677-41271-00-00 Knob, Choke |
677-41271-00-00 |
US $15.44 |
||
|
15
|
15
677-41256-00-00 Rod, Choke 1 |
677-41256-00-00 |
US $7.65 |
||
|
16
|
16
90480-14M02-00 Grommet |
90480-14M02-00 |
US $7.65 |
||
|
17
|
17
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
18
|
18
90468-10004-00 Clip |
90468-10004-00 |
from US $1.84 |
||
|
19
|
19
95380-04700-00 Nut(6L4) |
95380-04700-00 |
from US $1.56 |
||
