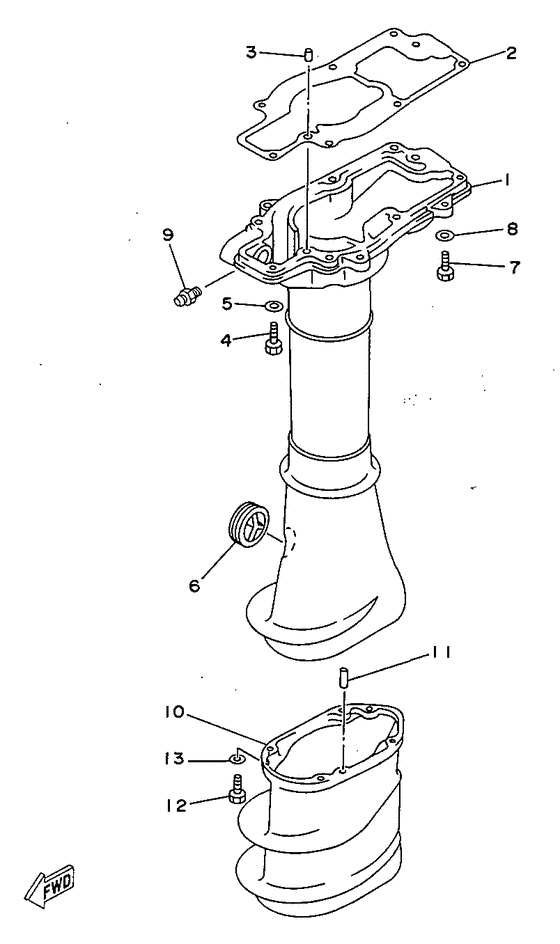

Upper casing Diagram Yamaha 8 MHS/L
- Year
- 1998
- Model
- E8D
- Model code
- 677
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
677-45111-01-4D Casing, Upper |
677-45111-01-4D |
US $377.83 |
||
|
02
|
02
677-45113-A0-00 Gasket, Upper Casing |
677-45113-A0-00 |
US $19.13 |
||
| replacement | |||||
|
02
|
02
677-45113-A1-00 Gasket, Upper Casing |
677-45113-A1-00 |
US $19.13 |
||
|
03
|
03
93605-08041-00 Pin, Dowel |
93605-08041-00 |
US $2.41 |
||
|
04
|
04
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
04
|
04
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
05
|
05
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
06
|
06
647-45151-01-00 Cover, Upper Casing |
647-45151-01-00 |
US $4.96 |
||
|
07
|
07
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
07
|
07
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
09
|
09
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.70 |
||
|
10
|
10
647-45211-10-4D Extension |
647-45211-10-4D |
US $210 |
||
|
11
|
11
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.70 |
||
|
12
|
12
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
