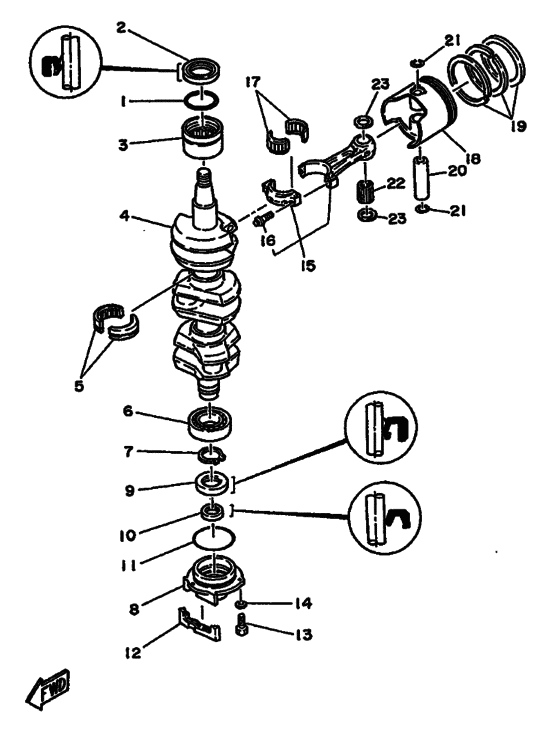

Crankshaft & Piston Diagram Yamaha 80 E(M)TOL/UL
- Year
- 1986
- Model
- 80A
- Model code
- 6H0
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 80
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $4.72 |
||
|
2
|
2
93102-36M02-00 Oil Seal |
93102-36M02-00 |
US $8.36 |
||
| replacement | |||||
|
2
|
2
931-02363-51-00 Oil Seal(52W) |
931-02363-51-00 |
from US $8.36 |
||
|
3
|
3
93310-636U4-00 Bearing |
93310-636U4-00 |
from US $60.12 |
||
|
4
|
4
688-11411-01-00 Crankshaft |
688-11411-01-00 |
from US $841.54 |
||
|
5
|
5
93310-835U8-00 Bearing |
93310-835U8-00 |
from US $77.56 |
||
|
6
|
6
93306-206U5-00 Bearing |
93306-206U5-00 |
from US $48.10 |
||
|
7
|
7
93410-32M00-00 Circlip |
93410-32M00-00 |
from US $2.55 |
||
| replacement | |||||
|
7
|
7
934-10320-75-00 Circlip |
934-10320-75-00 |
from US $2.36 |
||
|
8
|
8
688-15359-01-94 Housing, Oil Seal |
688-15359-01-94 |
from US $96.30 |
||
|
9
|
9
93102-30M05-00 Oil Seal |
93102-30M05-00 |
from US $9.10 |
||
|
10
|
10
93104-20M02-00 Oil Seal |
93104-20M02-00 |
from US $4.04 |
||
|
11
|
11
93210-62269-00 O-Ring |
93210-62269-00 |
from US $6.40 |
||
|
12
|
12
688-15379-00-00 Seal, Crankcase |
688-15379-00-00 |
from US $12.12 |
||
|
13
|
13
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
13
|
13
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
688-11650-03-00 Connecting Rod Assy |
688-11650-03-00 |
from US $174.32 |
||
|
16
|
16
90109-08462-00 Bolt |
90109-08462-00 |
US $11.10 |
||
| replacement | |||||
|
16
|
16
90109-08022-00 Bolt |
90109-08022-00 |
from US $10.10 |
||
|
17
|
17
933-10730-V8-00 Bearing |
933-10730-V8-00 |
from US $58.92 |
||
|
18
|
18
6H1-11631-00-96
Piston (Std)
|
6H1-11631-00-96 |
— | ||
| replacement | |||||
|
18
|
18
6H1-11631-09-96
Piston (Std)
|
6H1-11631-09-96 |
— | ||
|
18
|
18
6H1-11635-00-00
Piston (0.25Mm O/s)
0.25MM O/S; AP |
6H1-11635-00-00 |
— | ||
| replacement | |||||
|
18
|
18
6H1-11635-09-00
Piston (0.25Mm O/s)
0.25MM O/S; AP |
6H1-11635-09-00 |
— | ||
|
18
|
18
6H1-11636-00-00
Piston (2Nd O.s.)
0.50MM O/S; AP |
6H1-11636-00-00 |
— | ||
| replacement | |||||
|
18
|
18
6H1-11636-09-00
Piston (0.50Mm O/s)
0.50MM O/S; AP |
6H1-11636-09-00 |
— | ||
|
19
|
19
6H1-11610-00-00 Piston Ringset (Std) |
6H1-11610-00-00 |
US $107.52 |
||
|
19
|
19
6H1-11610-10-00
Piston Ring Set
AP |
6H1-11610-10-00 |
— | ||
|
19
|
19
6H1-11610-20-00
Piston Ringset (2Nd O.s.)
AP |
6H1-11610-20-00 |
— | ||
|
20
|
20
676-11633-00-00 Pin, Piston |
676-11633-00-00 |
from US $33.62 |
||
|
21
|
21
688-11634-10-00 Clip, Piston Pin |
688-11634-10-00 |
from US $2.36 |
||
|
22
|
22
936-03211-11-00 Pin, Dowel |
936-03211-11-00 |
from US $0.62 |
||
|
23
|
23
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $5.06 |
||
