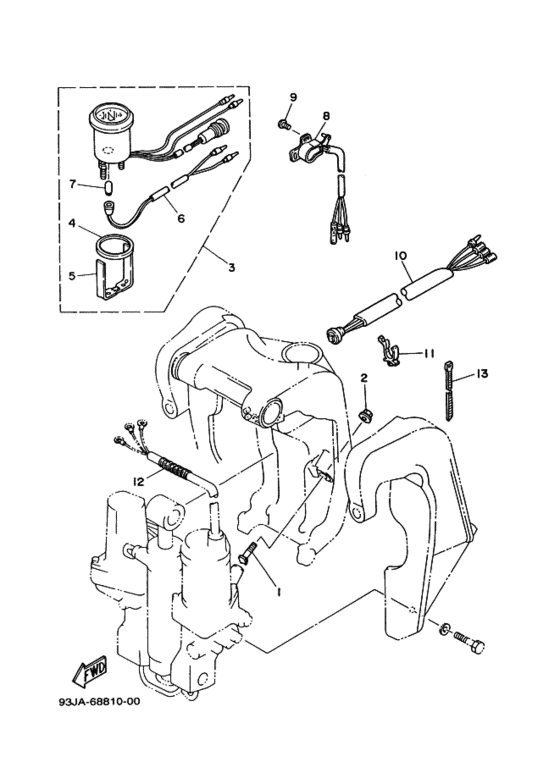

ﾊﾟﾜｰﾄﾘﾑ.ﾁﾙﾄ Diagram Yamaha 85 ET(D)L/X
- Year
- 1993
- Model
- 85A
- Model code
- 688
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-43376-00-00 Bolt, Thrust Receiverボルト，スラストレシーバ; |
6H1-43376-00-00 |
from US $22.39 |
||
|
2
|
2
95780-08300-00 Nut, Nylon (6J8)ナツト，フランジ; |
95780-08300-00 |
from US $6.74 |
||
|
3
|
3
6Y5-83670-10-00
Pro Series 11 Trim Meter (Black)
トリムゲージ; |
6Y5-83670-10-00 |
— | ||
|
4
|
4
688-83664-00-00 Damper．ダンパ; |
688-83664-00-00 |
from US $3.68 |
||
|
5
|
5
6Y5-83577-00-00 Plate, Fitting．プレート，フイツテイング; |
6Y5-83577-00-00 |
from US $8.50 |
||
|
6
|
6
6Y5-83536-20-00 Socket, Meter．ソケツト，メータ; |
6Y5-83536-20-00 |
from US $11.90 |
||
|
7
|
7
6Y5-83518-00-00 Bulb (12V-1.7W T6.5)．バルブ，メータ; |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
7
|
7
3FV-83517-00-00 Bulb (12V-1.7W)．バルブ，メータ; |
3FV-83517-00-00 |
from US $4.99 |
||
|
8
|
8
6H1-83672-10-00
Trim Sender
トリムセンダ; |
6H1-83672-10-00 |
— | ||
|
9
|
9
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
10
|
10
6E5-82553-10-00
Extension, Wire Harness
エクステンシヨン，ワイヤリード; |
6E5-82553-10-00 |
— | ||
|
11
|
11
904-6409M-13-00
Clamp
|
904-6409M-13-00 |
— | ||
| replacement | |||||
|
11
|
11
90464-15M08-00 Clamp |
90464-15M08-00 |
from US $1.94 |
||
|
12
|
12
90440-14M00-00 Pipe |
90440-14M00-00 |
from US $2.55 |
||
|
13
|
13
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
13
|
13
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
13
|
13
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
