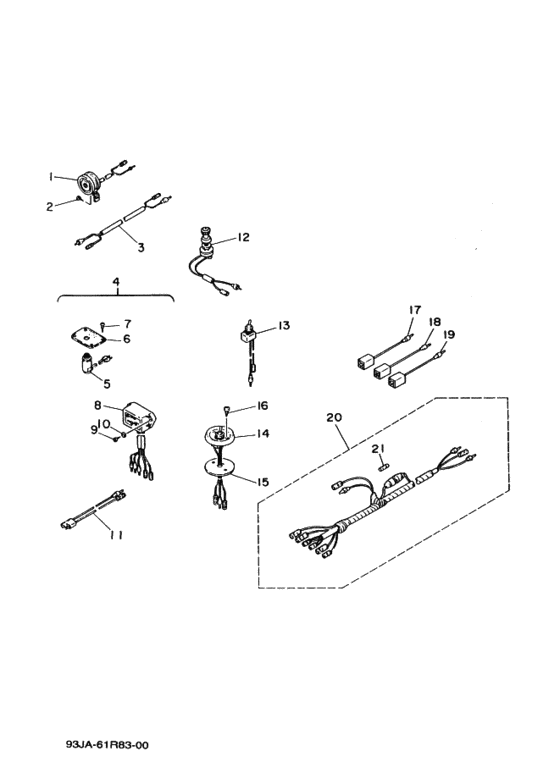

ｵﾌﾟｼﾖﾅﾙﾊﾟｰﾂ 4 (85A/115B ﾓﾃﾞﾙ) Diagram Yamaha 85 ET(D)L/X
- Year
- 1993
- Model
- 85A
- Model code
- 688
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-83383-11-00 Buzzerブザー; |
688-83383-11-00 |
US $54.99 |
||
| replacement | |||||
|
1
|
1
688-83383-12-00 Buzzerブザー; |
688-83383-12-00 |
from US $54.99 |
||
|
2
|
2
97780-50112-00 Screw, Tapping |
97780-50112-00 |
US $1.98 |
||
| replacement | |||||
|
2
|
2
97780-50612-00 Screw, Tapping |
97780-50612-00 |
from US $1.98 |
||
|
3
|
3
688-83373-10-00 Lead, Hornリード，ホーン; |
688-83373-10-00 |
US $20.54 |
||
|
4
|
4
688-W0088-40-00
Pilot Lamp Kit
パイロツトランプキツト; |
688-W0088-40-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
パイロツトランプキツト; |
999-99999-99-00 |
— | ||
|
5
|
5
663-84301-01-00 Pilot Lamp Ass'y．パイロツトライトアセンブリ １; |
663-84301-01-00 |
from US $62.17 |
||
|
6
|
6
663-84309-00-00 Plate, Set．プレート，セツト; |
663-84309-00-00 |
US $82.62 |
||
|
7
|
7
95428-31316-00 Screw, Wood．スクリユ，ウツド; |
95428-31316-00 |
US $7.65 |
||
| replacement | |||||
|
7
|
7
901-6003M-01-00 Screw, Round Tapping．スクリユ，ウツド; |
901-6003M-01-00 |
from US $6.35 |
||
|
8
|
8
697-81901-60-00
Charge Warning Unit Assy
．キヤージウオーニングユニツトアセンブリ; |
697-81901-60-00 |
— | ||
|
9
|
9
97780-60120-00 Screw, Tapping．スクリュ，タツピング; |
97780-60120-00 |
from US $2.41 |
||
| replacement | |||||
|
9
|
9
97780-60520-00 Screw, Tapping．スクリュ，タツピング; |
97780-60520-00 |
from US $2.02 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646)．ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.39 |
||
|
11
|
11
663-82521-09-00
Wire, Lead
．ワイヤ，リード; |
663-82521-09-00 |
— | ||
|
12
|
12
688-82520-00-00 Light Switch Assyライトスイツチアセンブリ; ＵＲ |
688-82520-00-00 |
from US $43.38 |
||
|
13
|
13
688-82526-00-00 Switch, LampＵＲ |
688-82526-00-00 |
from US $62.03 |
||
|
14
|
14
688-82563-10-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; |
688-82563-10-00 |
from US $70.36 |
||
|
15
|
15
688-82388-00-00 Plateプレート; |
688-82388-00-00 |
from US $8.93 |
||
|
16
|
16
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
17
|
17
6Y5-82521-00-00 Wire, Lead (Yellow) (L300)ワイヤ，リード ; イエロー; ＵＲ |
6Y5-82521-00-00 |
from US $6.52 |
||
|
18
|
18
6Y5-82149-00-00 Wire, Lead (Blue) (L300)ワイヤ，リード ; ブルー; ＵＲ |
6Y5-82149-00-00 |
from US $6.80 |
||
|
19
|
19
6Y5-82117-00-00 Wire, Lead (Black) (L300)ワイヤ，リード ; ブラツク; ＵＲ |
6Y5-82117-00-00 |
from US $6.52 |
||
|
20
|
20
6Y5-83553-00-00 Wire, Lead (L=2.5M)ワイヤ，リード; |
6Y5-83553-00-00 |
US $57.20 |
||
| replacement | |||||
|
20
|
20
6Y5-83553-N0-00 Wire, Lead (L=2.5M)ワイヤ，リード; |
6Y5-83553-N0-00 |
US $88.98 |
||
|
21
|
21
1E6-82151-00-00 Fuse (10A)．フユーズ ; １０Ａ |
1E6-82151-00-00 |
from US $2.02 |
||
