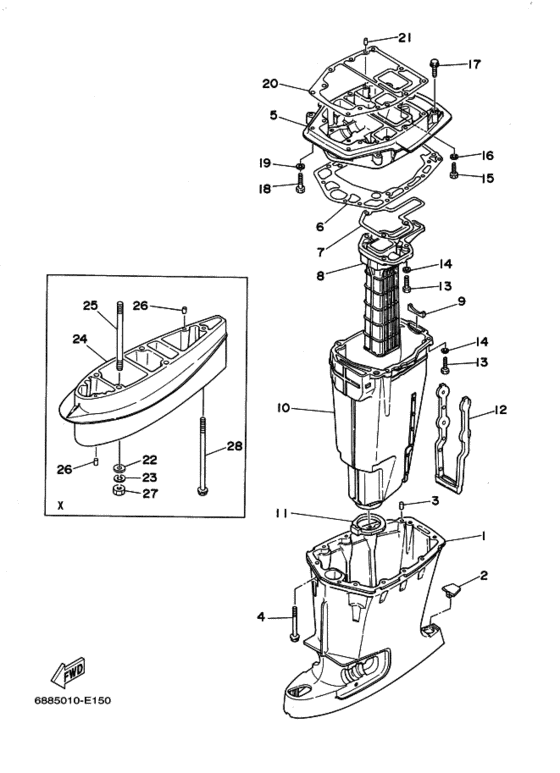

ｱﾂﾊﾟｰｹｰｼﾝｸﾞ Diagram Yamaha 85 ET(D)L/X
- Year
- 2006
- Model
- 85A
- Model code
- 688
- Year
- 2006
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-45111-04-4D Casing, Upperケーシング，アツパー; |
688-45111-04-4D |
US $690.36 |
||
| replacement | |||||
|
1
|
1
688-45111-04-8D Casing, Upperケーシング，アツパー; |
688-45111-04-8D |
from US $690.36 |
||
|
2
|
2
663-45155-10-00 Capキヤツプ; |
663-45155-10-00 |
from US $14.59 |
||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
4
|
4
90119-08M80-00 Bolt, With Washer |
90119-08M80-00 |
from US $5.07 |
||
|
5
|
5
688-41137-03-94 Guide, Exhaustガイド，エキゾースト; |
688-41137-03-94 |
US $405.11 |
||
| replacements | |||||
|
5
|
5
688-41137-03-CA Guide, Exhaustガイド，エキゾースト; |
688-41137-03-CA |
US $405.11 |
||
|
5
|
5
688-41137-09-CA GUIDE, EXHAUSTガイド，エキゾースト; |
688-41137-09-CA |
from US $405.11 |
||
|
6
|
6
688-45114-A1-00 Gasket, Upper Casingガスケツト，アツパーケーシング; |
688-45114-A1-00 |
from US $15.08 |
||
|
7
|
7
688-41134-A0-00 Gasket, Exhaust Manifoldガスケツト，エキゾーストマニホールド; |
688-41134-A0-00 |
from US $8.76 |
||
|
8
|
8
688-41131-00-5B Manifold, Ext. 1マニホールド，エキゾースト １; |
688-41131-00-5B |
US $128.63 |
||
| replacement | |||||
|
8
|
8
688-41131-00-CA Manifold, Ext. 1マニホールド，エキゾースト １; |
688-41131-00-CA |
from US $49.16 |
||
|
9
|
9
688-41133-00-00 Gasket, Exhaust Manifold 1ガスケツト，エキゾーストマニホールド １; |
688-41133-00-00 |
from US $4.96 |
||
|
10
|
10
688-14711-01-5B Muffler 1マフラ １; |
688-14711-01-5B |
US $219.67 |
||
| replacement | |||||
|
10
|
10
688-14711-01-CA Muffler 1マフラ １; |
688-14711-01-CA |
from US $219.67 |
||
|
11
|
11
688-45123-00-00 Gasket, Mufflerガスケツト，マフラ; |
688-45123-00-00 |
from US $11.80 |
||
|
12
|
12
663-14737-10-00 Damper, Mufflerダンパ，マフラー; |
663-14737-10-00 |
from US $28.62 |
||
|
13
|
13
97075-08030-00 Boltボルト; |
97075-08030-00 |
US $2.91 |
||
| replacement | |||||
|
13
|
13
97080-08030-00 Boltボルト; |
97080-08030-00 |
from US $2.91 |
||
|
14
|
14
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.66 |
||
| replacement | |||||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
15
|
15
97075-08025-00 Boltボルト; |
97075-08025-00 |
US $1.42 |
||
| replacement | |||||
|
15
|
15
97D75-08025-00 Bolt, Hexagon Deep Recessボルト; |
97D75-08025-00 |
from US $1.42 |
||
|
16
|
16
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.66 |
||
| replacement | |||||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
17
|
17
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.97 |
||
| replacement | |||||
|
17
|
17
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
18
|
18
970-75080-35-00
Bolt
ボルト; |
970-75080-35-00 |
— | ||
| replacements | |||||
|
18
|
18
97070-08035-00 Boltボルト; |
97070-08035-00 |
from US $2.59 |
||
|
18
|
18
97095-08035-00 Boltボルト; |
97095-08035-00 |
from US $5.53 |
||
|
19
|
19
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.66 |
||
| replacement | |||||
|
19
|
19
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
20
|
20
688-45113-A0-00 Gasket, Upper Casingガスケツト，アツパーケーシング; |
688-45113-A0-00 |
from US $9.44 |
||
|
21
|
21
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
22
|
22
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.18 |
||
|
23
|
23
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.66 |
||
|
24
|
24
688-45211-01-4D ExtensionＸ （２５．３＆ｑｕｏｔ；） |
688-45211-01-4D |
US $755.04 |
||
| replacement | |||||
|
24
|
24
688-45211-01-8D ExtensionＸ （２５．３＆ｑｕｏｔ；） |
688-45211-01-8D |
from US $755.04 |
||
|
25
|
25
90116-10M05-00 Bolt, StudＸ （２５．３＆ｑｕｏｔ；） |
90116-10M05-00 |
from US $13.48 |
||
|
26
|
26
936-06120-19-00 Pin, DowelＸ （２５．３＆ｑｕｏｔ；） |
936-06120-19-00 |
from US $2.86 |
||
|
27
|
27
95380-10600-00 EcrouＸ （２５．３＆ｑｕｏｔ；） |
95380-10600-00 |
from US $2.36 |
||
|
28
|
28
90119-08M86-00 Bolt, With Washer(6J8)Ｘ （２５．３＆ｑｕｏｔ；） |
90119-08M86-00 |
from US $3.40 |
||
| replacement | |||||
|
28
|
28
90119-08M00-00 Bolt, With WasherＸ （２５．３＆ｑｕｏｔ；） |
90119-08M00-00 |
from US $3.40 |
||
