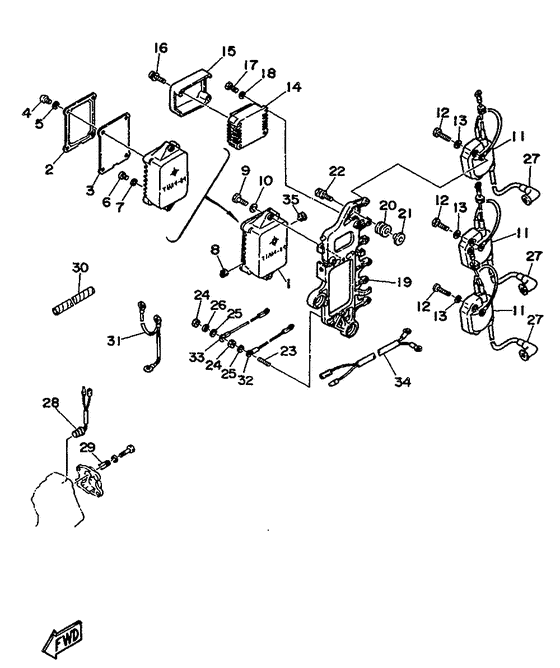

Electrical 1 (75AM) Diagram Yamaha 85 ET(D)L/X
- Year
- 1995
- Model
- 85A
- Model code
- 688
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-85540-16-00
C.d.i. Unit Assembly
|
688-85540-16-00 |
— | ||
|
02
|
02
688-85537-12-00
Cover
|
688-85537-12-00 |
— | ||
|
03
|
03
6E5-85547-10-00
Damper
|
6E5-85547-10-00 |
— | ||
|
04
|
04
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
04
|
04
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
05
|
05
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
06
|
06
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
07
|
07
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
08
|
08
663-81922-00-00 Grommet |
663-81922-00-00 |
US $18.23 |
||
|
09
|
09
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
09
|
09
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
688-85570-11-00 Ignition Coil Assembly |
688-85570-11-00 |
from US $191.36 |
||
|
12
|
12
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
12
|
12
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
692-81910-61-00
Voltage Regulator Assembly
|
692-81910-61-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99028-96-00
Rectfire Regulator Assy. (692)
|
999-99028-96-00 |
— | ||
|
15
|
15
688-81661-01-00
Spacer
|
688-81661-01-00 |
— | ||
|
16
|
16
97985-05225-00
Screw, With Washer
|
97985-05225-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
17
|
17
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
688-85542-03-94
Bracket
|
688-85542-03-94 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.02 |
||
|
21
|
21
90387-06M03-00 Collar |
90387-06M03-00 |
from US $5.81 |
||
|
22
|
22
90119-06M26-00 Bolt, With Washer |
90119-06M26-00 |
US $4.39 |
||
| replacements | |||||
|
22
|
22
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
|
22
|
22
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.39 |
||
|
23
|
23
90116-06M22-00 Bolt, Stud |
90116-06M22-00 |
from US $4.39 |
||
|
24
|
24
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.36 |
||
| replacement | |||||
|
24
|
24
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
25
|
25
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
27
|
27
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
27
|
27
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
28
|
28
688-82560-10-00 Thermo Switch Assy |
688-82560-10-00 |
from US $49.16 |
||
|
29
|
29
688-82588-01-00 Plate |
688-82588-01-00 |
from US $3.97 |
||
|
30
|
30
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
|
31
|
31
697-82519-00-00 Wire, Earth Lead |
697-82519-00-00 |
from US $12.89 |
||
|
32
|
32
688-83554-00-00
Nut
|
688-83554-00-00 |
— | ||
|
33
|
33
692-83554-01-00
Nut
|
692-83554-01-00 |
— | ||
|
34
|
34
692-82553-00-00
Extension, Wire Lead
|
692-82553-00-00 |
— | ||
|
35
|
35
90480-06066-00
Grommet
|
90480-06066-00 |
— | ||
