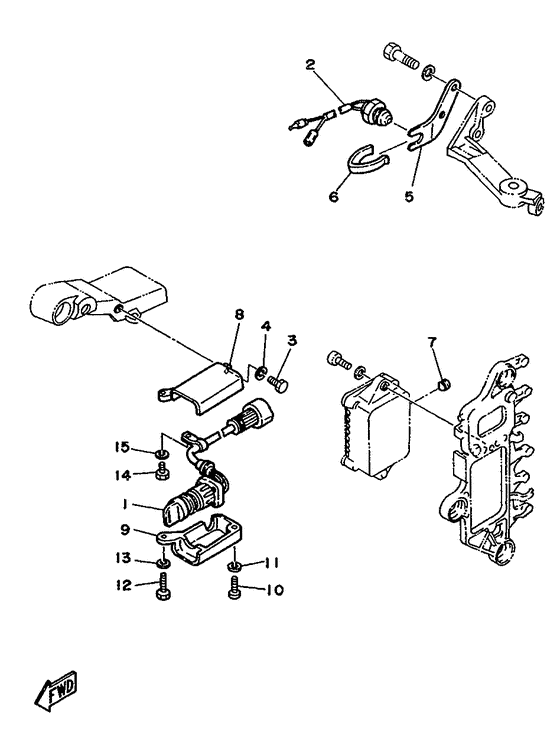

Electrical 4 (75AEM) Diagram Yamaha 85 ET(D)L/X
- Year
- 1995
- Model
- 85A
- Model code
- 688
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H3-82510-01-00 Main Switch Assy |
6H3-82510-01-00 |
US $222.44 |
||
| replacements | |||||
|
01
|
01
6H3-82510-03-00 Main Switch Assy |
6H3-82510-03-00 |
from US $120.86 |
||
|
01
|
01
6H3-82510-04-00 MAIN SWITCH ASSY |
6H3-82510-04-00 |
from US $142.06 |
||
|
02
|
02
688-82540-11-00 Neutral Switch Ass'y |
688-82540-11-00 |
US $39.24 |
||
| replacement | |||||
|
02
|
02
688-82540-12-00 Neutral Switch Assy |
688-82540-12-00 |
from US $39.24 |
||
|
03
|
03
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
03
|
03
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
04
|
04
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
05
|
05
663-82554-01-00 Stay, Neutral Switch |
663-82554-01-00 |
from US $10.63 |
||
|
06
|
06
663-82555-01-00 Damper, Main Switch 1 |
663-82555-01-00 |
from US $12.89 |
||
|
07
|
07
90480-06066-00
Grommet
|
90480-06066-00 |
— | ||
|
08
|
08
697-8252E-00-4D Main Switch Comp |
697-8252E-00-4D |
US $59.55 |
||
| replacement | |||||
|
08
|
08
697-8252E-02-8D Main Switch Cover 1 |
697-8252E-02-8D |
from US $44.55 |
||
|
09
|
09
697-8252F-00-4D Cover, Main Switch 2 |
697-8252F-00-4D |
US $20.83 |
||
| replacement | |||||
|
09
|
09
697-8252F-02-8D Cover, Main Switch 2 |
697-8252F-02-8D |
from US $17.86 |
||
|
10
|
10
98580-06025-00 Screw, Pan Head |
98580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
10
|
10
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
12
|
12
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
14
|
14
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
