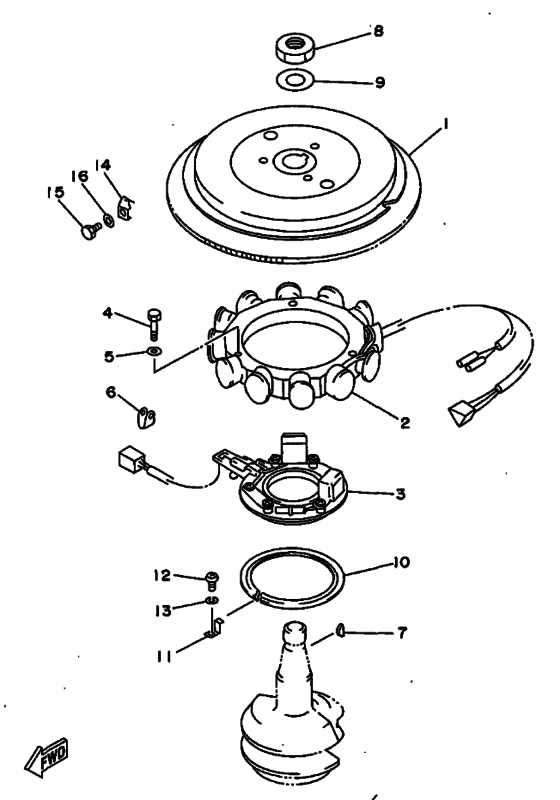

Generatrice Diagram Yamaha 85 ET(D)L/X
- Year
- 1998
- Model
- 85A
- Model code
- 688
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-85550-00-00 Rotor AssyUR |
688-85550-00-00 |
from US $827.64 |
||
|
1
|
1
692-85550-00-00 Rotor AssemblyUR 75AMHD |
692-85550-00-00 |
from US $1,465.20 |
||
|
2
|
2
688-85510-00-00 Stator Assembly |
688-85510-00-00 |
US $699.60 |
||
| replacement | |||||
|
2
|
2
688-85510-01-00 Stator Assy |
688-85510-01-00 |
from US $699.60 |
||
|
3
|
3
688-85580-00-00 Coil, Pulser |
688-85580-00-00 |
from US $634.92 |
||
|
4
|
4
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
4
|
4
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
90464-12M00-00
Clamp
|
90464-12M00-00 |
— | ||
| replacement | |||||
|
6
|
6
90464-12158-00
Clamp
|
90464-12158-00 |
— | ||
|
7
|
7
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $4.72 |
||
|
8
|
8
90170-20137-00 Nut |
90170-20137-00 |
from US $9.10 |
||
|
9
|
9
90201-21M18-00 Washer, Plate |
90201-21M18-00 |
from US $2.36 |
||
|
10
|
10
688-41611-00-00 Retainer, Magneto Base |
688-41611-00-00 |
from US $11.90 |
||
|
11
|
11
688-41612-00-00 Retainer, Magneto Base |
688-41612-00-00 |
from US $2.70 |
||
|
12
|
12
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
688-81332-01-00 Plate, Timing |
688-81332-01-00 |
from US $6.23 |
||
|
15
|
15
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
15
|
15
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646)(75AED/75AET/85AED/85AET) |
929-90066-00-00 |
from US $1.07 |
||
