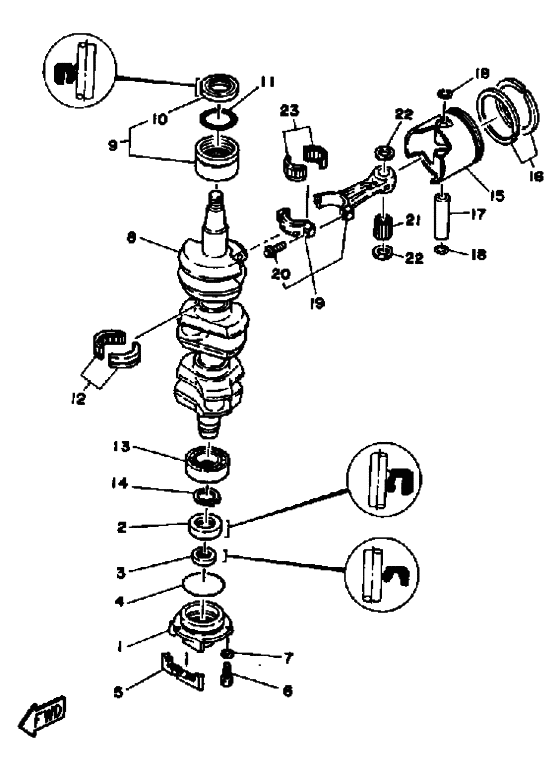

Crankshaft & Piston Diagram Yamaha 85 TLR
- Year
- 1991
- Model
- C85
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-15359-01-94 Housing, Oil Seal |
688-15359-01-94 |
from US $96.30 |
||
|
2
|
2
93102-30M05-00 Oil Seal |
93102-30M05-00 |
from US $8.42 |
||
|
3
|
3
93104-20M02-00 Oil Seal |
93104-20M02-00 |
from US $3.72 |
||
|
4
|
4
93210-62269-00 O-Ring |
93210-62269-00 |
from US $6.06 |
||
|
5
|
5
688-15379-00-00 Seal, Crankcase |
688-15379-00-00 |
from US $11.80 |
||
|
6
|
6
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
6
|
6
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
688-11411-01-00 Crankshaft |
688-11411-01-00 |
from US $925.32 |
||
|
9
|
9
93310-636U4-00 Bearing |
93310-636U4-00 |
from US $71.04 |
||
|
10
|
10
93102-36M24-00 Oil Seal |
93102-36M24-00 |
US $8.36 |
||
| replacement | |||||
|
10
|
10
931-02363-51-00 Oil Seal(52W) |
931-02363-51-00 |
from US $8.36 |
||
|
11
|
11
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $3.72 |
||
|
12
|
12
93310-835U8-00 Bearing |
93310-835U8-00 |
from US $95.94 |
||
|
13
|
13
93306-206U5-00 Bearing |
93306-206U5-00 |
from US $66.59 |
||
|
14
|
14
93410-32M00-00 Circlip |
93410-32M00-00 |
from US $2.55 |
||
| replacement | |||||
|
14
|
14
934-10320-75-00 Circlip |
934-10320-75-00 |
from US $1.70 |
||
|
15
|
15
688-11636-02-00 Piston 2 O/s 0.50 (0.50Mm O/s)O/S 0.50 0.50MM O/S |
688-11636-02-00 |
from US $186.52 |
||
|
15
|
15
688-11631-02-96 Piston Std (Std) |
688-11631-02-96 |
US $186.52 |
||
| replacement | |||||
|
15
|
15
688-11631-02-95 Piston Std (Std) |
688-11631-02-95 |
from US $72.72 |
||
|
16
|
16
688-11610-22-00 Piston Ring set 2Nd (2Nd O/s 0.50)Piston ring set (0.50mm o/s) 2ND 2ND O/S |
688-11610-22-00 |
from US $67.12 |
||
|
16
|
16
688-11610-02-00 Piston Ring set Std (Std) |
688-11610-02-00 |
from US $67.12 |
||
|
17
|
17
663-11633-00-00 Pin, Piston |
663-11633-00-00 |
from US $9.10 |
||
|
18
|
18
688-11634-00-00 Clip, Piston Pin |
688-11634-00-00 |
from US $2.02 |
||
|
19
|
19
688-11650-03-00 Connecting Rod Assy |
688-11650-03-00 |
from US $222.84 |
||
|
20
|
20
90109-08M61-00 Bolt |
90109-08M61-00 |
US $11.05 |
||
| replacement | |||||
|
20
|
20
90109-08022-00 Bolt |
90109-08022-00 |
from US $9.78 |
||
|
21
|
21
936-03211-11-00 Pin, Dowel |
936-03211-11-00 |
from US $1.36 |
||
|
22
|
22
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $4.72 |
||
|
23
|
23
933-10730-V8-00 Bearing |
933-10730-V8-00 |
from US $84.16 |
||
