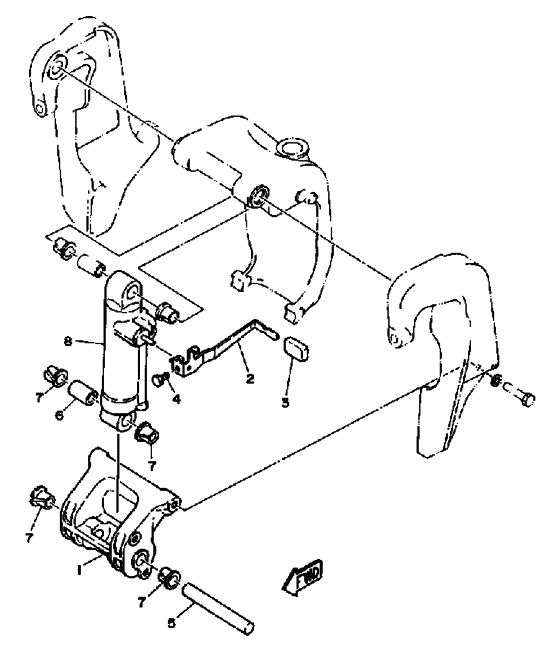

Bracket Diagram Yamaha 85 ETL
- Year
- 1989
- Model
- CV85
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- U.S.A.
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-43128-01-EJ
Spacer, Clamp Brack
|
688-43128-01-EJ |
— | ||
|
2
|
2
688-43631-10-00 Lever, Tilt |
688-43631-10-00 |
from US $14.03 |
||
|
3
|
3
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.97 |
||
|
4
|
4
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
4
|
4
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
5
|
5
688-43124-02-00 Pin, Lower Shock Mount |
688-43124-02-00 |
from US $36.02 |
||
|
6
|
6
90386-18M21-00 Bush |
90386-18M21-00 |
from US $6.80 |
||
|
7
|
7
90386-18M35-00 Bush |
90386-18M35-00 |
from US $10.78 |
||
|
8
|
8
688-43170-04-EJ
Shock Absorber (for L)
|
688-43170-04-EJ |
— | ||
| replacement | |||||
|
8
|
8
688-43107-05-EJ
element
|
688-43107-05-EJ |
— | ||
