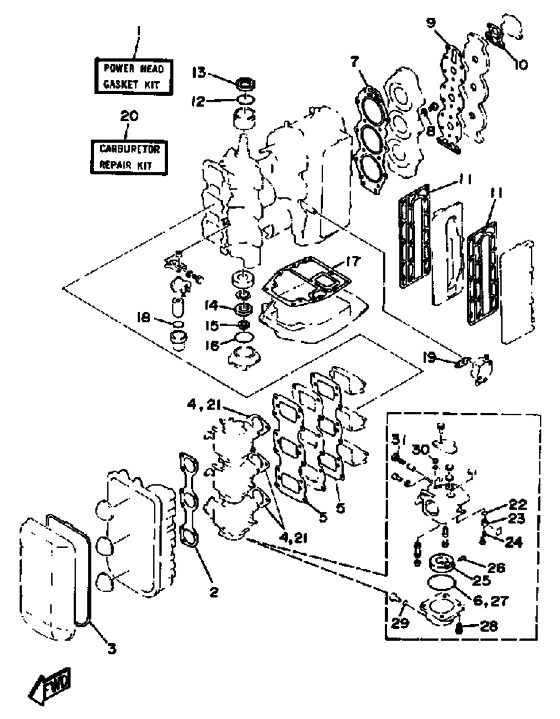

Repair kit Diagram Yamaha 85 ETL
- Year
- 1989
- Model
- CV85
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-W0001-00-00 Gasket Kit |
688-W0001-00-00 |
US $328.96 |
||
| replacements | |||||
|
1
|
1
688-W0001-A0-00 Gasket Kit, Power Unit |
688-W0001-A0-00 |
from US $328.96 |
||
|
1
|
1
688-W0001-01-00 Gasket Kitkit |
688-W0001-01-00 |
US $254.87 |
||
|
2
|
2
688-14483-00-00 Gasket |
688-14483-00-00 |
US $5.81 |
||
| replacement | |||||
|
2
|
2
688-14483-A0-00 Gasket |
688-14483-A0-00 |
from US $3.04 |
||
|
3
|
3
688-14416-00-00 Gasket, Air Cleaner |
688-14416-00-00 |
from US $22.07 |
||
|
4
|
4
688-14198-00-00 Gasket |
688-14198-00-00 |
US $4.11 |
||
| replacement | |||||
|
4
|
4
688-14198-A2-00 Gasket |
688-14198-A2-00 |
from US $4.11 |
||
|
5
|
5
688-13621-00-00 Gasket, Valve Seat |
688-13621-00-00 |
US $11.76 |
||
| replacement | |||||
|
5
|
5
688-13621-A1-00 Gasket, Valve Seat |
688-13621-A1-00 |
from US $5.40 |
||
|
6
|
6
676-14984-00-00 Gasket, Float Chamber |
676-14984-00-00 |
from US $8.22 |
||
|
7
|
7
688-11181-A0-00 Gasket, Cylinder Head 1 |
688-11181-A0-00 |
US $75.71 |
||
| replacement | |||||
|
7
|
7
688-11181-A2-00 Gasket, Cylinder Head 1 |
688-11181-A2-00 |
from US $50.84 |
||
|
8
|
8
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $1.90 |
||
|
9
|
9
688-11193-A1-00 Gasket, Head Cover 1 |
688-11193-A1-00 |
from US $19.88 |
||
|
10
|
10
688-12414-A1-00 Gasket, Cover |
688-12414-A1-00 |
from US $2.70 |
||
|
11
|
11
688-41112-A0-00 Gasket, Exhaust Inner Cover |
688-41112-A0-00 |
from US $11.23 |
||
|
12
|
12
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $3.72 |
||
|
13
|
13
93102-36M24-00 Oil Seal |
93102-36M24-00 |
US $8.36 |
||
| replacement | |||||
|
13
|
13
931-02363-51-00 Oil Seal(52W) |
931-02363-51-00 |
from US $8.36 |
||
|
14
|
14
93102-30M05-00 Oil Seal |
93102-30M05-00 |
from US $8.42 |
||
|
15
|
15
93104-20M02-00 Oil Seal |
93104-20M02-00 |
from US $3.72 |
||
|
16
|
16
93210-62269-00 O-Ring |
93210-62269-00 |
from US $6.06 |
||
|
17
|
17
688-45113-A0-00 Gasket, Upper Casing |
688-45113-A0-00 |
from US $9.10 |
||
|
18
|
18
93210-37M25-00 O-Ring |
93210-37M25-00 |
from US $4.68 |
||
|
19
|
19
650-24431-A0-00 Gasket, Fuel Pump 1 |
650-24431-A0-00 |
from US $1.36 |
||
|
20
|
20
6H1-W0093-01-00 Carburetor Repair Kit |
6H1-W0093-01-00 |
from US $93.84 |
||
| replacement | |||||
|
20
|
20
6H1-W0093-02-00 Carburetor Repair Kit |
6H1-W0093-02-00 |
US $240.77 |
||
|
21
|
21
688-14198-00-00 Gasket |
688-14198-00-00 |
US $4.11 |
||
| replacement | |||||
|
21
|
21
688-14198-A2-00 Gasket |
688-14198-A2-00 |
from US $4.11 |
||
|
22
|
22
93210-04228-00 O-Ring |
93210-04228-00 |
from US $1.70 |
||
|
23
|
23
692-14590-00-00 Valve Seat |
692-14590-00-00 |
US $41.59 |
||
| replacements | |||||
|
23
|
23
692-14590-01-00 Valve Seat |
692-14590-01-00 |
from US $39.06 |
||
|
23
|
23
692-14590-02-00 NEEDLE VALVE ASSY |
692-14590-02-00 |
from US $41.59 |
||
|
24
|
24
676-14186-00-00 Pin, Float |
676-14186-00-00 |
from US $1.70 |
||
|
25
|
25
676-14985-01-00 Float |
676-14985-01-00 |
from US $20.20 |
||
|
26
|
26
688-14548-00-00 Pin, Float Arm |
688-14548-00-00 |
from US $2.02 |
||
|
27
|
27
676-14984-00-00 Gasket, Float Chamber |
676-14984-00-00 |
from US $8.22 |
||
|
28
|
28
979-80041-14-00
Screw, With Washer
|
979-80041-14-00 |
— | ||
| replacement | |||||
|
28
|
28
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
29
|
29
93210-04230-00 O-Ring |
93210-04230-00 |
from US $1.70 |
||
|
30
|
30
663-14126-00-00 Gasket |
663-14126-00-00 |
from US $3.26 |
||
|
31
|
31
692-14923-00-00 Screw, Pilot |
692-14923-00-00 |
from US $10.20 |
||
