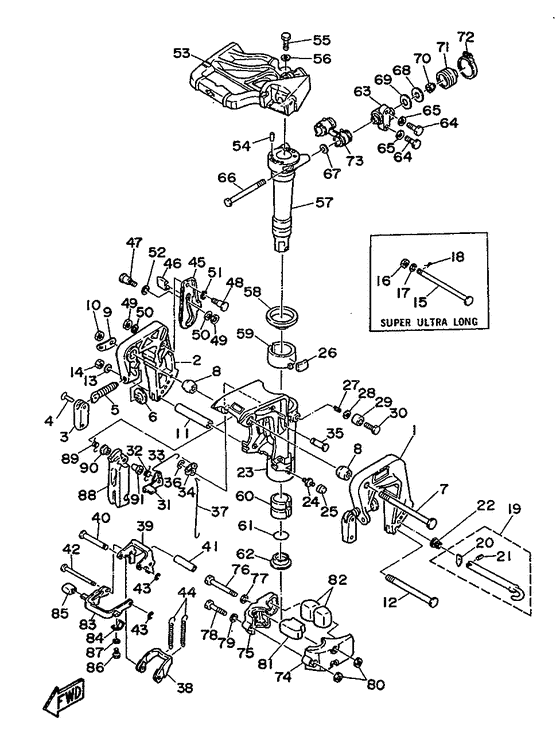

Bracket 1 Diagram Yamaha 9.9 MHS/L
- Year
- 1989
- Model
- 9.9D
- Model code
- 6E7
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 9.9
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
682-43111-01-EJ
Bracket, Clamp
|
682-43111-01-EJ |
— | ||
| replacement | |||||
|
01
|
01
682-43111-19-EJ
Bracket, Clamp
|
682-43111-19-EJ |
— | ||
|
02
|
02
682-43112-02-EJ Bracket, Clamp |
682-43112-02-EJ |
US $97.38 |
||
| replacement | |||||
|
02
|
02
682-43112-29-EJ
Bracket, Clamp
|
682-43112-29-EJ |
— | ||
|
03
|
03
616-43118-00-EJ Handle, Transom Clptransom Clamp |
616-43118-00-EJ |
US $13.60 |
||
| replacement | |||||
|
03
|
03
999-99028-08-00 Handle, Transom Clamp |
999-99028-08-00 |
from US $13.60 |
||
|
04
|
04
90243-04M00-00 Pin |
90243-04M00-00 |
from US $7.37 |
||
|
05
|
05
90149-14030-00 Screw, Specl Shape |
90149-14030-00 |
US $21.68 |
||
| replacements | |||||
|
05
|
05
6L2-43116-00-00 Screw, Transom Clamp |
6L2-43116-00-00 |
from US $30.79 |
||
|
05
|
05
90149-14M03-00 Screw, Spec''l Shape |
90149-14M03-00 |
from US $15.16 |
||
|
06
|
06
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.74 |
||
|
07
|
07
90101-10M01-00 Bolt |
90101-10M01-00 |
from US $12.98 |
||
|
08
|
08
626-43136-00-00 Piece, Friction |
626-43136-00-00 |
from US $15.30 |
||
|
09
|
09
6E7-43113-00-00 Plate, Clamp Bracket |
6E7-43113-00-00 |
US $6.94 |
||
| replacement | |||||
|
09
|
09
6E7-43113-01-00 Plate, Clamp Bracket |
6E7-43113-01-00 |
from US $6.94 |
||
|
10
|
10
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
10
|
10
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
11
|
11
90387-06M13-00 Collar |
90387-06M13-00 |
from US $10.20 |
||
|
12
|
12
90101-06M29-00 Bolt |
90101-06M29-00 |
from US $4.68 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
14
|
14
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
15
|
15
90101-08M01-00
Bolt
|
90101-08M01-00 |
— | ||
|
16
|
16
90171-08M00-00 Nut, Castle |
90171-08M00-00 |
US $6.94 |
||
|
17
|
17
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
18
|
18
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
19
|
19
682-43160-01-00 Tilt Rod Assy |
682-43160-01-00 |
US $41.59 |
||
| replacement | |||||
|
19
|
19
689-43160-00-00 Tilt Rod Assy |
689-43160-00-00 |
from US $21.22 |
||
|
20
|
20
656-43165-01-00 Plate, Tilt Lock |
656-43165-01-00 |
US $5.95 |
||
| replacements | |||||
|
20
|
20
6EE-G3165-00-00 Plate, Tilt Lock |
6EE-G3165-00-00 |
from US $5.38 |
||
|
20
|
20
689-43165-00-00 Plate, Tilt Lock |
689-43165-00-00 |
from US $5.95 |
||
|
21
|
21
91690-30008-00 Pin, Spring |
91690-30008-00 |
from US $1.56 |
||
|
22
|
22
90502-10M07-00 Spring, Conical |
90502-10M07-00 |
from US $1.84 |
||
|
23
|
23
682-43311-03-EJ Bracket, Swivel |
682-43311-03-EJ |
US $510.14 |
||
| replacement | |||||
|
23
|
23
682-43311-19-EJ Bracket, Swivel |
682-43311-19-EJ |
from US $499.16 |
||
|
24
|
24
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
24
|
24
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
25
|
25
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
26
|
26
648-42528-00-00 Plate, Friction |
648-42528-00-00 |
US $10.77 |
||
|
27
|
27
90501-18M00-00 Spring, Compression |
90501-18M00-00 |
from US $3.54 |
||
|
28
|
28
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
29
|
29
676-43373-00-00 Seal, Damper |
676-43373-00-00 |
US $4.68 |
||
|
30
|
30
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
30
|
30
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
30
|
30
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
31
|
31
682-43631-00-00
Lever, Tilt
|
682-43631-00-00 |
— | ||
|
32
|
32
90508-12M03-00
Spring, Torsion
|
90508-12M03-00 |
— | ||
|
33
|
33
682-43616-00-00 Rod, Tilt Lock |
682-43616-00-00 |
from US $6.80 |
||
|
34
|
34
682-43641-00-00 Lever, Tilt |
682-43641-00-00 |
US $6.80 |
||
| replacement | |||||
|
34
|
34
682-43641-01-00 Lever, Tilt |
682-43641-01-00 |
from US $6.80 |
||
|
35
|
35
90249-06M23-00 Pin |
90249-06M23-00 |
from US $2.41 |
||
|
36
|
36
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.81 |
||
|
37
|
37
682-43617-00-00 Rod, Tilt Lock |
682-43617-00-00 |
from US $6.80 |
||
|
38
|
38
682-43614-00-00 Plate, Tilt Lock |
682-43614-00-00 |
from US $18.99 |
||
|
39
|
39
682-43615-01-00 Plate, Tilt Lock |
682-43615-01-00 |
US $20.69 |
||
| replacement | |||||
|
39
|
39
682-43615-02-00 Plate, Tilt Lock |
682-43615-02-00 |
from US $20.69 |
||
|
40
|
40
682-43611-00-00 Shaft, Tilt Lock |
682-43611-00-00 |
US $6.52 |
||
| replacement | |||||
|
40
|
40
682-43611-01-00 Shaft, Tilt Lock |
682-43611-01-00 |
from US $6.52 |
||
|
41
|
41
90387-06M10-00 Collar |
90387-06M10-00 |
US $6.38 |
||
| replacement | |||||
|
41
|
41
90387-06M20-00 Collar |
90387-06M20-00 |
from US $6.38 |
||
|
42
|
42
682-43659-00-00 Shaft, Reverse Lock |
682-43659-00-00 |
US $7.93 |
||
| replacement | |||||
|
42
|
42
682-43659-01-00 Shaft, Reverse Lock |
682-43659-01-00 |
from US $7.93 |
||
|
43
|
43
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.81 |
||
|
44
|
44
90506-26M01-00 Spring, Tension |
90506-26M01-00 |
from US $12.26 |
||
|
44
|
44
90506-26M07-00 Spring, TensionUr |
90506-26M07-00 |
from US $12.75 |
||
|
45
|
45
6E7-43181-00-00 Lever, Tilt Stop |
6E7-43181-00-00 |
US $43.52 |
||
| replacement | |||||
|
45
|
45
6E7-43181-01-00 Lever, Tilt Stop 1 |
6E7-43181-01-00 |
from US $43.52 |
||
|
46
|
46
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.89 |
||
|
47
|
47
90109-06M03-00 Bolt |
90109-06M03-00 |
US $7.63 |
||
|
48
|
48
90109-06M05-00 Bolt |
90109-06M05-00 |
from US $7.51 |
||
|
49
|
49
95680-06100-00 Nut, U |
95680-06100-00 |
from US $6.09 |
||
|
50
|
50
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
51
|
51
90206-10M15-00 Washer, Wave |
90206-10M15-00 |
from US $4.96 |
||
|
52
|
52
682-43339-01-00 Washer |
682-43339-01-00 |
from US $8.64 |
||
|
53
|
53
682-42511-00-EJ
Bracket, Steering
|
682-42511-00-EJ |
— | ||
|
54
|
54
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
55
|
55
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
55
|
55
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
56
|
56
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
57
|
57
682-42521-00-94 Shaft, Steering Pivot |
682-42521-00-94 |
US $139.54 |
||
| replacement | |||||
|
57
|
57
682-42521-00-00 Shaft, steering pivot |
682-42521-00-00 |
from US $129.60 |
||
|
58
|
58
90205-52M01-00
Washer, Tooth
|
90205-52M01-00 |
— | ||
|
59
|
59
682-42537-00-00 Bushing, Pivot Shaft |
682-42537-00-00 |
from US $7.76 |
||
|
60
|
60
90386-40M09-00 Bush |
90386-40M09-00 |
from US $7.42 |
||
|
61
|
61
93210-40M10-00 O-Ring |
93210-40M10-00 |
from US $3.60 |
||
|
62
|
62
90386-40M08-00 Bush |
90386-40M08-00 |
from US $4.39 |
||
|
63
|
63
682-44514-00-94 Mount Damper, Upper SideUr |
682-44514-00-94 |
US $54.71 |
||
| replacement | |||||
|
63
|
63
682-44514-01-CA Mount Damper, Upper SideUr |
682-44514-01-CA |
from US $31.66 |
||
|
63
|
63
682-44514-30-94 Mount Damper, Upper SideUr |
682-44514-30-94 |
US $54.71 |
||
| replacement | |||||
|
63
|
63
682-44514-31-CA Mount Damper, Upper SideUr |
682-44514-31-CA |
US $54.71 |
||
|
64
|
64
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
64
|
64
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
65
|
65
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
66
|
66
90101-08M30-00 Bolt |
90101-08M30-00 |
from US $4.04 |
||
|
67
|
67
90201-08M12-00 Washer, Plate |
90201-08M12-00 |
from US $3.26 |
||
|
68
|
68
90201-08M13-00 Washer, Plate |
90201-08M13-00 |
from US $3.54 |
||
|
69
|
69
90202-13M02-00 Washer, Plate |
90202-13M02-00 |
from US $2.69 |
||
|
70
|
70
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
71
|
71
682-44522-00-00 Seal |
682-44522-00-00 |
US $7.08 |
||
| replacement | |||||
|
71
|
71
682-44522-01-00 Seal |
682-44522-01-00 |
from US $7.08 |
||
|
72
|
72
90460-42M01-00
Clamp, Hose
|
90460-42M01-00 |
— | ||
|
73
|
73
682-44521-01-00 Seal |
682-44521-01-00 |
US $20.12 |
||
|
74
|
74
682-44551-01-EJ
Housing, Lower Mount Rubber
|
682-44551-01-EJ |
— | ||
| replacement | |||||
|
74
|
74
682-44551-02-EJ
Housing, Lower Mount Rubber
|
682-44551-02-EJ |
— | ||
|
75
|
75
682-44551-00-00
Housing, Lower Mount Rubber
|
682-44551-00-00 |
— | ||
| replacement | |||||
|
75
|
75
682-W4551-00-EJ
Housing, Lower Mount
|
682-W4551-00-EJ |
— | ||
|
76
|
76
97395-08085-00 Bolt |
97395-08085-00 |
from US $5.76 |
||
| replacement | |||||
|
76
|
76
975-95085-85-00 Bolt, With Washer |
975-95085-85-00 |
from US $5.66 |
||
|
77
|
77
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
78
|
78
97395-08055-00 Bolt |
97395-08055-00 |
from US $6.66 |
||
| replacement | |||||
|
78
|
78
97095-08055-00 Bolt |
97095-08055-00 |
from US $6.66 |
||
|
79
|
79
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
80
|
80
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
81
|
81
682-44557-00-00 Mount Damper, Lower Front |
682-44557-00-00 |
from US $11.76 |
||
|
82
|
82
682-44555-00-00 Mount Damper, Lower Side |
682-44555-00-00 |
from US $11.76 |
||
|
82
|
82
682-44555-30-00 Mount Damper, Lower SideUr |
682-44555-30-00 |
from US $12.35 |
||
|
83
|
83
682-43681-01-00
Lever, Shallow Water Drive 1
|
682-43681-01-00 |
— | ||
|
84
|
84
682-43643-00-00 Spring |
682-43643-00-00 |
from US $4.96 |
||
|
85
|
85
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.89 |
||
|
86
|
86
97395-06008-00 Bolt, Hexagon |
97395-06008-00 |
from US $1.56 |
||
| replacement | |||||
|
86
|
86
97080-06008-00 Bolt, Hex |
97080-06008-00 |
from US $1.56 |
||
|
87
|
87
92990-06500-00
Washer
|
92990-06500-00 |
— | ||
|
88
|
88
682-42731-01-EJ
Carrying Handle
|
682-42731-01-EJ |
— | ||
|
89
|
89
90508-16M04-00
Spring, Torsion
|
90508-16M04-00 |
— | ||
|
90
|
90
90386-10025-00 Bush |
90386-10025-00 |
from US $3.54 |
||
|
91
|
91
90386-10045-00 Bush |
90386-10045-00 |
from US $4.11 |
||
