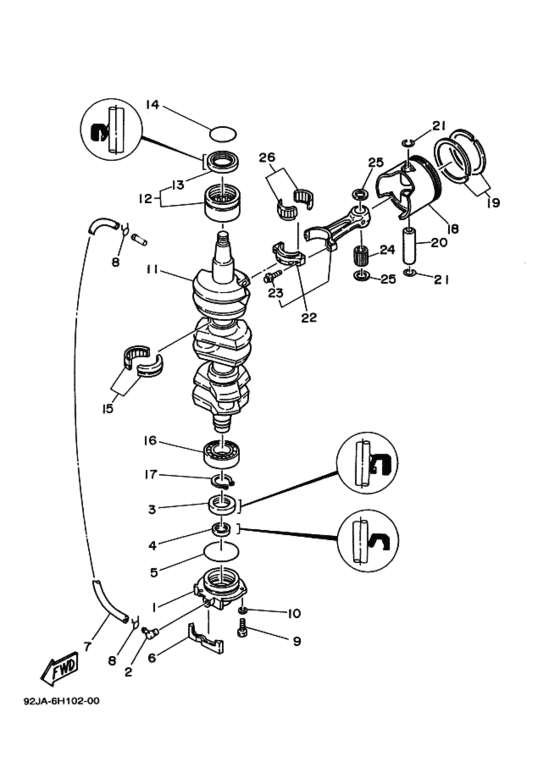

Crankshaft & Piston Diagram Yamaha 90 ETOL/XL
- Year
- 1993
- Model
- 90A
- Model code
- 6H1
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-15359-01-94 Housing, Oil Sealハウジング，オイルシール; |
6H1-15359-01-94 |
from US $60.10 |
||
|
2
|
2
688-11370-00-00 Check Valve Assyチエツクバルブアセンブリ; |
688-11370-00-00 |
US $23.38 |
||
| replacement | |||||
|
2
|
2
688-11370-01-00 Check Valve Assyチエツクバルブアセンブリ; |
688-11370-01-00 |
from US $14.48 |
||
|
3
|
3
93102-30M05-00 Oil Sealオイルシール; |
93102-30M05-00 |
from US $9.10 |
||
|
4
|
4
93104-20M02-00 Oil Sealオイルシール; |
93104-20M02-00 |
from US $4.04 |
||
|
5
|
5
93210-62269-00 O-Ring |
93210-62269-00 |
from US $6.40 |
||
|
6
|
6
688-15379-00-00 Seal, Crankcaseシール，クランクケース; |
688-15379-00-00 |
from US $12.12 |
||
|
7
|
7
90445-07M86-00 Hose (L460)ホース; |
90445-07M86-00 |
from US $15.16 |
||
| replacement | |||||
|
7
|
7
90445-07006-00 Hose (L770)ホース; |
90445-07006-00 |
from US $10.44 |
||
|
8
|
8
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
9
|
9
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.39 |
||
|
11
|
11
688-11411-01-00 Crankshaftクランクシヤフト; |
688-11411-01-00 |
from US $841.54 |
||
|
12
|
12
93310-636U4-00 Bearing |
93310-636U4-00 |
from US $60.12 |
||
|
13
|
13
93102-36M24-00 Oil Seal．オイルシール; |
93102-36M24-00 |
US $8.36 |
||
| replacement | |||||
|
13
|
13
931-02363-51-00 Oil Seal(52W)．オイルシール; |
931-02363-51-00 |
from US $8.36 |
||
|
14
|
14
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $4.72 |
||
|
15
|
15
93310-835U8-00 Bearing |
93310-835U8-00 |
from US $77.56 |
||
|
16
|
16
93306-206U5-00 Bearing |
93306-206U5-00 |
from US $48.10 |
||
|
17
|
17
93410-32M00-00 Circlipサークリツプ; |
93410-32M00-00 |
from US $2.55 |
||
| replacement | |||||
|
17
|
17
934-10320-75-00 Circlipサークリツプ; |
934-10320-75-00 |
from US $2.36 |
||
|
18
|
18
6H1-11631-02-96 Piston Std (Std)ＳＴＤ |
6H1-11631-02-96 |
US $259.51 |
||
|
18
|
18
6H1-11635-02-00
Piston (0.25Mm O/s)
．ピストン ; ０２５ＭＭ Ｏ／Ｓ; ＡＰ |
6H1-11635-02-00 |
— | ||
|
18
|
18
6H1-11636-02-00
Piston (2Nd O.s.)
．ピストン ; ０５０ＭＭ Ｏ／Ｓ; ＡＰ |
6H1-11636-02-00 |
— | ||
|
19
|
19
6H1-11601-00-00 Piston Ring (Std)ピストンリングセツト ; ＳＴＤ |
6H1-11601-00-00 |
from US $67.48 |
||
|
19
|
19
6H1-11601-10-00
Piston Ring Set
ピストンリングセツト ; １ＳＴ Ｏ／Ｓ; ＡＰ |
6H1-11601-10-00 |
— | ||
|
19
|
19
6H1-11601-20-00 Piston Ringset (2Nd O.s.)ピストンリングセツト ; ２ＮＤ Ｏ／Ｓ; ＡＰ |
6H1-11601-20-00 |
from US $85.94 |
||
|
20
|
20
663-11633-00-00 Pin, Pistonピン，ピストン; |
663-11633-00-00 |
from US $7.82 |
||
|
21
|
21
688-11634-10-00 Clip, Piston Pinクリツプ，ピストンピン; |
688-11634-10-00 |
from US $2.36 |
||
|
22
|
22
688-11650-03-00 Connecting Rod Assyコネクテイングロツドアセンブリ; |
688-11650-03-00 |
from US $174.32 |
||
|
23
|
23
90109-08462-00 Bolt．ボルト; |
90109-08462-00 |
US $11.10 |
||
| replacement | |||||
|
23
|
23
90109-08022-00 Bolt．ボルト; |
90109-08022-00 |
from US $10.10 |
||
|
24
|
24
936-03211-11-00 Pin, Dowel |
936-03211-11-00 |
from US $0.62 |
||
|
25
|
25
90201-20417-00 Washer, Plateワツシヤ，プレート; |
90201-20417-00 |
from US $5.06 |
||
|
26
|
26
933-10730-V8-00 Bearing |
933-10730-V8-00 |
from US $58.92 |
||
