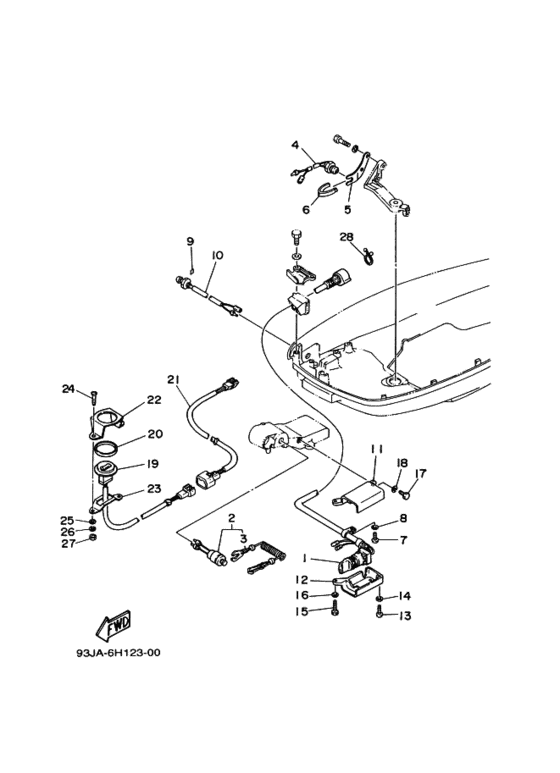

ｵﾙﾀﾈｰﾄ 2 (80AEMTO/90AEMTOﾓﾃﾞﾙ) Diagram Yamaha 90 ETOL/XL
- Year
- 1993
- Model
- 90A
- Model code
- 6H1
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Japan (010)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-82510-10-00 Main Switch Assemblyメインスイツチアセンブリ; |
6H4-82510-10-00 |
US $150.59 |
||
| replacements | |||||
|
1
|
1
6H4-82510-18-00 CLAMP,COUPLERメインスイツチアセンブリ; |
6H4-82510-18-00 |
US $126.93 |
||
|
1
|
1
6H4-82510-17-00 Main Switch Assyメインスイツチアセンブリ; |
6H4-82510-17-00 |
US $279.76 |
||
|
2
|
2
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $56.78 |
||
| replacement | |||||
|
2
|
2
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $46.58 |
||
|
3
|
3
682-82556-00-00 Lanyard, Stop Switch．ストツパ; |
682-82556-00-00 |
from US $10.13 |
||
|
4
|
4
688-82540-11-00 Neutral Switch Ass'yニユートラルスイツチアセンブリ; |
688-82540-11-00 |
US $39.24 |
||
| replacement | |||||
|
4
|
4
688-82540-12-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
688-82540-12-00 |
from US $39.24 |
||
|
5
|
5
663-82554-01-00 Stay, Neutral Switchステー，ニユートラルスイツチ; |
663-82554-01-00 |
from US $10.63 |
||
|
6
|
6
663-82555-01-00 Damper, Main Switch 1ダンパ，メインスイツチ １; |
663-82555-01-00 |
from US $12.89 |
||
|
7
|
7
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
8
|
8
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
6H4-85415-10-00 Mark, Signal Lampマーク; |
6H4-85415-10-00 |
from US $1.98 |
||
|
10
|
10
6J8-85410-00-00 Emergency Signal Light Assyエマージエンシーシグナルライトアセンブリ; |
6J8-85410-00-00 |
from US $37.86 |
||
|
11
|
11
697-8252E-00-EK Main Switch Compカバー，メインスイツチ; |
697-8252E-00-EK |
US $49.06 |
||
| replacement | |||||
|
11
|
11
697-8252E-02-EK Main Switch Coverカバー，メインスイツチ; |
697-8252E-02-EK |
US $49.06 |
||
|
12
|
12
697-8252F-00-EK
Cover, Main Switch 2
カバー，メインスイツチ; |
697-8252F-00-EK |
— | ||
| replacements | |||||
|
12
|
12
697-8252F-02-EK
Main Switch Cover
カバー，メインスイツチ; |
697-8252F-02-EK |
— | ||
|
12
|
12
697-8252F-01-EK
697-8252f-02-ek
カバー，メインスイツチ; |
697-8252F-01-EK |
— | ||
|
13
|
13
92580-06025-00 Screw |
92580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
13
|
13
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
14
|
14
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
15
|
15
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
16
|
16
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
17
|
17
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
18
|
18
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
6H3-82563-00-00
Trim & Tilt Switch Assy
トリム・チルトスイツチアセンブリ; |
6H3-82563-00-00 |
— | ||
|
20
|
20
6E5-82587-00-00 Gasket |
6E5-82587-00-00 |
US $5.58 |
||
|
21
|
21
6H3-82553-M1-00
Extension, Wire Lead
エクステンシヨン，ワイヤリード; ８０ＡＥＭＴＯ／９０ＡＥＭＴＯ |
6H3-82553-M1-00 |
— | ||
|
22
|
22
6H4-83631-00-00
Bracket, Panel 1
ブラケツト，パネル １; |
6H4-83631-00-00 |
— | ||
|
23
|
23
6H4-83632-00-00
Bracket, Panel 2
ブラケツト，パネル ２; |
6H4-83632-00-00 |
— | ||
|
24
|
24
978-90060-30-00
Screw, Pan Head
|
978-90060-30-00 |
— | ||
| replacement | |||||
|
24
|
24
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
25
|
25
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.18 |
||
|
26
|
26
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
27
|
27
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
28
|
28
90464-16039-00 Clamp (3Y2)８０ＡＥＭＴＯ／９０ＡＥＭＴＯ |
90464-16039-00 |
from US $1.81 |
||
