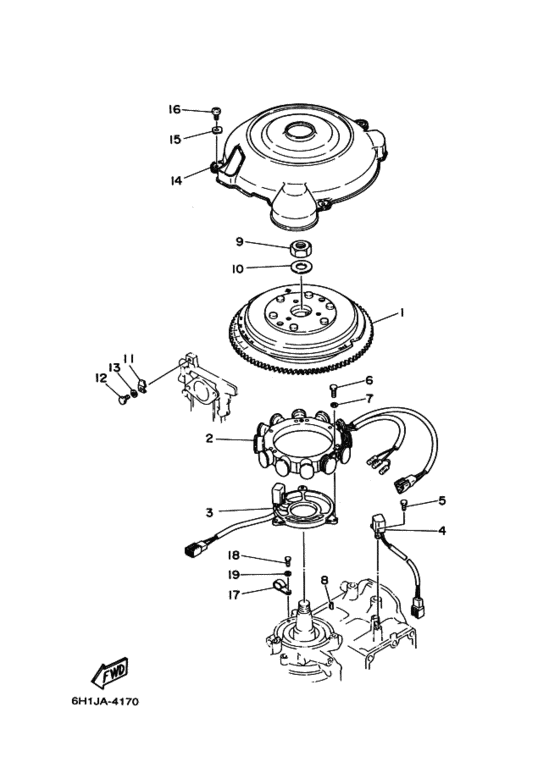

Generator Diagram Yamaha 90 ETOL/XL
- Year
- 1997
- Model
- 90A
- Model code
- 6H1
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H0-85550-00-00 Rotor Assyロータアセンブリ; |
6H0-85550-00-00 |
from US $997.92 |
||
|
2
|
2
6H0-85510-01-00
Stator Assembly
ステータアセンブリ; |
6H0-85510-01-00 |
— | ||
|
3
|
3
6H0-85580-01-00 Coil, Pulserコイル，パルサ; |
6H0-85580-01-00 |
from US $250.07 |
||
|
4
|
4
6H2-85895-01-00 Crank Position Sensorクランクポジシヨンセンダ; |
6H2-85895-01-00 |
from US $107.49 |
||
|
5
|
5
97095-05012-00 Boltボルト; |
97095-05012-00 |
from US $1.55 |
||
|
6
|
6
97095-06040-00 Boltボルト; |
97095-06040-00 |
from US $1.39 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
90280-05049-00 Key, Woodruffキー，ウツドラフ; |
90280-05049-00 |
from US $5.06 |
||
|
9
|
9
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
|
10
|
10
90201-21M18-00 Washer, Plateワツシヤ，プレート; |
90201-21M18-00 |
from US $7.08 |
||
|
11
|
11
688-81332-01-00 Plate, Timingプレート，タイミング; |
688-81332-01-00 |
from US $6.23 |
||
|
12
|
12
970-95060-10-00
Bolt
ボルト; |
970-95060-10-00 |
— | ||
| replacement | |||||
|
12
|
12
97085-06010-00 Boltボルト; |
97085-06010-00 |
from US $1.28 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
6H1-81337-01-00 Cover, Flywheelカバー，フライホイール; |
6H1-81337-01-00 |
from US $38.57 |
||
|
15
|
15
90209-06M04-00
Washer
|
90209-06M04-00 |
— | ||
|
16
|
16
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
17
|
17
90465-06M28-00 Clamp |
90465-06M28-00 |
from US $3.12 |
||
|
18
|
18
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
18
|
18
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $2.22 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
