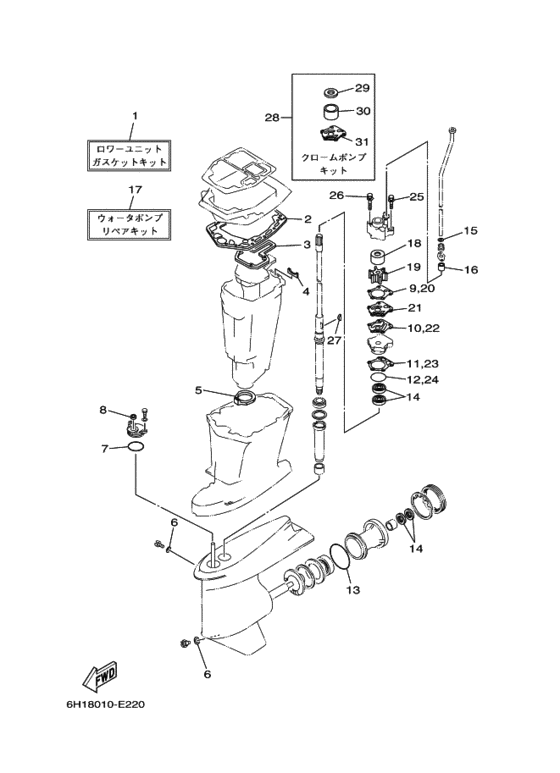

ﾘﾍﾟｱｷﾂﾄ 2 Diagram Yamaha 90 ETOL/XL
- Year
- 2006
- Model
- 90A
- Model code
- 6H1
- Year
- 2006
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-W0001-21-00 Gasket Kitロワーユニツトガスケツトキツト; |
688-W0001-21-00 |
US $138.57 |
||
| replacements | |||||
|
1
|
1
688-W0001-22-00 Lower Unit Gasket Kitロワーユニツトガスケツトキツト; |
688-W0001-22-00 |
US $138.57 |
||
|
1
|
1
688-W0001-23-00 Lower Unit Gasket Kitロワーユニツトガスケツトキツト; |
688-W0001-23-00 |
from US $101.05 |
||
|
2
|
2
688-45114-A1-00 Gasket, Upper Casing．ガスケツト，アツパーケーシング; |
688-45114-A1-00 |
from US $15.08 |
||
|
3
|
3
688-41134-A0-00 Gasket, Exhaust Manifold．ガスケツト，エキゾーストマニホールド; |
688-41134-A0-00 |
from US $8.76 |
||
|
4
|
4
688-41133-00-00 Gasket, Exhaust Manifold 1．ガスケツト，エキゾーストマニホールド １; |
688-41133-00-00 |
from US $4.96 |
||
|
5
|
5
688-45123-00-00 Gasket, Muffler．ガスケツト，マフラ; |
688-45123-00-00 |
from US $11.80 |
||
|
6
|
6
904-30080-20-00 Gasket．ガスケツト; |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
6
|
6
90430-08003-00 Gasket．ガスケツト; |
90430-08003-00 |
from US $1.36 |
||
|
7
|
7
932-10490-46-00 O-Ring．Ｏ−リング; |
932-10490-46-00 |
from US $1.94 |
||
|
8
|
8
931-06090-14-00 Oil Seal．オイルシール; |
931-06090-14-00 |
from US $3.13 |
||
|
9
|
9
688-44315-A0-00 Gasket, Water Pump．ガスケツト，ウオータポンプ; |
688-44315-A0-00 |
from US $4.04 |
||
|
10
|
10
688-44324-A0-00 Gasket, Cartridge．ガスケツト，カートリツジ; |
688-44324-A0-00 |
from US $3.72 |
||
|
11
|
11
688-44316-A0-00 Gasket, Water Pump．ガスケツト，ウオータポンプ; |
688-44316-A0-00 |
from US $3.72 |
||
|
12
|
12
932-10460-44-00 O-Ring．Ｏ−リング; |
932-10460-44-00 |
from US $2.77 |
||
|
13
|
13
932-1085M-97-00 O-Ring．Ｏ−リング; |
932-1085M-97-00 |
from US $7.42 |
||
|
14
|
14
931-0125M-03-00 Oil Seal．オイルシール; |
931-0125M-03-00 |
from US $4.72 |
||
|
15
|
15
904-30120-72-00 Gasket．ガスケツト; |
904-30120-72-00 |
from US $3.38 |
||
|
16
|
16
663-44366-00-00 Damper, Water Seal 2．ダンパ，ウオータシール; |
663-44366-00-00 |
from US $3.74 |
||
|
17
|
17
692-W0078-02-00 Water Pump Repair Kitウオータポンプリペアキツト; |
692-W0078-02-00 |
from US $52.65 |
||
|
18
|
18
688-44322-00-00 Insert, Cartridge．インサート，カートリツジ; |
688-44322-00-00 |
from US $11.12 |
||
|
19
|
19
688-44352-03-00 Impeller．インペラ; |
688-44352-03-00 |
from US $22.26 |
||
|
20
|
20
688-44315-A0-00 Gasket, Water Pump．ガスケツト，ウオータポンプ; |
688-44315-A0-00 |
from US $4.04 |
||
|
21
|
21
688-44323-00-00 Outer Plate, Cartridge．アウタプレート，カートリツジ; |
688-44323-00-00 |
from US $8.76 |
||
|
22
|
22
688-44324-A0-00 Gasket, Cartridge．ガスケツト，カートリツジ; |
688-44324-A0-00 |
from US $3.72 |
||
|
23
|
23
688-44316-A0-00 Gasket, Water Pump．ガスケツト，ウオータポンプ; |
688-44316-A0-00 |
from US $3.72 |
||
|
24
|
24
932-10460-44-00 O-Ring．Ｏ−リング; |
932-10460-44-00 |
from US $2.77 |
||
|
25
|
25
90119-08M13-00 Bolt, With Washer．ボルト，ウイズワツシヤ; |
90119-08M13-00 |
from US $6.09 |
||
|
26
|
26
90119-08M16-00 Bolt, With Washer．ボルト，ウイズワツシヤ; |
90119-08M16-00 |
from US $7.37 |
||
|
27
|
27
902-8004M-04-00 Key, Woodruff．キー，ウツドラフ; |
902-8004M-04-00 |
from US $8.42 |
||
|
28
|
28
688-W0078-1A-00 Chrome Pump Kitクロームポンプキツト; |
688-W0078-1A-00 |
from US $88.20 |
||
|
29
|
29
688-44321-41-00 Insert, Cartridge．インナプレート，カートリツジ; |
688-44321-41-00 |
from US $51.03 |
||
|
30
|
30
688-44322-41-00 Insert, Cartridge．インサート，カートリツジ; |
688-44322-41-00 |
from US $58.03 |
||
|
31
|
31
688-44323-40-00 Outer Plate, Cartridge．アウタプレート，カートリツジ; |
688-44323-40-00 |
from US $49.05 |
||
