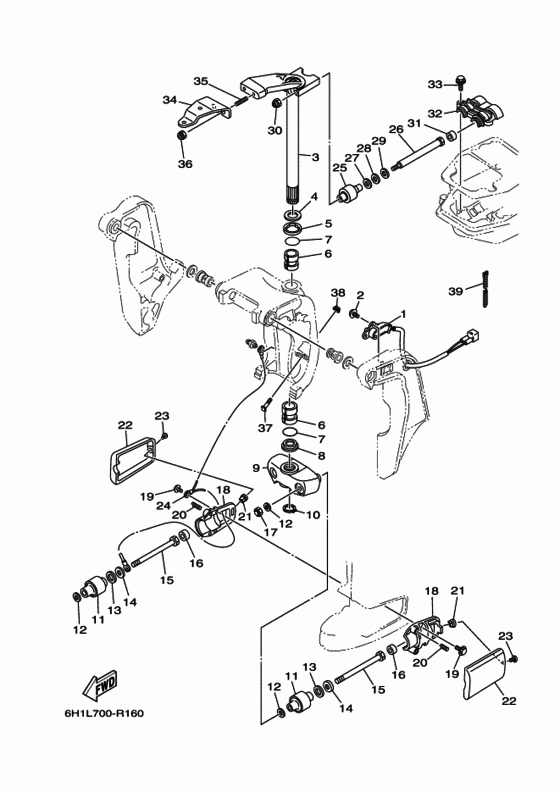

Bracket 2 Diagram Yamaha 90 ETOL
- Year
- 2017
- Model
- 90A
- Model code
- 6H1L
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Finland (090)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-83672-21-00 Trim Sender |
6H1-83672-21-00 |
from US $183.75 |
||
|
2
|
2
97985-06216-00 Screw, With Washer |
97985-06216-00 |
from US $1.42 |
||
|
3
|
3
688-42510-03-8D Steering Bracket Assy |
688-42510-03-8D |
from US $351.44 |
||
|
4
|
4
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $5.06 |
||
|
5
|
5
90386-30M78-00 Bush |
90386-30M78-00 |
from US $3.04 |
||
|
6
|
6
90386-30M77-00 Bush |
90386-30M77-00 |
from US $10.44 |
||
|
7
|
7
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2.36 |
||
|
8
|
8
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
9
|
9
663-44551-02-8D Housing, Lower Mount Rubber |
663-44551-02-8D |
from US $84.50 |
||
|
10
|
10
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
11
|
11
687-44555-00-00 Mount Damper, Lower Side |
687-44555-00-00 |
from US $73.22 |
||
|
12
|
12
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.70 |
||
|
13
|
13
90202-25M04-00 Washer, Plate |
90202-25M04-00 |
from US $3.04 |
||
|
14
|
14
90201-13M19-00 Washer, Plate |
90201-13M19-00 |
from US $6.74 |
||
|
15
|
15
901-09122-61-00 Bolt |
901-09122-61-00 |
from US $20.54 |
||
|
16
|
16
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
16
|
16
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
17
|
17
901-76120-04-00
Nut, Crown
|
901-76120-04-00 |
— | ||
|
18
|
18
687-44552-02-00 Housing, Lower Mount Rubber |
687-44552-02-00 |
from US $40.39 |
||
|
19
|
19
975-75085-25-00 Bolt, With Washer |
975-75085-25-00 |
US $2.69 |
||
|
20
|
20
90501-14M08-00 Spring, Compression(64J) |
90501-14M08-00 |
from US $4.53 |
||
|
21
|
21
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
22
|
22
663-44553-01-8D Cover, Lower Mount |
663-44553-01-8D |
from US $51.12 |
||
|
23
|
23
97885-06016-00 Screw, Pan Head |
97885-06016-00 |
from US $1.70 |
||
| replacements | |||||
|
23
|
23
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
23
|
23
901-57060-09-00 Screw, Pan Head |
901-57060-09-00 |
US $2.55 |
||
|
24
|
24
688-82127-02-00 Wire, Lead 2 |
688-82127-02-00 |
from US $25.64 |
||
|
25
|
25
688-44514-00-00 Mount Damper, Upper Side |
688-44514-00-00 |
from US $60.93 |
||
|
26
|
26
90101-10041-00 Bolt |
90101-10041-00 |
from US $19.27 |
||
|
27
|
27
90201-20M21-00 Washer, Plate |
90201-20M21-00 |
from US $4.04 |
||
|
28
|
28
90202-20M06-00 Washer, Plate |
90202-20M06-00 |
from US $3.04 |
||
|
29
|
29
90201-11M22-00 Washer, Plate |
90201-11M22-00 |
from US $4.38 |
||
|
30
|
30
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
31
|
31
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
31
|
31
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
32
|
32
688-44511-00-00 Cover, Upper Mount |
688-44511-00-00 |
from US $40.62 |
||
|
33
|
33
97575-08535-00 Bolt, With Washer |
97575-08535-00 |
US $2.13 |
||
| replacements | |||||
|
33
|
33
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
33
|
33
97E75-08535-00 Bolt, Hexagon W/w Deep Recess |
97E75-08535-00 |
from US $2.13 |
||
|
34
|
34
688-48511-12-00 Hook, SteeringSTEERING GUIDE |
688-48511-12-00 |
from US $75.85 |
||
|
35
|
35
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.97 |
||
|
36
|
36
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
37
|
37
6H1-43376-00-00 Bolt, Thrust Receiver |
6H1-43376-00-00 |
from US $22.39 |
||
|
38
|
38
901-85080-57-00
Nut, Self-Locking
|
901-85080-57-00 |
— | ||
| replacement | |||||
|
38
|
38
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
39
|
39
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
39
|
39
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
39
|
39
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
