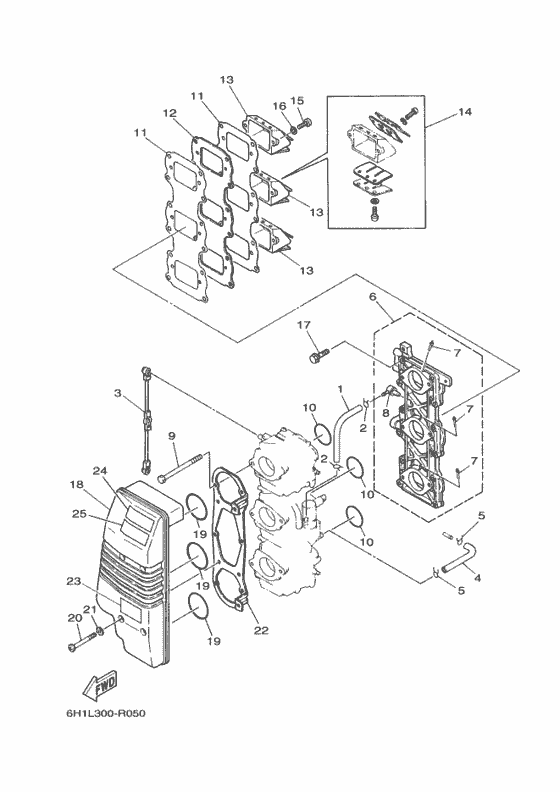

Intake Diagram Yamaha 90 ETOL
- Year
- 2017
- Model
- 90A
- Model code
- 6H1L
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Finland (090)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90445-07MA5-00 Hose (L150) |
90445-07MA5-00 |
US $3.83 |
||
| replacement | |||||
|
1
|
1
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $3.83 |
||
|
2
|
2
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
3
|
3
688-41217-01-00 Rod, Accel. Lever |
688-41217-01-00 |
from US $14.59 |
||
|
4
|
4
6H3-14349-00-00 Pipe |
6H3-14349-00-00 |
from US $3.68 |
||
|
5
|
5
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
6
|
6
6H1-13641-03-00 Manifold, Intake 1 |
6H1-13641-03-00 |
from US $93.76 |
||
|
7
|
7
6H1-14485-00-00 Pipe, Joint |
6H1-14485-00-00 |
from US $5.38 |
||
|
8
|
8
650-14485-03-00 Pipe, Joint |
650-14485-03-00 |
from US $7.37 |
||
|
9
|
9
97095-06095-00 Bolt |
97095-06095-00 |
from US $1.70 |
||
| replacement | |||||
|
9
|
9
97D95-06095-00 |
97D95-06095-00 |
from US $1.81 |
||
|
10
|
10
932-1039M-E4-00 O-Ring |
932-1039M-E4-00 |
from US $3.83 |
||
|
11
|
11
688-13621-A1-00 Gasket, Valve Seat |
688-13621-A1-00 |
from US $5.74 |
||
|
12
|
12
688-13624-00-00 Plate,reed Valve |
688-13624-00-00 |
from US $14.48 |
||
|
13
|
13
688-13610-00-00 Reed Valve Assy |
688-13610-00-00 |
from US $81.48 |
||
|
14
|
14
688-W0004-00-00 Reed Set |
688-W0004-00-00 |
from US $55.26 |
||
|
15
|
15
978-80050-20-00
Screw, Pan Head
|
978-80050-20-00 |
— | ||
| replacements | |||||
|
15
|
15
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
15
|
15
97885-05020-00 Screw, Pan Head |
97885-05020-00 |
from US $2.13 |
||
|
16
|
16
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
17
|
17
97513-06530-00 Bolt W/washer (63M) |
97513-06530-00 |
from US $3.12 |
||
| replacement | |||||
|
17
|
17
90119-06M06-00
Bolt, With Washer
|
90119-06M06-00 |
— | ||
|
18
|
18
6H1-14440-02-00 Silencer Assy, Intake |
6H1-14440-02-00 |
from US $76.82 |
||
|
19
|
19
932-10460-44-00 O-Ring |
932-10460-44-00 |
from US $2.77 |
||
|
20
|
20
97885-06050-00 Screw, Pan Head |
97885-06050-00 |
from US $3.26 |
||
| replacement | |||||
|
20
|
20
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
21
|
21
90209-06M05-00 Washer |
90209-06M05-00 |
from US $2.69 |
||
|
22
|
22
6H1-14413-02-00 Stay |
6H1-14413-02-00 |
from US $56.59 |
||
|
23
|
23
6H1-85711-60-00 Mark, Caution |
6H1-85711-60-00 |
from US $5.38 |
||
|
24
|
24
6EE-81994-40-00 Label, Safety |
6EE-81994-40-00 |
from US $10.20 |
||
| replacement | |||||
|
24
|
24
6EE-H1994-40-00 Label, Safety |
6EE-H1994-40-00 |
from US $10.20 |
||
|
25
|
25
6EE-81994-50-00 Label, Safety |
6EE-81994-50-00 |
from US $10.20 |
||
| replacement | |||||
|
25
|
25
6EE-H1994-50-00 Label, Safety |
6EE-H1994-50-00 |
from US $10.20 |
||
