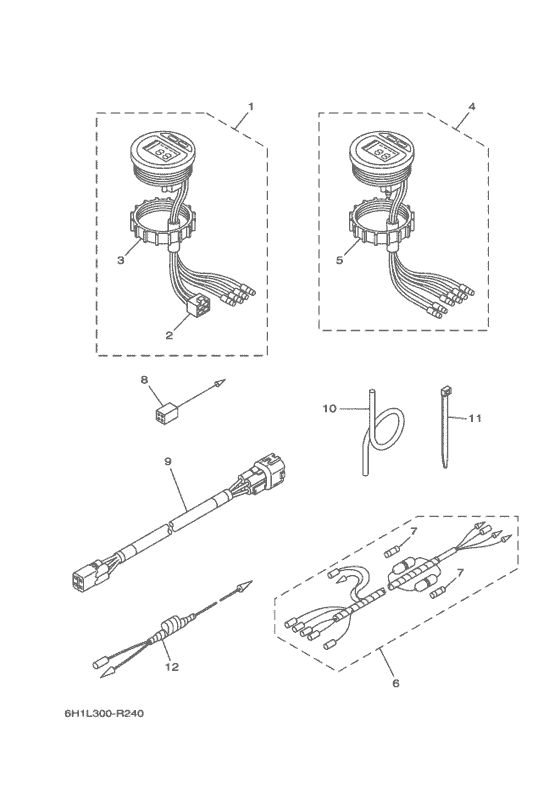

Meter Diagram Yamaha 90 ETOL
- Year
- 2017
- Model
- 90A
- Model code
- 6H1L
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Finland (090)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y5-8350T-E0-00 Tachometer AssyAP |
6Y5-8350T-E0-00 |
US $603.24 |
||
|
2
|
2
9E450-04533-00 ConnectorF-4-W |
9E450-04533-00 |
from US $9.07 |
||
|
3
|
3
6Y8-84383-00-00 Nut, Ring |
6Y8-84383-00-00 |
from US $36.34 |
||
|
4
|
4
6Y5-83570-A0-00 SPEEDOMETER ASSYAP |
6Y5-83570-A0-00 |
US $887.04 |
||
| replacement | |||||
|
4
|
4
6Y5-83570-A3-00 Meter Assy.AP |
6Y5-83570-A3-00 |
US $609.53 |
||
|
5
|
5
6Y8-84383-00-00 Nut, Ring |
6Y8-84383-00-00 |
from US $36.34 |
||
|
6
|
6
6Y5-83553-M0-00 Wire, Lead (L=2.5M)AP |
6Y5-83553-M0-00 |
US $61.34 |
||
| replacement | |||||
|
6
|
6
6Y5-83553-N0-00 Wire, Lead (L=2.5M)AP |
6Y5-83553-N0-00 |
US $88.98 |
||
|
7
|
7
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
|
8
|
8
6Y5-82117-00-00 Wire, Lead (Black) (L300)AP |
6Y5-82117-00-00 |
from US $6.52 |
||
|
9
|
9
6Y5-83653-30-00 Wire, Lead (L=8.0M)Wire, lead AP 4P,8M |
6Y5-83653-30-00 |
from US $109.35 |
||
|
10
|
10
6Y5-83557-10-00 Tube (8M)AP |
6Y5-83557-10-00 |
from US $15.19 |
||
|
11
|
11
904-6511M-10-00
Clamp
AP |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
11
|
11
80L-26397-00-00 BandAP |
80L-26397-00-00 |
from US $1.40 |
||
|
11
|
11
904-65100-98-00 ClampAP |
904-65100-98-00 |
from US $1.39 |
||
|
12
|
12
6H4-81315-11-00 Lead Wire AssyAP |
6H4-81315-11-00 |
from US $47.39 |
||
