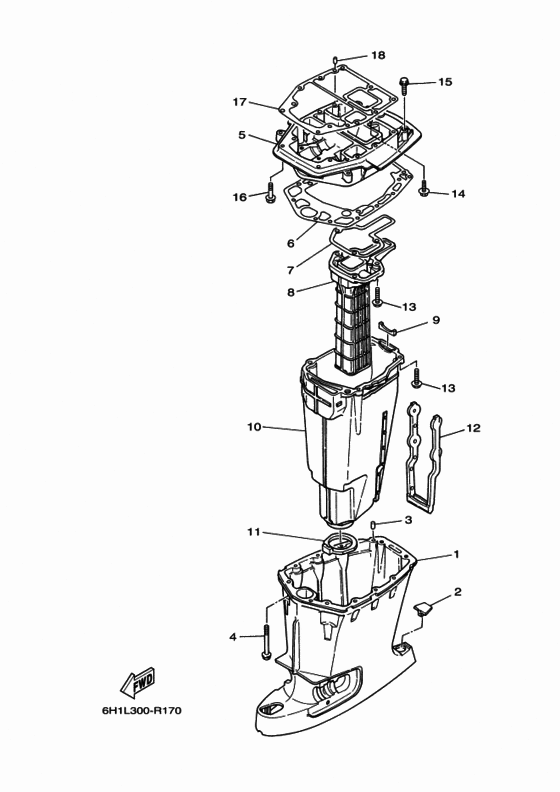

Upper casing Diagram Yamaha 90 ETOL
- Year
- 2017
- Model
- 90A
- Model code
- 6H1L
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Finland (090)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-45111-04-8D Casing, Upper |
688-45111-04-8D |
from US $690.36 |
||
|
2
|
2
663-45155-10-00 Cap |
663-45155-10-00 |
from US $14.59 |
||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
4
|
4
90119-08M80-00 Bolt, With Washer |
90119-08M80-00 |
from US $5.07 |
||
|
5
|
5
688-41137-09-CA GUIDE, EXHAUST |
688-41137-09-CA |
from US $405.11 |
||
|
6
|
6
688-45114-A1-00 Gasket, Upper Casing |
688-45114-A1-00 |
from US $15.08 |
||
|
7
|
7
688-41134-A0-00 Gasket, Exhaust Manifold |
688-41134-A0-00 |
from US $8.76 |
||
|
8
|
8
688-41131-00-CA Manifold, Ext. 1 |
688-41131-00-CA |
from US $49.16 |
||
|
9
|
9
688-41133-00-00 Gasket, Exhaust Manifold 1 |
688-41133-00-00 |
from US $4.96 |
||
|
10
|
10
688-14711-01-CA Muffler 1 |
688-14711-01-CA |
from US $219.67 |
||
|
11
|
11
688-45123-00-00 Gasket, Muffler |
688-45123-00-00 |
from US $11.80 |
||
|
12
|
12
663-14737-10-00 Damper, Muffler |
663-14737-10-00 |
from US $28.62 |
||
|
13
|
13
97575-08530-00 Bolt, With Washer |
97575-08530-00 |
US $1.98 |
||
| replacement | |||||
|
13
|
13
97E75-08530-00 Bolt, Hexagon W/w De |
97E75-08530-00 |
from US $1.98 |
||
|
14
|
14
975-75085-25-00 Bolt, With Washer |
975-75085-25-00 |
US $2.69 |
||
|
15
|
15
97575-08530-00 Bolt, With Washer |
97575-08530-00 |
US $1.98 |
||
| replacement | |||||
|
15
|
15
97E75-08530-00 Bolt, Hexagon W/w De |
97E75-08530-00 |
from US $1.98 |
||
|
16
|
16
97575-08535-00 Bolt, With Washer |
97575-08535-00 |
US $2.13 |
||
| replacements | |||||
|
16
|
16
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
16
|
16
97E75-08535-00 Bolt, Hexagon W/w Deep Recess |
97E75-08535-00 |
from US $2.13 |
||
|
17
|
17
688-45113-A0-00 Gasket, Upper Casing |
688-45113-A0-00 |
from US $9.44 |
||
|
18
|
18
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
