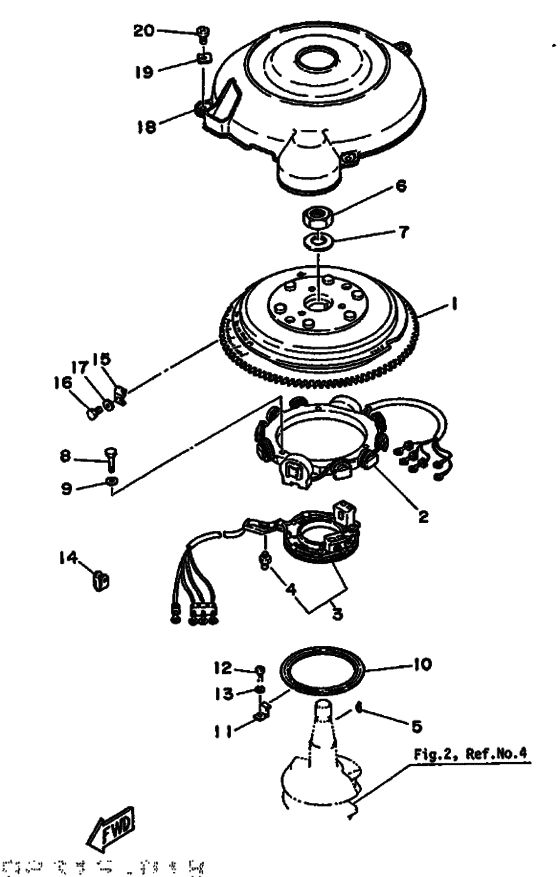

Magneto Diagram Yamaha 90 ETOL/XL
- Year
- 1987
- Model
- 90A
- Model code
- 6H1
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-85550-12-00
Rotor Assy
|
688-85550-12-00 |
— | ||
| replacement | |||||
|
1
|
1
688-85550-13-00
Rotor Assembly
|
688-85550-13-00 |
— | ||
|
2
|
2
688-85510-11-00
Stator Assembly
|
688-85510-11-00 |
— | ||
|
3
|
3
688-85580-12-00
Coil, Pulser
|
688-85580-12-00 |
— | ||
|
4
|
4
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
5
|
5
902-80050-15-00
Key, Woodruff
|
902-80050-15-00 |
— | ||
| replacement | |||||
|
5
|
5
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $5.06 |
||
|
6
|
6
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
|
7
|
7
90201-21M18-00 Washer, Plate |
90201-21M18-00 |
from US $7.08 |
||
|
8
|
8
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
8
|
8
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
9
|
9
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
10
|
10
688-41611-00-00 Retainer, Magneto Base |
688-41611-00-00 |
from US $11.90 |
||
|
11
|
11
688-41612-00-00 Retainer, Magneto Base |
688-41612-00-00 |
from US $5.67 |
||
|
12
|
12
97803-06012-00 Screw, Pan Head |
97803-06012-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
13
|
13
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
90464-12M00-00
Clamp
|
90464-12M00-00 |
— | ||
| replacement | |||||
|
14
|
14
90464-12158-00
Clamp
|
90464-12158-00 |
— | ||
|
15
|
15
688-81332-01-00 Plate, Timing |
688-81332-01-00 |
from US $6.23 |
||
|
16
|
16
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
16
|
16
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
17
|
17
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
18
|
18
6H1-81337-00-00 Cover, Flywheel |
6H1-81337-00-00 |
US $54.30 |
||
| replacement | |||||
|
18
|
18
6H1-81337-01-00 Cover, Flywheel |
6H1-81337-01-00 |
from US $38.57 |
||
|
19
|
19
90209-06M04-00
Washer
|
90209-06M04-00 |
— | ||
|
20
|
20
97803-06012-00 Screw, Pan Head |
97803-06012-00 |
US $1.56 |
||
| replacement | |||||
|
20
|
20
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
