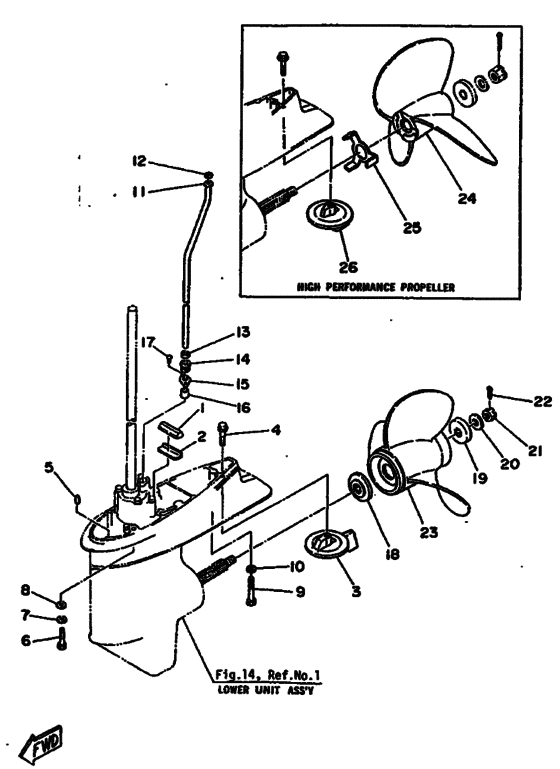

Lower casing & drive 2 Diagram Yamaha 90 ETOL/XL
- Year
- 1985
- Model
- 90A
- Model code
- 6H1
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-45375-00-00 Damper, Seal |
688-45375-00-00 |
from US $6.66 |
||
|
2
|
2
663-45376-00-94
Guide, Seal Damper
|
663-45376-00-94 |
— | ||
| replacement | |||||
|
2
|
2
663-45376-00-00 Guide, Seal Damper |
663-45376-00-00 |
from US $5.82 |
||
|
3
|
3
688-45371-02-00 Tab-Trim |
688-45371-02-00 |
US $31.88 |
||
| replacement | |||||
|
3
|
3
67F-45371-00-00 Tab-Trim |
67F-45371-00-00 |
from US $21.64 |
||
|
4
|
4
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $6.40 |
||
|
5
|
5
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
6
|
6
97375-10040-00 Bolt |
97375-10040-00 |
from US $3.40 |
||
| replacements | |||||
|
6
|
6
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.67 |
||
|
6
|
6
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.67 |
||
|
7
|
7
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
8
|
8
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
9
|
9
97395-08060-00 Bolt, Hexagon |
97395-08060-00 |
from US $9.32 |
||
| replacement | |||||
|
9
|
9
970-95080-60-00 Bolt, Hexagon |
970-95080-60-00 |
from US $5.56 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
11
|
11
688-44361-10-00 Tube, Water 1UR |
688-44361-10-00 |
from US $19.88 |
||
|
11
|
11
688-44361-20-00 Tube, Water 1UR (NOT SHOWN) |
688-44361-20-00 |
from US $31.32 |
||
|
12
|
12
90202-12060-00 Washer, Plate |
90202-12060-00 |
from US $2.77 |
||
|
13
|
13
904-30120-72-00 Gasket |
904-30120-72-00 |
from US $3.38 |
||
|
14
|
14
663-44367-00-00 Damper, Water Seal 3 |
663-44367-00-00 |
US $3.90 |
||
|
15
|
15
90480-19M06-00 Grommet |
90480-19M06-00 |
from US $4.86 |
||
|
16
|
16
663-44366-00-00 Damper, Water Seal 2 |
663-44366-00-00 |
from US $3.74 |
||
|
17
|
17
97780-40512-00 Screw, Tapping |
97780-40512-00 |
US $1.84 |
||
| replacement | |||||
|
17
|
17
97780-40112-00 Screw, Oval Head Tapping |
97780-40112-00 |
from US $1.84 |
||
|
18
|
18
688-45987-00-00 Spacer 1 |
688-45987-00-00 |
US $64.24 |
||
| replacement | |||||
|
18
|
18
688-45987-01-00 Spacer 1 |
688-45987-01-00 |
from US $63.30 |
||
|
19
|
19
688-45997-00-00 Spacer 2 |
688-45997-00-00 |
US $51.26 |
||
| replacement | |||||
|
19
|
19
688-45997-01-00 Spacer 2 |
688-45997-01-00 |
from US $27.28 |
||
|
20
|
20
90201-17M25-00 Washer, Plate |
90201-17M25-00 |
US $5.10 |
||
| replacement | |||||
|
20
|
20
90201-17M00-00 Washer, Plate |
90201-17M00-00 |
from US $4.72 |
||
|
21
|
21
90171-16011-00 Nut, Castle |
90171-16011-00 |
from US $8.08 |
||
|
22
|
22
91490-40025-00 Pin. Cotter |
91490-40025-00 |
US $2.69 |
||
| replacement | |||||
|
22
|
22
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2.36 |
||
|
23
|
23
6E5-45941-00-36 Propeller AssyUR |
6E5-45941-00-36 |
US $316.39 |
||
| replacement | |||||
|
23
|
23
6E5-45941-00-00 Propeller (3X13"x19"-K)UR |
6E5-45941-00-00 |
from US $297.68 |
||
|
23
|
23
688-45972-01-98 Propeller (3X12 5/8""x21""-K)UR STAINLESS STEEL PROPELL |
688-45972-01-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45972-02-00 Propeller (3X13"x21"-K)UR STAINLESS STEEL PROPELL |
688-45972-02-00 |
from US $872.52 |
||
|
23
|
23
688-45974-01-98 Propeller AssyUR STAINLESS STEEL PROPELL |
688-45974-01-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45974-02-00 Propeller (3X13"x23"-K)UR STAINLESS STEEL PROPELL |
688-45974-02-00 |
from US $872.52 |
||
|
23
|
23
688-45976-01-98 Propeller AssyUR STAINLESS STEEL PROPELL |
688-45976-01-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45976-01-00 Propeller (3X13"x25"-K)UR STAINLESS STEEL PROPELL |
688-45976-01-00 |
from US $872.52 |
||
|
23
|
23
688-45978-60-98 Propeller AssyUR STAINLESS STEEL PROPELL |
688-45978-60-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45978-60-00 Propeller (3X13-1/2"x16"-K)UR STAINLESS STEEL PROPELL |
688-45978-60-00 |
from US $872.52 |
||
|
23
|
23
688-45930-60-98 Propeller AssyPropeller assy 25 (3x13 1/2"x17"-k) UR STAINLESS STEEL PROPELL |
688-45930-60-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45930-02-00 Propeller (3X13"x17"-K2)UR STAINLESS STEEL PROPELL |
688-45930-02-00 |
from US $872.52 |
||
|
23
|
23
688-45932-60-98 Propeller AssyUR STAINLESS STEEL PROPELL |
688-45932-60-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45932-60-00 Propeller (3X13-1/2"x14"-K)UR STAINLESS STEEL PROPELL |
688-45932-60-00 |
from US $872.52 |
||
|
23
|
23
6E5-45943-00-36 Propeller AssyUR |
6E5-45943-00-36 |
US $316.39 |
||
| replacement | |||||
|
23
|
23
6E5-45943-00-00 Propeller (3X12-5/8"x21"-K)UR |
6E5-45943-00-00 |
from US $297.68 |
||
|
23
|
23
6E5-45945-00-36 Propeller AssyPropeller assy 3 (3x13 1/2"x17"-k) UR |
6E5-45945-00-36 |
US $316.39 |
||
| replacement | |||||
|
23
|
23
6E5-45945-01-00 Propeller (3X13-1/4"x17"-K)UR |
6E5-45945-01-00 |
from US $207.02 |
||
|
23
|
23
6E5-45947-00-36 Propeller AssyPropeller assy 4 (3x13 1/2"x15"-k) UR |
6E5-45947-00-36 |
US $316.39 |
||
| replacement | |||||
|
23
|
23
6E5-45947-00-00 Propeller (3X13-1/2"x15"-K)UR |
6E5-45947-00-00 |
from US $212.42 |
||
|
23
|
23
6E5-45949-00-36 Propeller AssyPropeller assy 5 (3x14"x13"-k) UR |
6E5-45949-00-36 |
US $316.39 |
||
| replacement | |||||
|
23
|
23
6E5-45949-00-00 Propeller (3X13-5/8"x13"-K)UR |
6E5-45949-00-00 |
from US $297.68 |
||
|
23
|
23
6E5-45952-00-36 Propeller AssyUR |
6E5-45952-00-36 |
US $316.39 |
||
| replacement | |||||
|
23
|
23
6E5-45952-00-00 Propeller (3X13"x23"-K)UR |
6E5-45952-00-00 |
from US $297.68 |
||
|
23
|
23
6E5-45954-00-36 Propeller AssyUR |
6E5-45954-00-36 |
US $316.39 |
||
| replacement | |||||
|
23
|
23
6E5-45954-00-00 Propeller (3X14"x11 "-K)UR |
6E5-45954-00-00 |
from US $297.68 |
||
|
23
|
23
6E5-45956-00-00 Propeller (3X13"x25"-K)UR |
6E5-45956-00-00 |
from US $297.68 |
||
|
23
|
23
688-45970-01-98 Propeller AssyPropeller assy 20 (3x13 1/2"x19"-k) UR STAINLESS STEEL PROPELL |
688-45970-01-98 |
US $872.52 |
||
| replacement | |||||
|
23
|
23
688-45970-03-00 Propeller (3X13"x19"-K)UR STAINLESS STEEL PROPELL |
688-45970-03-00 |
from US $872.52 |
||
|
24
|
24
6E5-45970-10-00 Propeller (3X14"x20"-P)UR HIGH PERFORMANCE PROPEL |
6E5-45970-10-00 |
from US $1,099.70 |
||
|
24
|
24
6E5-45972-10-00 Propeller (3X14"x24"-P)UR HIGH PERFORMANCE PROPEL |
6E5-45972-10-00 |
from US $1,099.70 |
||
|
24
|
24
6E5-45974-10-00 Propeller (3X14"x28"-P)UR HIGH PERFORMANCE PROPEL |
6E5-45974-10-00 |
from US $1,099.70 |
||
|
24
|
24
6E5-45976-10-00 Propeller (3X14"x22"-P)UR HIGH PERFORMANCE PROPEL |
6E5-45976-10-00 |
from US $1,099.70 |
||
|
24
|
24
6E5-45978-10-00 Propeller (3X14"x26"-P)UR HIGH PERFORMANCE PROPEL |
6E5-45978-10-00 |
from US $1,099.70 |
||
|
25
|
25
6E5-45994-10-00 Plate, ToothUR |
6E5-45994-10-00 |
from US $55.40 |
||
|
26
|
26
6E5-45371-10-00 Tab-TrimUR |
6E5-45371-10-00 |
from US $29.33 |
||
