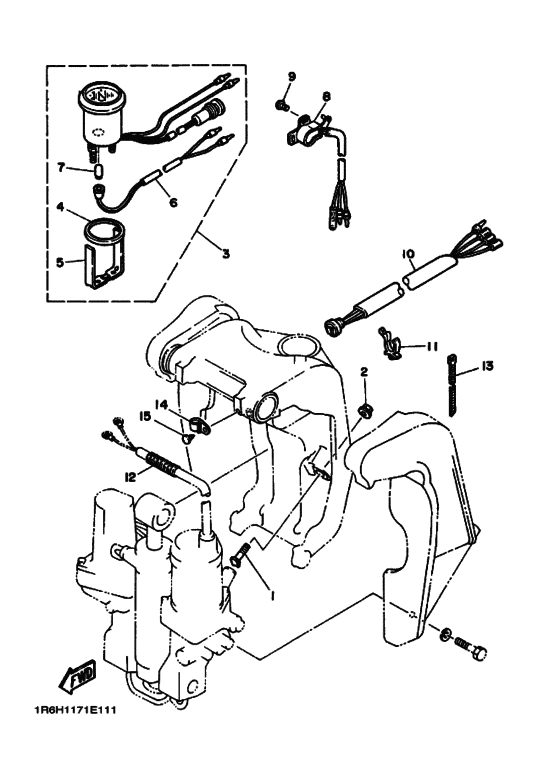

Bracket 2 Diagram Yamaha 90 ETOL/XL
- Year
- 1995
- Model
- 90A
- Model code
- 6H1
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-43376-00-00 Bolt, Thrust Receiver |
6H1-43376-00-00 |
from US $22.39 |
||
|
2
|
2
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
3
|
3
6Y5-83670-10-00
Pro Series 11 Trim Meter (Black)
|
6Y5-83670-10-00 |
— | ||
|
4
|
4
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
5
|
5
6Y5-83577-00-00 Plate, Fitting |
6Y5-83577-00-00 |
from US $8.50 |
||
|
6
|
6
6Y5-83536-20-00 Socket, Meter |
6Y5-83536-20-00 |
from US $11.90 |
||
|
7
|
7
6Y5-83518-00-00 Bulb (12V-1.7W T6.5) |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
7
|
7
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $4.99 |
||
|
8
|
8
6H1-83672-10-00
Trim Sender
|
6H1-83672-10-00 |
— | ||
|
9
|
9
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
10
|
10
6E5-82553-10-00
Extension, Wire Harness
|
6E5-82553-10-00 |
— | ||
|
11
|
11
90464-15M08-00 Clamp |
90464-15M08-00 |
from US $1.94 |
||
|
12
|
12
90440-14M00-00 Pipe |
90440-14M00-00 |
from US $2.55 |
||
|
13
|
13
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
13
|
13
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
13
|
13
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
14
|
14
90464-11M18-00 Clamp |
90464-11M18-00 |
from US $1.84 |
||
|
15
|
15
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
