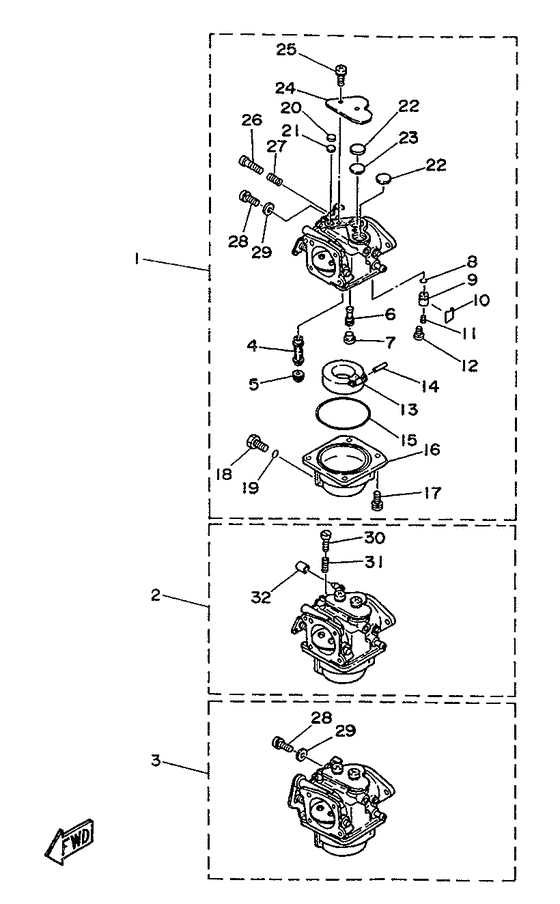

Carburetor Diagram Yamaha 90 ETOL/XL
- Year
- 1990
- Model
- 90A
- Model code
- 6H1
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H0-14301-15-00
Carburetor Assembly 1
Ur |
6H0-14301-15-00 |
— | ||
|
01
|
01
6H1-14301-15-00
Carburetor Assembly 1
Ur |
6H1-14301-15-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
02
|
02
6H1-14302-15-00
Carburetor Assembly 2
Ur |
6H1-14302-15-00 |
— | ||
|
02
|
02
6H0-14302-15-00
Carburetor Assembly 2
Ur |
6H0-14302-15-00 |
— | ||
|
03
|
03
6H0-14303-15-00
Carburetor Assembly 3
Ur |
6H0-14303-15-00 |
— | ||
|
03
|
03
6H1-14303-15-00
Carburetor (Lower)
Ur |
6H1-14303-15-00 |
— | ||
|
04
|
04
6H0-14947-01-00
Jet, Needle
Ur |
6H0-14947-01-00 |
— | ||
|
04
|
04
6H1-14947-14-00
Jet, Needle
Ur |
6H1-14947-14-00 |
— | ||
|
05
|
05
676-14943-39-00 Jet, Main (#160)Ur |
676-14943-39-00 |
US $19.69 |
||
| replacement | |||||
|
05
|
05
6H1-14943-39-00 Jet, Main (#160)Ur |
6H1-14943-39-00 |
from US $11.46 |
||
|
05
|
05
676-14943-40-00 Jet, Main (165)Ur |
676-14943-40-00 |
from US $10.44 |
||
|
06
|
06
6E9-14948-19-00
Jet
Ur |
6E9-14948-19-00 |
— | ||
|
06
|
06
6H1-14948-18-00 Jet (#78)Ur |
6H1-14948-18-00 |
from US $14.31 |
||
|
07
|
07
676-14966-00-00
Cap
|
676-14966-00-00 |
— | ||
| replacement | |||||
|
07
|
07
679-14966-00-00 Rubber Cap |
679-14966-00-00 |
from US $3.20 |
||
|
08
|
08
93210-04228-00 O-Ring |
93210-04228-00 |
from US $2.02 |
||
|
09
|
09
692-14590-00-00 Valve Seat |
692-14590-00-00 |
US $41.59 |
||
| replacements | |||||
|
09
|
09
692-14590-01-00 Valve Seat |
692-14590-01-00 |
from US $40.06 |
||
|
09
|
09
692-14590-02-00 NEEDLE VALVE ASSY |
692-14590-02-00 |
from US $41.59 |
||
|
10
|
10
663-14159-00-00
Clip
|
663-14159-00-00 |
— | ||
| replacement | |||||
|
10
|
10
633-14159-00-00 Clip |
633-14159-00-00 |
from US $7.21 |
||
|
11
|
11
676-14186-00-00 Pin, Float |
676-14186-00-00 |
from US $2.02 |
||
|
12
|
12
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
13
|
13
676-14985-01-00 Float |
676-14985-01-00 |
from US $20.88 |
||
|
14
|
14
688-14548-00-00 Pin, Float Arm |
688-14548-00-00 |
from US $2.36 |
||
|
15
|
15
676-14984-00-00 Gasket, Float Chamber |
676-14984-00-00 |
from US $8.22 |
||
|
16
|
16
688-14980-00-00 Body, Float Chamber |
688-14980-00-00 |
from US $52.22 |
||
|
17
|
17
979-80041-14-00
Screw, With Washer
|
979-80041-14-00 |
— | ||
| replacement | |||||
|
17
|
17
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
18
|
18
6H3-14992-00-00 Screw, Drain |
6H3-14992-00-00 |
from US $5.40 |
||
| replacement | |||||
|
18
|
18
6H3-14992-01-00 Screw, Drain |
6H3-14992-01-00 |
from US $6.80 |
||
|
19
|
19
93210-04230-00 O-Ring |
93210-04230-00 |
from US $2.77 |
||
|
20
|
20
663-14126-00-00 Gasket |
663-14126-00-00 |
from US $3.26 |
||
|
21
|
21
663-14527-00-00 Plate |
663-14527-00-00 |
from US $3.68 |
||
|
22
|
22
688-14126-00-00 Gasket |
688-14126-00-00 |
from US $4.39 |
||
|
23
|
23
688-14527-00-00 Plate |
688-14527-00-00 |
from US $4.39 |
||
|
24
|
24
688-14572-01-00 Plate, Stay |
688-14572-01-00 |
from US $16.15 |
||
|
25
|
25
97980-05310-00 Screw, With Washer |
97980-05310-00 |
from US $2.55 |
||
|
26
|
26
692-14923-00-00 Screw, Pilot |
692-14923-00-00 |
from US $10.83 |
||
|
27
|
27
679-14555-00-00
Spring
|
679-14555-00-00 |
— | ||
| replacement | |||||
|
27
|
27
697-14555-00-00 Spring |
697-14555-00-00 |
from US $4.95 |
||
|
28
|
28
663-14592-00-00 Screw |
663-14592-00-00 |
US $7.69 |
||
|
29
|
29
90201-05652-00 Washer,plate |
90201-05652-00 |
US $2.13 |
||
| replacement | |||||
|
29
|
29
90201-05552-00 Washer, Plate |
90201-05552-00 |
from US $1.98 |
||
|
30
|
30
663-14523-00-00 Screw, Stop |
663-14523-00-00 |
US $5.95 |
||
| replacement | |||||
|
30
|
30
63V-14523-00-00 Screw, Stop |
63V-14523-00-00 |
from US $5.95 |
||
|
31
|
31
90501-10326-00 Spring, Compression |
90501-10326-00 |
from US $3.72 |
||
|
32
|
32
6H2-14578-00-00 Collar |
6H2-14578-00-00 |
from US $9.07 |
||
