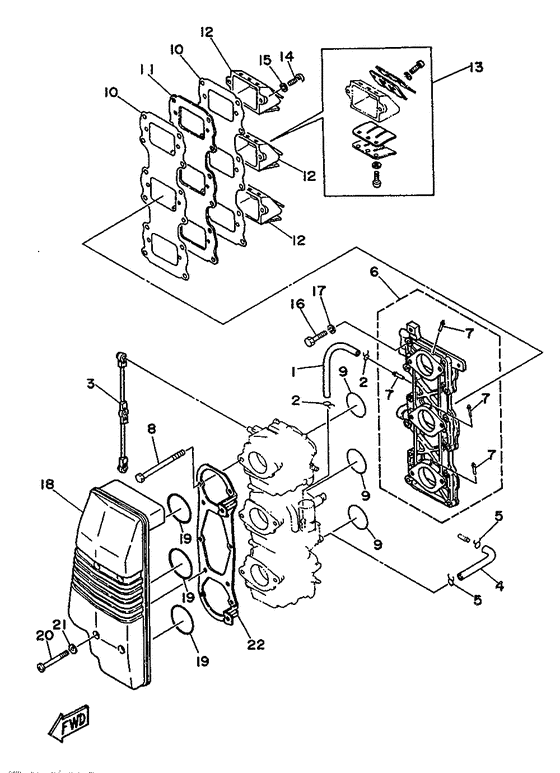

Intake Diagram Yamaha 90 ETOL/XL
- Year
- 1994
- Model
- 90A
- Model code
- 6H1
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
904-4507M-23-00
Hose (L408)
|
904-4507M-23-00 |
— | ||
| replacement | |||||
|
01
|
01
90445-07MF1-00 Hose (L570) |
90445-07MF1-00 |
from US $4.39 |
||
|
02
|
02
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
03
|
03
688-41217-01-00 Rod, Accel. Lever |
688-41217-01-00 |
from US $14.59 |
||
|
04
|
04
6H3-14349-00-00 Pipe |
6H3-14349-00-00 |
from US $3.68 |
||
|
05
|
05
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
06
|
06
6H1-13641-02-94 Manifold, Intake 1 |
6H1-13641-02-94 |
US $161.65 |
||
| replacement | |||||
|
06
|
06
99999-04031-00 element |
99999-04031-00 |
from US $104.49 |
||
|
07
|
07
6H1-14485-00-00 Pipe, Joint |
6H1-14485-00-00 |
from US $5.38 |
||
|
08
|
08
97395-06095-00 Bolt |
97395-06095-00 |
from US $1.70 |
||
| replacements | |||||
|
08
|
08
97095-06095-00 Bolt |
97095-06095-00 |
from US $1.70 |
||
|
08
|
08
97D95-06095-00 |
97D95-06095-00 |
from US $1.81 |
||
|
09
|
09
932-1039M-E4-00 O-Ring |
932-1039M-E4-00 |
from US $3.83 |
||
|
10
|
10
688-13621-A1-00 Gasket, Valve Seat |
688-13621-A1-00 |
from US $5.74 |
||
|
11
|
11
688-13624-00-00 Plate,reed Valve |
688-13624-00-00 |
from US $14.48 |
||
|
12
|
12
688-13610-00-00 Reed Valve Assy |
688-13610-00-00 |
from US $81.48 |
||
|
13
|
13
688-W0004-00-00 Reed Set |
688-W0004-00-00 |
from US $55.26 |
||
|
14
|
14
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
16
|
16
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
6H1-14440-02-00 Silencer Assy, Intake |
6H1-14440-02-00 |
from US $76.82 |
||
|
19
|
19
932-10460-44-00 O-Ring |
932-10460-44-00 |
from US $2.77 |
||
|
20
|
20
97885-06050-00 Screw, Pan Head |
97885-06050-00 |
from US $3.26 |
||
| replacement | |||||
|
20
|
20
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
21
|
21
90209-06M05-00 Washer |
90209-06M05-00 |
from US $2.69 |
||
|
22
|
22
6H1-14413-02-00 Stay |
6H1-14413-02-00 |
from US $56.59 |
||
