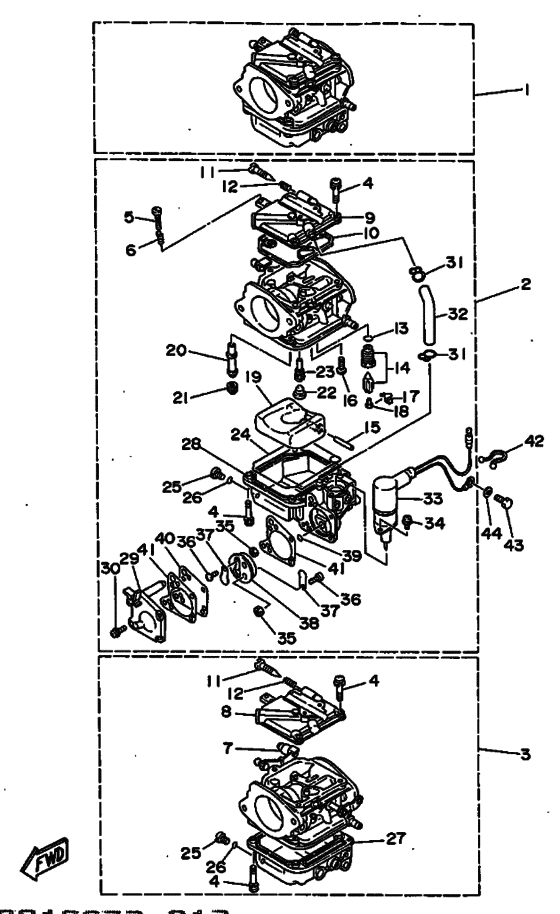

Carburetor Diagram Yamaha 90 ETOL/XL
- Year
- 1997
- Model
- 90A
- Model code
- 6H1
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-14301-07-00
Carburetor Assy 1
UR 90A |
6H1-14301-07-00 |
— | ||
| replacements | |||||
|
1
|
1
6H1-14301-08-00 Carburetor Assy 1UR 90A |
6H1-14301-08-00 |
US $558.84 |
||
|
1
|
1
6H1-14301-0B-00 Carburetor Assy 1UR 90A |
6H1-14301-0B-00 |
from US $436.59 |
||
|
1
|
1
6H0-14301-07-00 Carburetor Assembly 1UR P75 |
6H0-14301-07-00 |
US $531.96 |
||
| replacement | |||||
|
1
|
1
6H0-14301-08-00 Carburetor Assy 1UR P75 |
6H0-14301-08-00 |
from US $449.44 |
||
|
2
|
2
6H1-14302-07-00
Carburetor Assy 2
UR 90A |
6H1-14302-07-00 |
— | ||
| replacements | |||||
|
2
|
2
6H1-14302-08-00 Carburetor Assy 2UR 90A |
6H1-14302-08-00 |
US $538.88 |
||
|
2
|
2
6H1-14302-0B-00 Carburetor Assy 2UR 90A |
6H1-14302-0B-00 |
from US $458.46 |
||
|
2
|
2
6H0-14302-07-00 Carburetor Assembly 2UR P75 |
6H0-14302-07-00 |
US $463.76 |
||
| replacement | |||||
|
2
|
2
6H0-14302-08-00 Carburetor Assy 2UR P75 |
6H0-14302-08-00 |
from US $441.94 |
||
|
3
|
3
6H1-14303-07-00
Carburetor Assy 3
UR 90A |
6H1-14303-07-00 |
— | ||
| replacements | |||||
|
3
|
3
6H1-14303-08-00 Carburetor Assy 3UR 90A |
6H1-14303-08-00 |
US $558.84 |
||
|
3
|
3
6H1-14303-0B-00 Carburetor Assy 3UR 90A |
6H1-14303-0B-00 |
from US $518.19 |
||
|
3
|
3
6H0-14303-07-00 Carburetor Assembly 3UR P75 |
6H0-14303-07-00 |
US $463.76 |
||
| replacement | |||||
|
3
|
3
6H0-14303-08-00 Carburetor Assy 3UR P75 |
6H0-14303-08-00 |
from US $441.94 |
||
|
4
|
4
979-80041-14-00
Screw, With Washer
|
979-80041-14-00 |
— | ||
| replacement | |||||
|
4
|
4
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
5
|
5
63V-14523-00-00 Screw, StopCENTER |
63V-14523-00-00 |
from US $5.95 |
||
|
6
|
6
90501-10326-00 Spring, CompressionCENTER |
90501-10326-00 |
from US $3.72 |
||
|
7
|
7
6H2-14578-00-00 CollarLOWER |
6H2-14578-00-00 |
from US $9.07 |
||
|
8
|
8
6H4-14146-00-00 PlateUPPER/LOWER |
6H4-14146-00-00 |
from US $28.46 |
||
|
9
|
9
6H3-14146-10-00 PlateCENTER |
6H3-14146-10-00 |
from US $53.19 |
||
|
10
|
10
6H4-14147-00-00 O-Ring |
6H4-14147-00-00 |
from US $6.80 |
||
|
11
|
11
682-14923-00-00
Screw, Pilot
|
682-14923-00-00 |
— | ||
|
12
|
12
697-14555-00-00 Spring |
697-14555-00-00 |
from US $4.95 |
||
|
13
|
13
93210-04228-00 O-Ring |
93210-04228-00 |
from US $2.02 |
||
|
14
|
14
692-14590-00-00 Valve Seat |
692-14590-00-00 |
US $41.59 |
||
| replacements | |||||
|
14
|
14
692-14590-01-00 Valve Seat |
692-14590-01-00 |
from US $40.06 |
||
|
14
|
14
692-14590-02-00 NEEDLE VALVE ASSY |
692-14590-02-00 |
from US $41.59 |
||
|
15
|
15
6H4-14548-00-00 Pin, Float Arm |
6H4-14548-00-00 |
from US $4.16 |
||
|
16
|
16
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
17
|
17
663-14159-00-00
Clip
|
663-14159-00-00 |
— | ||
| replacement | |||||
|
17
|
17
633-14159-00-00 Clip |
633-14159-00-00 |
from US $7.21 |
||
|
18
|
18
676-14186-00-00 Pin, Float |
676-14186-00-00 |
from US $2.02 |
||
|
19
|
19
6H4-14985-01-00 Float |
6H4-14985-01-00 |
from US $25.36 |
||
|
20
|
20
6H1-14947-75-00 Jet, Needle |
6H1-14947-75-00 |
from US $27.63 |
||
|
21
|
21
6H1-14943-39-00 Jet, Main (#160) |
6H1-14943-39-00 |
from US $11.46 |
||
|
22
|
22
676-14966-00-00
Cap
|
676-14966-00-00 |
— | ||
| replacement | |||||
|
22
|
22
679-14966-00-00 Rubber Cap |
679-14966-00-00 |
from US $3.20 |
||
|
23
|
23
6H1-14948-18-00 Jet (#78) |
6H1-14948-18-00 |
from US $14.31 |
||
|
24
|
24
6H4-14984-00-00 Gasket, Float Chamber |
6H4-14984-00-00 |
from US $8.60 |
||
|
25
|
25
6H3-14992-00-00 Screw, Drain |
6H3-14992-00-00 |
from US $5.40 |
||
| replacement | |||||
|
25
|
25
6H3-14992-01-00 Screw, Drain |
6H3-14992-01-00 |
from US $6.80 |
||
|
26
|
26
93210-04230-00 O-Ring |
93210-04230-00 |
from US $2.77 |
||
|
27
|
27
6H4-14980-00-00 Body, Float ChamberUPPER/LOWER |
6H4-14980-00-00 |
from US $53.19 |
||
|
28
|
28
6H3-14980-10-00 Body, Float ChamberCENTER |
6H3-14980-10-00 |
US $69.22 |
||
|
29
|
29
6H3-24452-10-00 CoverCENTER |
6H3-24452-10-00 |
from US $61.07 |
||
|
30
|
30
6H4-14567-00-00 ScrewCENTER |
6H4-14567-00-00 |
US $6.23 |
||
| replacement | |||||
|
30
|
30
6H4-14567-09-00 SCREWCENTER |
6H4-14567-09-00 |
from US $4.99 |
||
|
31
|
31
6H3-14137-00-00 ClipCENTER |
6H3-14137-00-00 |
from US $2.16 |
||
| replacement | |||||
|
31
|
31
5BF-14919-00-00 ClipCENTER |
5BF-14919-00-00 |
from US $2.98 |
||
|
32
|
32
6H3-14349-00-00 PipeCENTER |
6H3-14349-00-00 |
from US $3.68 |
||
|
33
|
33
6H3-14380-00-00 Starter AssyCENTER |
6H3-14380-00-00 |
US $244.54 |
||
|
34
|
34
98580-04008-00 Screw, Pan Head (713)CENTER |
98580-04008-00 |
from US $1.36 |
||
|
35
|
35
95380-03600-00 NutCENTER |
95380-03600-00 |
from US $1.56 |
||
|
36
|
36
98980-03006-00 Screw, BindCENTER |
98980-03006-00 |
from US $1.56 |
||
|
37
|
37
6L5-24421-00-00 Valve, CheckCENTER |
6L5-24421-00-00 |
from US $6.06 |
||
|
38
|
38
6H4-24413-00-00 Body 2CENTER |
6H4-24413-00-00 |
from US $30.89 |
||
|
39
|
39
6H4-24486-00-00 O-RingCENTER |
6H4-24486-00-00 |
US $2.41 |
||
| replacement | |||||
|
39
|
39
67F-14398-20-00 O-RingCENTER |
67F-14398-20-00 |
from US $2.36 |
||
|
40
|
40
6H3-24411-10-00 DiaphragmCENTER |
6H3-24411-10-00 |
from US $14.38 |
||
|
41
|
41
6H3-24434-10-00 Gasket, BodyCENTER |
6H3-24434-10-00 |
from US $15.70 |
||
|
42
|
42
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
43
|
43
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
43
|
43
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
44
|
44
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
