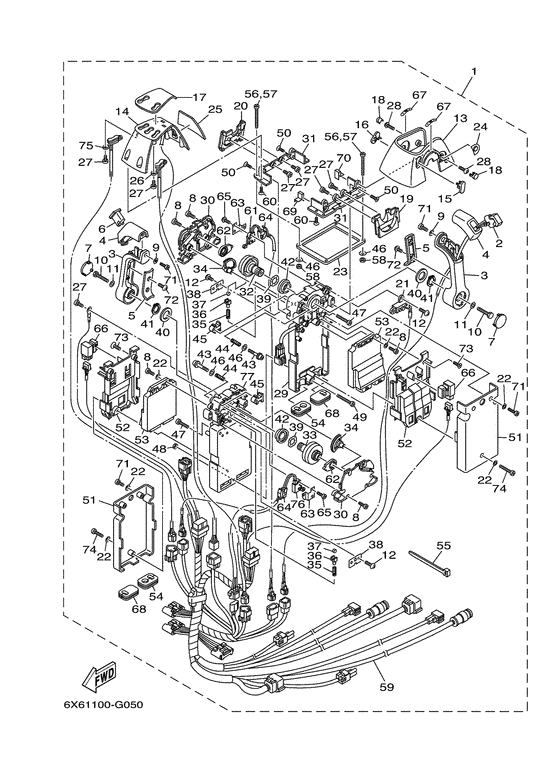

Dbw remote control 2 (TWIN) Diagram Yamaha Accessories
- Year
- 2008
- Model
- DBW REMO-CON
- Model code
- 6X61
- Year
- 2008
- Sales region
- General (000)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6X6-48207-00-00
Remote Control Assy (Twin)
Not for sale |
6X6-48207-00-00 |
— | ||
| replacement | |||||
|
01
|
01
6X6-48207-02-00
Remote Control Assy
Not for sale |
6X6-48207-02-00 |
— | ||
|
01
|
01
6X6-48207-10-00
Remote Control Assy
Not for sale |
6X6-48207-10-00 |
— | ||
|
01
|
01
6X6-48207-20-00
Remote Control Assy
Not for sale |
6X6-48207-20-00 |
— | ||
|
02
|
02
6X6-82563-00-00
Trim & Tilt Switch Assy
|
6X6-82563-00-00 |
— | ||
| replacement | |||||
|
02
|
02
6X6-82563-01-00 TRIM & TILT SWITCH A |
6X6-82563-01-00 |
from US $101.27 |
||
|
03
|
03
6X6-48221-00-00 Lever, Control |
6X6-48221-00-00 |
from US $256.98 |
||
|
04
|
04
6X6-48222-00-00 Grip, Control Lever |
6X6-48222-00-00 |
from US $18.42 |
||
|
05
|
05
6X6-48224-00-00 Cover, Control Lever |
6X6-48224-00-00 |
from US $26.92 |
||
|
06
|
06
6X6-48222-10-00 Grip, Control Lever |
6X6-48222-10-00 |
from US $14.03 |
||
|
07
|
07
6X6-48224-10-00 Cover, Control Lever |
6X6-48224-10-00 |
from US $26.92 |
||
|
08
|
08
985-80050-14-00
Screw, Pan Head
|
985-80050-14-00 |
— | ||
| replacements | |||||
|
08
|
08
98502-05014-00 Screw, Pan Head |
98502-05014-00 |
from US $1.28 |
||
|
08
|
08
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
09
|
09
92990-05300-00 Washer, Internal Tooth |
92990-05300-00 |
from US $1.56 |
||
|
10
|
10
6X6-48171-00-00 Bolt |
6X6-48171-00-00 |
from US $11.05 |
||
|
11
|
11
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
12
|
12
EL8-48127-00-00 Screw 1 |
EL8-48127-00-00 |
from US $2.13 |
||
|
13
|
13
6X6-48119-10-00 Cover |
6X6-48119-10-00 |
from US $63.55 |
||
|
14
|
14
6X6-84301-10-00 Pilot Light Assy 1 |
6X6-84301-10-00 |
US $287.37 |
||
| replacement | |||||
|
14
|
14
6X6-84301-12-00 Pilot Light Assy 1 |
6X6-84301-12-00 |
from US $287.37 |
||
|
15
|
15
6X6-48167-10-00 Plug |
6X6-48167-10-00 |
from US $13.46 |
||
|
16
|
16
6X6-48167-20-00 Plug |
6X6-48167-20-00 |
from US $13.46 |
||
|
17
|
17
6X6-48215-10-00 Graphic |
6X6-48215-10-00 |
from US $82.62 |
||
|
18
|
18
6X6-48167-60-00 Plug |
6X6-48167-60-00 |
from US $13.46 |
||
|
19
|
19
6X6-48219-10-00 Cover, Lead |
6X6-48219-10-00 |
from US $11.76 |
||
|
20
|
20
6X6-48219-20-00 Cover, Lead |
6X6-48219-20-00 |
from US $11.76 |
||
|
21
|
21
6X6-8259E-00-00 Switch Assy |
6X6-8259E-00-00 |
US $102.10 |
||
|
22
|
22
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
23
|
23
6X6-48176-10-00 Grommet |
6X6-48176-10-00 |
from US $16.29 |
||
|
24
|
24
6X6-48225-00-00 Cover |
6X6-48225-00-00 |
from US $34.43 |
||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
6X6-48216-10-00 Graphic |
6X6-48216-10-00 |
from US $50.29 |
||
|
26
|
26
6X6-82563-10-00 Trim & Tilt Switch Assy |
6X6-82563-10-00 |
US $186.52 |
||
| replacements | |||||
|
26
|
26
6X6-82563-40-00 Trim & Tilt Switch Assy |
6X6-82563-40-00 |
US $186.52 |
||
|
26
|
26
6X6-82563-41-00 Trim & Tilt Switch Assy |
6X6-82563-41-00 |
from US $186.52 |
||
|
27
|
27
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
28
|
28
92D80-05016-00 Bolt, Socket Head |
92D80-05016-00 |
from US $5.81 |
||
|
29
|
29
6X6-481A0-01-00
Remo-Con Case Assy
|
6X6-481A0-01-00 |
— | ||
|
30
|
30
6X6-48212-00-00 Back Plate 1 |
6X6-48212-00-00 |
from US $14.59 |
||
|
31
|
31
6X6-48144-10-00 Plate, Stopper 2 |
6X6-48144-10-00 |
from US $31.17 |
||
|
32
|
32
6X6-48242-01-00 Shaft, Drive |
6X6-48242-01-00 |
US $34.85 |
||
|
33
|
33
6X6-48242-11-00 Shaft, Drive |
6X6-48242-11-00 |
from US $40.76 |
||
|
34
|
34
6X6-48233-00-00 Gear 2 |
6X6-48233-00-00 |
US $7.65 |
||
| replacement | |||||
|
34
|
34
6X6-48233-01-00 Gear 2 |
6X6-48233-01-00 |
from US $7.65 |
||
|
35
|
35
6X6-48238-00-00 Spring, Detent |
6X6-48238-00-00 |
from US $4.53 |
||
|
36
|
36
6X6-48237-00-00 Adaptor |
6X6-48237-00-00 |
from US $4.53 |
||
|
37
|
37
6X6-48236-00-00 Roller, Detent |
6X6-48236-00-00 |
from US $5.38 |
||
|
38
|
38
6X6-48189-00-00 Retainer |
6X6-48189-00-00 |
from US $4.39 |
||
|
39
|
39
703-48198-00-00 Washer, Wave |
703-48198-00-00 |
from US $1.66 |
||
|
40
|
40
6X6-48193-00-00 Washer 3 |
6X6-48193-00-00 |
from US $11.90 |
||
|
41
|
41
6X6-48118-00-00 Clip, Shift Lever |
6X6-48118-00-00 |
from US $5.09 |
||
|
42
|
42
6X6-48234-00-00 Bushing 1 |
6X6-48234-00-00 |
from US $5.95 |
||
|
43
|
43
6X6-48267-00-00 Bolt Set |
6X6-48267-00-00 |
from US $6.38 |
||
|
44
|
44
6X6-48158-00-00 Spring 1 |
6X6-48158-00-00 |
from US $4.96 |
||
|
45
|
45
6X6-48264-00-00 Friction, Throttle |
6X6-48264-00-00 |
from US $25.50 |
||
|
46
|
46
704-48287-00-00 Washer |
704-48287-00-00 |
from US $1.70 |
||
|
47
|
47
985-80050-25-00
Screw, Pan Head
|
985-80050-25-00 |
— | ||
| replacement | |||||
|
47
|
47
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
48
|
48
704-48156-00-00 Nut 1 |
704-48156-00-00 |
from US $4.39 |
||
|
49
|
49
704-48283-00-00
Screw
|
704-48283-00-00 |
— | ||
| replacement | |||||
|
49
|
49
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
50
|
50
98780-05014-00 Screw 3 |
98780-05014-00 |
US $2.13 |
||
| replacement | |||||
|
50
|
50
6X6-81147-00-00 Screw 3 |
6X6-81147-00-00 |
from US $1.70 |
||
|
51
|
51
6X6-48213-00-00 Back Plate 2 |
6X6-48213-00-00 |
from US $19.41 |
||
|
52
|
52
6X6-48228-00-00 Holder, Switch |
6X6-48228-00-00 |
from US $13.32 |
||
|
53
|
53
6X6-85590-00-00 Control Unit Assy2 station |
6X6-85590-00-00 |
from US $2,191.20 |
||
|
53
|
53
6X6-85590-10-00 Control Unit Assy1 station |
6X6-85590-10-00 |
from US $2,160.82 |
||
|
54
|
54
6X6-48175-00-00 Boot1 station |
6X6-48175-00-00 |
from US $8.23 |
||
|
55
|
55
703-82591-00-00
Band
1 station |
703-82591-00-00 |
— | ||
| replacement | |||||
|
55
|
55
1UA-82591-00-00 Band1 station |
1UA-82591-00-00 |
from US $1.52 |
||
|
56
|
56
97780-50145-00 Screw, Tapping |
97780-50145-00 |
US $2.69 |
||
| replacement | |||||
|
56
|
56
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
57
|
57
98580-05060-00 Screw, Pan Head |
98580-05060-00 |
from US $5.67 |
||
| replacement | |||||
|
57
|
57
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
58
|
58
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
59
|
59
6X6-82590-10-00 Wire Harness Assy1 station |
6X6-82590-10-00 |
from US $1,406.07 |
||
|
59
|
59
6X6-82590-30-00 Wire Harness Assy2 station main |
6X6-82590-30-00 |
from US $2,266.35 |
||
|
59
|
59
6X6-82590-60-00 Wire Harness Assy2 station sub |
6X6-82590-60-00 |
from US $2,348.01 |
||
|
60
|
60
6X6-48129-00-00 Screw 3 |
6X6-48129-00-00 |
US $2.98 |
||
| replacement | |||||
|
60
|
60
6X6-48129-01-00 Screw 3 |
6X6-48129-01-00 |
from US $2.98 |
||
|
61
|
61
6X6-82540-00-00 Neutral Switch Assy |
6X6-82540-00-00 |
from US $98.09 |
||
|
62
|
62
6X6-48241-00-00 Arm, Drive |
6X6-48241-00-00 |
from US $9.21 |
||
|
63
|
63
6X6-48245-01-00 Plate, Lock |
6X6-48245-01-00 |
from US $6.23 |
||
|
64
|
64
6X6-82545-00-00 Grommet |
6X6-82545-00-00 |
from US $17.43 |
||
|
65
|
65
6X6-8252V-00-00 Screw, Special |
6X6-8252V-00-00 |
from US $2.69 |
||
|
66
|
66
704-81950-10-00 Relay Assy |
704-81950-10-00 |
US $36.06 |
||
|
67
|
67
6X6-44191-00-00 Indicator, Shift |
6X6-44191-00-00 |
from US $10.02 |
||
|
68
|
68
6X6-48175-10-00 Boot1 station only |
6X6-48175-10-00 |
from US $8.23 |
||
|
69
|
69
6X6-48176-50-00 Grommet |
6X6-48176-50-00 |
from US $16.86 |
||
|
70
|
70
6X6-48176-60-00 Grommet |
6X6-48176-60-00 |
from US $16.86 |
||
|
71
|
71
6X6-48127-00-00 Screw 1 |
6X6-48127-00-00 |
US $2.83 |
||
| replacement | |||||
|
71
|
71
6X6-48127-01-00 Screw 1 |
6X6-48127-01-00 |
from US $2.83 |
||
|
72
|
72
6X6-48128-00-00 Screw 2 |
6X6-48128-00-00 |
from US $2.83 |
||
|
73
|
73
6X6-81146-00-00 Screw 2 |
6X6-81146-00-00 |
from US $2.98 |
||
|
74
|
74
6X6-81145-00-00 Screw 1 |
6X6-81145-00-00 |
US $4.82 |
||
| replacement | |||||
|
74
|
74
6X6-81145-01-00 Screw 1 |
6X6-81145-01-00 |
from US $4.82 |
||
|
75
|
75
6X6-82563-20-00 Trim & Tilt Switch Assy |
6X6-82563-20-00 |
US $186.52 |
||
| replacements | |||||
|
75
|
75
6X6-82563-50-00 Trim & Tilt Switch Assy |
6X6-82563-50-00 |
US $186.52 |
||
|
75
|
75
6X6-82563-51-00 Trim & Tilt Switch Assy |
6X6-82563-51-00 |
from US $186.52 |
||
|
76
|
76
6X6-82540-10-00 Neutral Switch Assy |
6X6-82540-10-00 |
from US $119.09 |
||
|
77
|
77
6X6-481A0-21-00
Remo-Con Case Assy
|
6X6-481A0-21-00 |
— | ||
