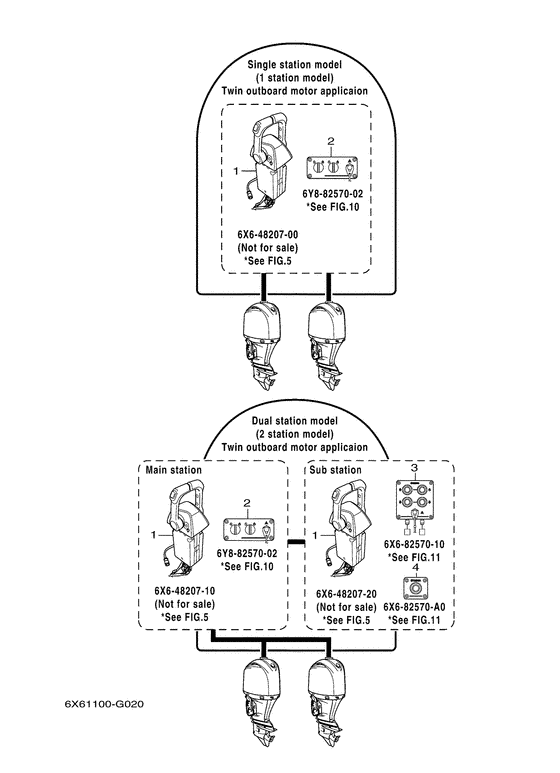

Layout chart 2 (TWIN) Diagram Yamaha Accessories
- Year
- 2008
- Model
- DBW REMO-CON
- Model code
- 6X61
- Year
- 2008
- Sales region
- General (000)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6X6-48207-00-00
Remote Control Assy (Twin)
Not for sale |
6X6-48207-00-00 |
— | ||
| replacement | |||||
|
01
|
01
6X6-48207-02-00
Remote Control Assy
Not for sale |
6X6-48207-02-00 |
— | ||
|
01
|
01
6X6-48207-10-00
Remote Control Assy
Not for sale |
6X6-48207-10-00 |
— | ||
|
01
|
01
6X6-48207-20-00
Remote Control Assy
Not for sale |
6X6-48207-20-00 |
— | ||
|
02
|
02
6Y8-82570-02-00 Panel Sw., Twin1 & 2 station main |
6Y8-82570-02-00 |
US $1,078.44 |
||
| replacements | |||||
|
02
|
02
6Y8-82570-04-00 Panel Switch Assy1 & 2 station main |
6Y8-82570-04-00 |
US $1,078.44 |
||
|
02
|
02
6Y8-82570-05-00 PANEL SWITCH ASSY1 & 2 station main |
6Y8-82570-05-00 |
from US $629.78 |
||
|
03
|
03
6X6-82570-10-00 Panel Switch Assy (Twin)2 station sub |
6X6-82570-10-00 |
US $909.48 |
||
| replacement | |||||
|
03
|
03
6X6-82570-11-00 TWIN SW PANEL-DEC 2N2 station sub |
6X6-82570-11-00 |
from US $503.88 |
||
|
04
|
04
6X6-82570-A0-00 Panel Switch Assy2 station sub |
6X6-82570-A0-00 |
from US $179.28 |
||
