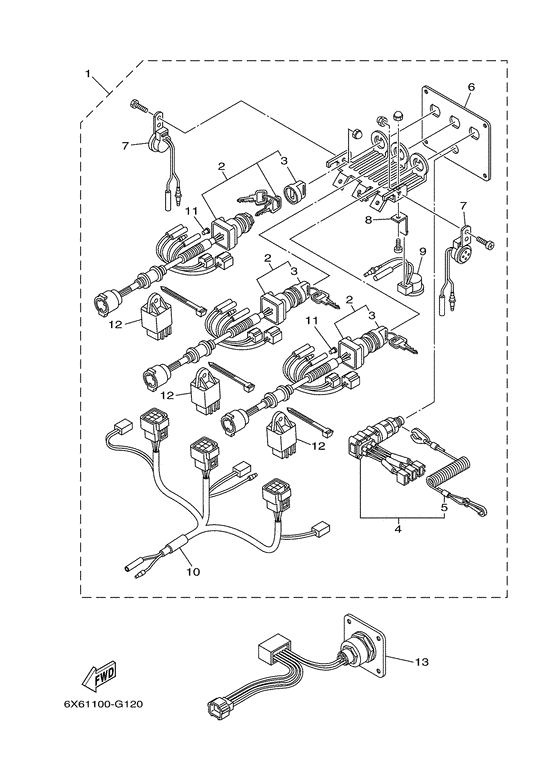

Switch & panel 5 (TRIPLE) Diagram Yamaha Accessories
- Year
- 2008
- Model
- DBW REMO-CON
- Model code
- 6X61
- Year
- 2008
- Sales region
- General (000)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6X5-82570-01-00
Panel Switch Assy
2 station main |
6X5-82570-01-00 |
— | ||
| replacements | |||||
|
01
|
01
6X5-82570-02-00 Panel Switch Assy2 station main |
6X5-82570-02-00 |
US $1,676.40 |
||
|
01
|
01
6X5-82570-03-00 Triple Panel Switch Asy2 station main |
6X5-82570-03-00 |
from US $975.38 |
||
|
02
|
02
6X5-82510-01-00 Main Switch Assy |
6X5-82510-01-00 |
US $167.17 |
||
| replacement | |||||
|
02
|
02
6X5-82510-02-00 Main Switch Assy |
6X5-82510-02-00 |
from US $167.17 |
||
|
03
|
03
676-82577-00-00
Cap, Key
|
676-82577-00-00 |
— | ||
| replacement | |||||
|
03
|
03
676-82577-01-00 Cap, Key |
676-82577-01-00 |
from US $4.82 |
||
|
04
|
04
6X5-82575-00-00 Engine Stop Switch Assy |
6X5-82575-00-00 |
from US $125.73 |
||
|
05
|
05
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
06
|
06
6X5-82571-00-00 Panel, Switch |
6X5-82571-00-00 |
from US $92.84 |
||
|
07
|
07
6X5-83383-00-00 Buzzer |
6X5-83383-00-00 |
from US $54.63 |
||
|
08
|
08
6X5-82581-00-00 Stay, Cord Clamp |
6X5-82581-00-00 |
from US $14.59 |
||
|
09
|
09
6X4-83383-00-00 Buzzer |
6X4-83383-00-00 |
from US $52.50 |
||
|
10
|
10
6X5-82507-00-00 Wire, Lead |
6X5-82507-00-00 |
from US $259.74 |
||
|
11
|
11
703-82119-00-00 Cover, Lead Wire |
703-82119-00-00 |
from US $2.13 |
||
|
12
|
12
68V-81950-00-00 Relay Assy |
68V-81950-00-00 |
from US $81.14 |
||
|
13
|
13
6X6-82570-A0-00 Panel Switch Assy2 station main |
6X6-82570-A0-00 |
from US $179.28 |
||
