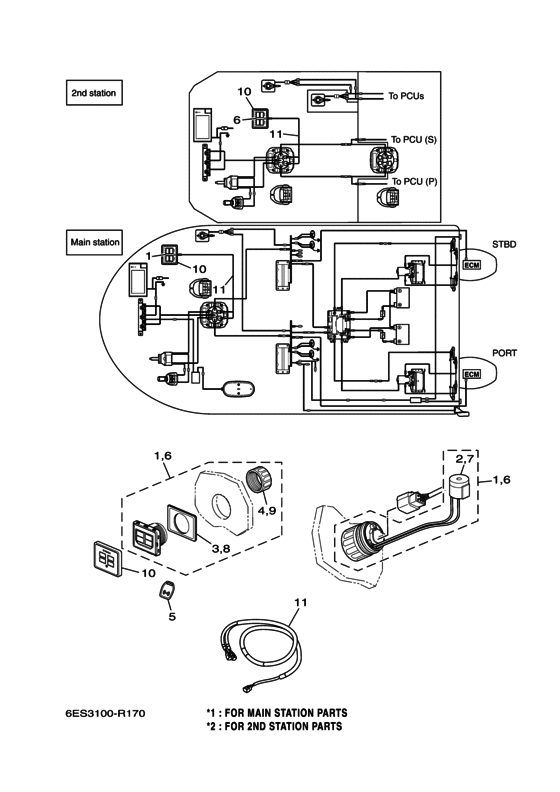

Eks Assy (TWIN) Diagram Yamaha Accessories HELM MASTER SETPOINT
- Year
- 2017
- Model
- JOYSTICK CONTROL KIT
- Year
- 2017
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6ES-82510-12-00 Eks Assy, Without Ek FobCONTACT MARINE SERVICE DEPT. |
6ES-82510-12-00 |
US $891 |
||
|
2
|
2
6ES-83383-00-00 Buzzer |
6ES-83383-00-00 |
from US $132.08 |
||
|
3
|
3
6ES-82543-00-00 Gasket |
6ES-82543-00-00 |
from US $119.37 |
||
|
4
|
4
6ES-48156-00-00 Nut 1 |
6ES-48156-00-00 |
from US $53.19 |
||
|
5
|
5
6ES-82511-00-00 Key, Main SwitchMAIN STATION |
6ES-82511-00-00 |
US $50.63 |
||
|
6
|
6
6ES-82510-12-00 Eks Assy, Without Ek FobCONTACT MARINE SERVICE DEPT. |
6ES-82510-12-00 |
US $891 |
||
|
7
|
7
6ES-83383-00-00 Buzzer |
6ES-83383-00-00 |
from US $132.08 |
||
|
8
|
8
6ES-82543-00-00 Gasket |
6ES-82543-00-00 |
from US $119.37 |
||
|
9
|
9
6ES-48156-00-00 Nut 1 |
6ES-48156-00-00 |
from US $53.19 |
||
|
10
|
10
6ES-82568-00-00 Eks Cover (Twin) |
6ES-82568-00-00 |
from US $34.94 |
||
|
11
|
11
6ES-8258A-40-00 Eks Harness (Twin) |
6ES-8258A-40-00 |
from US $111.38 |
