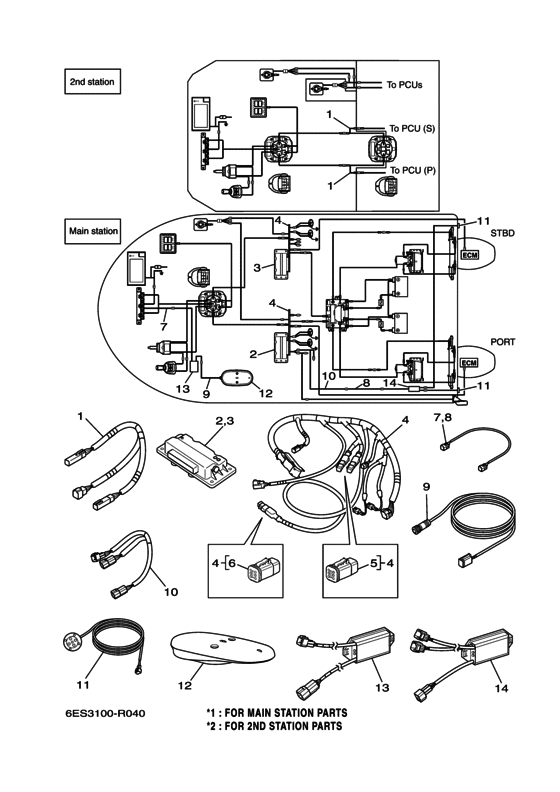

Harness (TWIN) Diagram Yamaha Accessories HELM MASTER SETPOINT
- Year
- 2017
- Model
- JOYSTICK CONTROL KIT
- Year
- 2017
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6ES-8258A-80-00 T Harness, 2Nd Station2ND STATION |
6ES-8258A-80-00 |
from US $149.85 |
||
|
2
|
2
6ES-85590-10-00 Pcu Port Twin (Serialized)CONTACT MARINE SERVICE DEPT |
6ES-85590-10-00 |
US $814.05 |
||
|
3
|
3
6ES-85590-20-00 Pcu Stbd Twin (Serialized)CONTACT MARINE SERVICE DEPT |
6ES-85590-20-00 |
US $814.05 |
||
|
4
|
4
6ES-8258A-00-00
Pcu Harness
MAIN STATION |
6ES-8258A-00-00 |
— | ||
|
5
|
5
6ES-82582-00-00 Cap 1 |
6ES-82582-00-00 |
from US $78.34 |
||
|
6
|
6
6ES-82585-00-00 Cap 2 |
6ES-82585-00-00 |
from US $54.57 |
||
|
7
|
7
6Y8-82521-11-00 2Ft Pigtail BusMAIN STATION |
6Y8-82521-11-00 |
from US $72.40 |
||
|
8
|
8
6Y8-82521-11-00 2Ft Pigtail BusMAIN STATION |
6Y8-82521-11-00 |
from US $72.40 |
||
|
9
|
9
6ES-82718-00-00 Resistor HarnessMAIN STATION |
6ES-82718-00-00 |
from US $628.32 |
||
|
10
|
10
6ES-82590-C0-00 Prop. Light Interface HarnessMAIN STATION |
6ES-82590-C0-00 |
from US $160 |
||
|
11
|
11
6ES-83720-00-00 L.e.d Ass'yMAIN STATION |
6ES-83720-00-00 |
US $261.12 |
||
| replacements | |||||
|
11
|
11
6ES-83720-01-00 L.e.d Ass'yMAIN STATION |
6ES-83720-01-00 |
US $261.12 |
||
|
11
|
11
6ES-83720-03-00 L.e.d Ass'yMAIN STATION |
6ES-83720-03-00 |
US $360.45 |
||
|
12
|
12
6ES-88107-00-00 GPS ANTENNACONTACT MARINE SERVICE DEPT |
6ES-88107-00-00 |
US $2,055.60 |
||
|
13
|
13
6ES-8A2D0-10-00 Gps GatewayMAIN STATION |
6ES-8A2D0-10-00 |
from US $498.15 |
||
|
14
|
14
6ES-8A2D0-00-00 Prop. Light InterfaceMAIN STATION |
6ES-8A2D0-00-00 |
from US $498.15 |
||
