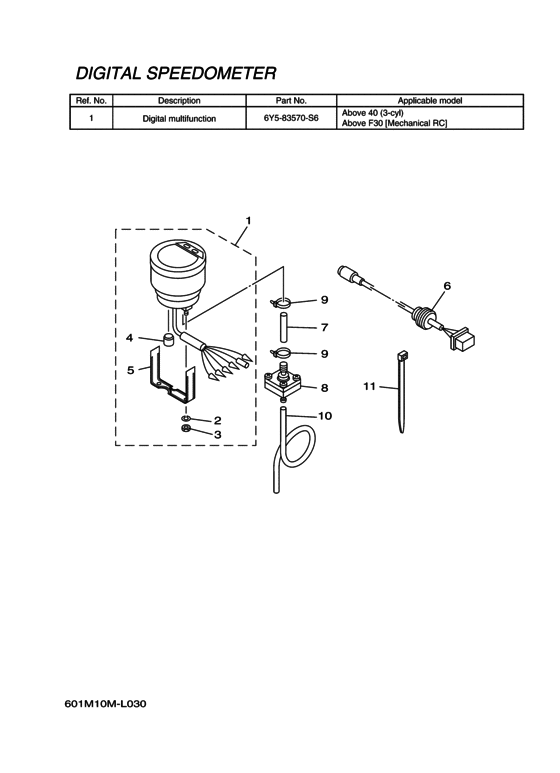

Instruments Digital 1 Diagram Yamaha Accessories
- Year
- 2016
- Model
- RIGGING METER
- Year
- 2016
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y5-83570-S6-00 Speedometer Assy |
6Y5-83570-S6-00 |
US $887.04 |
||
| replacements | |||||
|
1
|
1
6Y5-83570-A0-00 SPEEDOMETER ASSY |
6Y5-83570-A0-00 |
US $887.04 |
||
|
1
|
1
6Y5-83570-A3-00 Meter Assy. |
6Y5-83570-A3-00 |
US $609.53 |
||
|
2
|
2
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
3
|
3
95380-04600-00 Nut |
95380-04600-00 |
US $1.07 |
||
| replacement | |||||
|
3
|
3
95303-04600-00 Nut |
95303-04600-00 |
from US $2.55 |
||
|
4
|
4
6Y5-83533-T2-00 Grommet |
6Y5-83533-T2-00 |
from US $15.87 |
||
|
5
|
5
6Y5-8355X-T1-00 Bracket, Meter 1 |
6Y5-8355X-T1-00 |
from US $13.32 |
||
|
6
|
6
6Y5-87122-S0-00 Cord Assy 1AP |
6Y5-87122-S0-00 |
from US $23.80 |
||
|
7
|
7
6Y5-83557-31-00 Tube |
6Y5-83557-31-00 |
from US $4.68 |
||
| replacement | |||||
|
7
|
7
91A30-03039-00 Tube, Flexible Vinyl |
91A30-03039-00 |
from US $4.68 |
||
|
8
|
8
6Y5-83728-00-00
Connector Assy
|
6Y5-83728-00-00 |
— | ||
|
9
|
9
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
9
|
9
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
9
|
9
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
10
|
10
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
10
|
10
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
10
|
10
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
