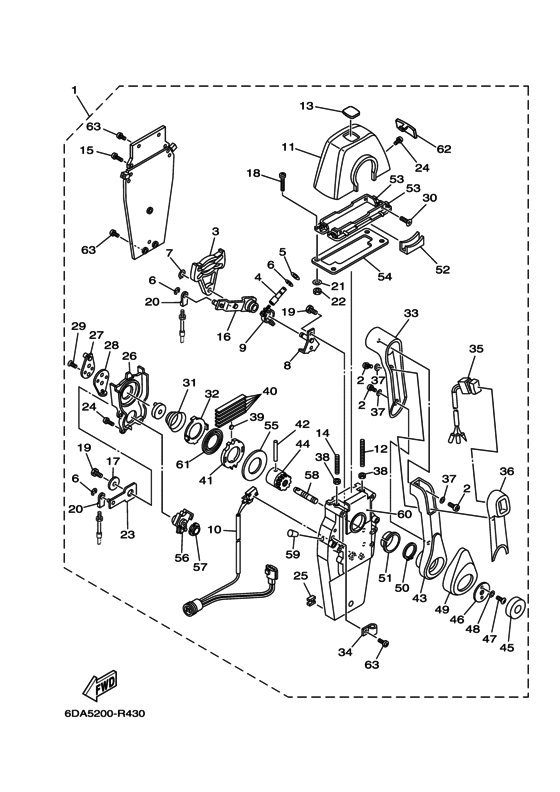

Control Binnacle 704 Single Diagram Yamaha Accessories
- Year
- 2016
- Model
- RIGGING REMOCON
- Year
- 2016
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
704-48205-R0-00 CONTROL BINN SINGLEUR SINGLE WITH PT/T SW |
704-48205-R0-00 |
US $583.44 |
||
| replacements | |||||
|
1
|
1
704-48205-R1-00 Control Binn Single (Chrome)UR SINGLE WITH PT/T SW |
704-48205-R1-00 |
US $583.44 |
||
|
1
|
1
704-48205-R2-00 REMOTE CONTROL ASSY RHUR SINGLE WITH PT/T SW |
704-48205-R2-00 |
from US $490.80 |
||
|
2
|
2
704-48129-10-00 SCREW 3 |
704-48129-10-00 |
from US $1.07 |
||
|
3
|
3
EL8-48251-00-00 Plate,cam |
EL8-48251-00-00 |
from US $18.25 |
||
|
4
|
4
704-48265-00-00 Shaft, Friction |
704-48265-00-00 |
from US $5.24 |
||
|
5
|
5
701-48246-00-00 Spacer |
701-48246-00-00 |
from US $1.56 |
||
|
6
|
6
93430-06024-00 Circlip |
93430-06024-00 |
from US $2.35 |
||
|
7
|
7
EL8-48259-00-00 Circlip 1 |
EL8-48259-00-00 |
from US $1.80 |
||
|
8
|
8
704-48262-00-00 Shaft, Throttle |
704-48262-00-00 |
US $15.44 |
||
|
9
|
9
704-48264-00-00 Throttle, Friction |
704-48264-00-00 |
from US $11.76 |
||
|
10
|
10
704-82540-40-00 NEUTRAL SWITCH ASSY |
704-82540-40-00 |
from US $16.72 |
||
|
11
|
11
704-48119-50-00 COVER |
704-48119-50-00 |
from US $18.70 |
||
|
12
|
12
EL8-48281-00-00 Screw 1 |
EL8-48281-00-00 |
from US $7.08 |
||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
704-48215-60-00 GRAPHIC |
704-48215-60-00 |
US $12.33 |
||
|
15
|
15
978-90050-25-00
Screw, Pan Head
|
978-90050-25-00 |
— | ||
| replacement | |||||
|
15
|
15
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
16
|
16
704-48261-00-00 Arm, Throttle |
704-48261-00-00 |
from US $33.86 |
||
|
17
|
17
EL8-48191-00-00 Washer 1 |
EL8-48191-00-00 |
from US $4.11 |
||
|
18
|
18
704-48283-00-00
Screw
|
704-48283-00-00 |
— | ||
| replacement | |||||
|
18
|
18
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
19
|
19
973-80060-18-00
Bolt
|
973-80060-18-00 |
— | ||
| replacement | |||||
|
19
|
19
97080-06018-00 Bolt (Fj0) |
97080-06018-00 |
from US $4.11 |
||
|
20
|
20
703-48345-01-00 Cable End, Remote Control 2 |
703-48345-01-00 |
from US $4.30 |
||
|
21
|
21
704-48287-00-00 Washer |
704-48287-00-00 |
from US $1.70 |
||
|
22
|
22
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
23
|
23
704-48271-00-00 Arm, Shift |
704-48271-00-00 |
from US $7.08 |
||
|
24
|
24
EL8-48127-00-00 Screw 1 |
EL8-48127-00-00 |
from US $2.13 |
||
|
25
|
25
703-48358-00-00 Anchor, Cable |
703-48358-00-00 |
US $3.26 |
||
|
26
|
26
704-48231-00-00 Housing, Gear |
704-48231-00-00 |
from US $19.27 |
||
|
27
|
27
EL8-48241-00-00 Arm, Drive |
EL8-48241-00-00 |
from US $19.41 |
||
|
28
|
28
EL8-48254-00-00 Stopper, Throttle Adjusting |
EL8-48254-00-00 |
from US $7.64 |
||
|
29
|
29
927-80060-20-00
Screw, Flat Head
|
927-80060-20-00 |
— | ||
| replacement | |||||
|
29
|
29
98780-06020-00 Screw Flat Head |
98780-06020-00 |
from US $3.40 |
||
|
30
|
30
98780-05018-00 Screw, Flat Head |
98780-05018-00 |
from US $1.56 |
||
|
31
|
31
EL8-48244-00-00 Spring, Free Accel |
EL8-48244-00-00 |
from US $9.78 |
||
|
32
|
32
EL8-48245-00-00 Plate, Lock |
EL8-48245-00-00 |
from US $6.38 |
||
|
34
|
34
704-82594-00-00 Clamp |
704-82594-00-00 |
from US $6.38 |
||
|
35
|
35
704-82563-60-00 TRIM & TILT SWITCH A |
704-82563-60-00 |
from US $64.94 |
||
|
36
|
36
704-48229-10-00 Grip, Control Lever |
704-48229-10-00 |
from US $12.33 |
||
|
37
|
37
92990-05300-00 Washer, Internal Tooth |
92990-05300-00 |
from US $1.56 |
||
|
38
|
38
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
39
|
39
701-48248-00-00 Roller, Free Accel |
701-48248-00-00 |
from US $1.98 |
||
|
40
|
40
704-48238-00-00 Spring, Detent |
704-48238-00-00 |
US $1.56 |
||
|
41
|
41
704-48232-P1-00 Gear |
704-48232-P1-00 |
from US $18.42 |
||
|
42
|
42
EL8-48164-00-00
Pin 2
|
EL8-48164-00-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
43
|
43
704-48221-R0-00 LEVER, CONTROL |
704-48221-R0-00 |
from US $47.48 |
||
|
44
|
44
704-48242-10-00 Shaft, Drive |
704-48242-10-00 |
from US $35.42 |
||
|
45
|
45
704-48225-R0-00 COVER |
704-48225-R0-00 |
from US $5.53 |
||
|
46
|
46
704-48192-00-00 Washer 2 |
704-48192-00-00 |
from US $6.23 |
||
|
47
|
47
987-90060-18-00
Screw, Pan Head
|
987-90060-18-00 |
— | ||
|
48
|
48
92990-06300-00 Washer, Internal Tooth |
92990-06300-00 |
from US $1.84 |
||
|
49
|
49
704-48224-00-00
Cover, Control Lever
|
704-48224-00-00 |
— | ||
| replacement | |||||
|
49
|
49
704-48224-R0-00 Cover, Control Lever |
704-48224-R0-00 |
from US $21.96 |
||
|
50
|
50
EL8-48279-00-00 Circlip 2 |
EL8-48279-00-00 |
from US $7.65 |
||
|
51
|
51
704-48234-00-00 Bushing 1 |
704-48234-00-00 |
from US $1.98 |
||
|
52
|
52
704-48219-R0-00 COVER, LEAD |
704-48219-R0-00 |
from US $4.96 |
||
|
53
|
53
704-48144-10-00 Plate, Stopper 2 |
704-48144-10-00 |
from US $16.86 |
||
|
54
|
54
704-48176-00-00 Grommet |
704-48176-00-00 |
US $3.12 |
||
|
55
|
55
704-48192-P0-00 Washer 2 |
704-48192-P0-00 |
from US $9.07 |
||
|
56
|
56
704-48233-00-00 Gear 2 |
704-48233-00-00 |
from US $13.60 |
||
|
57
|
57
704-48235-00-00 Bushing |
704-48235-00-00 |
from US $3.97 |
||
|
58
|
58
704-48153-00-00 Shaft, Free Accel |
704-48153-00-00 |
from US $8.50 |
||
|
59
|
59
704-48166-00-00 Plug |
704-48166-00-00 |
from US $3.26 |
||
|
60
|
60
704-48284-P0-00 Grommet |
704-48284-P0-00 |
from US $12.75 |
||
|
61
|
61
704-48178-10-00 Plate, Shift |
704-48178-10-00 |
from US $5.38 |
||
|
62
|
62
704-48167-20-00 PLUG |
704-48167-20-00 |
from US $17.43 |
||
|
63
|
63
978-90050-16-00
Screw, Pan Head
|
978-90050-16-00 |
— | ||
| replacement | |||||
|
63
|
63
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
