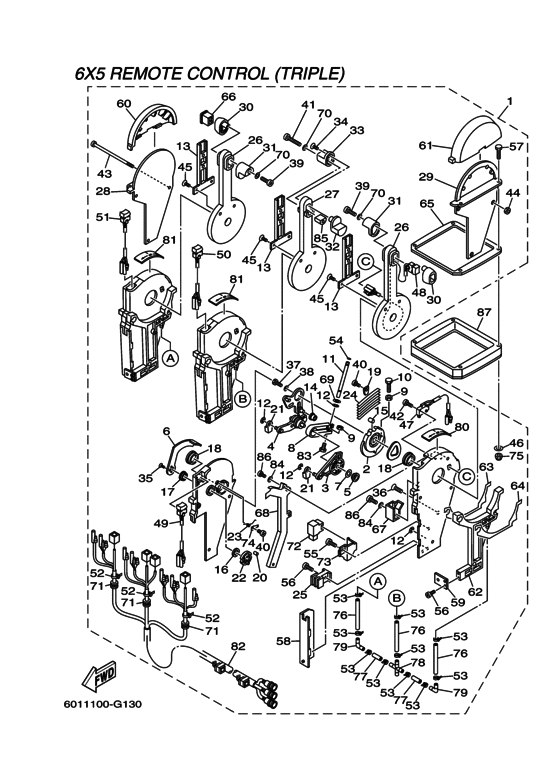

Control Binnacle Triple Diagram Yamaha Accessories
- Year
- 2015
- Model
- RIGGING REMOCON
- Year
- 2015
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6X5-48207-02-00 Remote Control AssyWITH PT/T SW. |
6X5-48207-02-00 |
US $5,068.80 |
||
| replacements | |||||
|
1
|
1
6X5-48207-03-00 TRIPLE REMOTE CONTROWITH PT/T SW. |
6X5-48207-03-00 |
US $5,068.80 |
||
|
1
|
1
6X5-48207-04-00 Remote Control AssyWITH PT/T SW. |
6X5-48207-04-00 |
US $4,312.80 |
||
|
2
|
2
6X5-48232-00-00 Gear |
6X5-48232-00-00 |
from US $111.50 |
||
|
3
|
3
6X5-48271-00-00 Arm, Shift |
6X5-48271-00-00 |
from US $77.09 |
||
|
4
|
4
6X5-48261-00-00 Arm, Throttle |
6X5-48261-00-00 |
from US $112.74 |
||
|
5
|
5
703-48235-00-00 Bushing |
703-48235-00-00 |
from US $3.74 |
||
|
6
|
6
6X5-48152-00-00 Knob, Free Accel |
6X5-48152-00-00 |
from US $234.87 |
||
|
7
|
7
703-48268-00-00 Spacer |
703-48268-00-00 |
from US $1.56 |
||
|
8
|
8
6X5-48264-00-00 Friction, Throttle |
6X5-48264-00-00 |
from US $98.37 |
||
|
9
|
9
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
10
|
10
97380-05025-00 Bolt |
97380-05025-00 |
US $4.11 |
||
| replacements | |||||
|
10
|
10
970-95050-25-00
Bolt, Hexagon
|
970-95050-25-00 |
— | ||
|
10
|
10
970-80050-25-00
Bolt, Hexagon
|
970-80050-25-00 |
— | ||
|
11
|
11
6X5-48265-00-00 Shaft, Friction |
6X5-48265-00-00 |
from US $49.32 |
||
|
12
|
12
93430-06024-00 Circlip |
93430-06024-00 |
from US $2.35 |
||
|
13
|
13
6X5-48224-00-00 Cover, Control Lever |
6X5-48224-00-00 |
from US $118.96 |
||
|
14
|
14
703-48252-00-00 Roller, Cam |
703-48252-00-00 |
from US $7.36 |
||
|
15
|
15
701-48248-00-00 Roller, Free Accel |
701-48248-00-00 |
from US $1.98 |
||
|
16
|
16
703-48198-00-00 Washer, Wave |
703-48198-00-00 |
from US $1.66 |
||
|
17
|
17
703-48243-00-00 Bushing |
703-48243-00-00 |
from US $1.81 |
||
|
18
|
18
703-48236-00-00 Bushing 1 |
703-48236-00-00 |
from US $1.70 |
||
|
19
|
19
703-48189-00-00 Retainer |
703-48189-00-00 |
from US $2.13 |
||
|
20
|
20
703-48234-00-00 Roller, Detent |
703-48234-00-00 |
from US $2.55 |
||
|
21
|
21
703-48345-01-00 Cable End, Remote Control 2 |
703-48345-01-00 |
from US $4.30 |
||
|
22
|
22
703-48153-00-00 Shaft, Free Accel |
703-48153-00-00 |
from US $22.62 |
||
|
23
|
23
703-48244-00-00 Spring, Free Accel |
703-48244-00-00 |
from US $2.41 |
||
|
24
|
24
703-48238-00-00 Spring, Detent |
703-48238-00-00 |
from US $1.56 |
||
|
25
|
25
6X5-48358-00-00 Anchor, Cable |
6X5-48358-00-00 |
from US $88.56 |
||
|
26
|
26
6X5-48221-00-00 Lever, Control |
6X5-48221-00-00 |
from US $477.79 |
||
|
27
|
27
6X5-48221-10-00 Lever, Control |
6X5-48221-10-00 |
from US $559.68 |
||
|
28
|
28
6X5-48144-10-00 Plate, Stopper 2 |
6X5-48144-10-00 |
from US $263.89 |
||
|
29
|
29
6X5-48144-00-00 Plate, Stopper 2 |
6X5-48144-00-00 |
from US $263.89 |
||
|
30
|
30
6X5-48229-01-00 Grip, Control Lever |
6X5-48229-01-00 |
from US $267.71 |
||
|
31
|
31
6X5-48222-01-00 Grip, Control Lever |
6X5-48222-01-00 |
from US $236.83 |
||
|
32
|
32
6X5-48229-11-00 Grip, Control Lever |
6X5-48229-11-00 |
US $324.68 |
||
|
33
|
33
6X5-48222-11-00 Grip, Control Lever |
6X5-48222-11-00 |
US $266.65 |
||
|
34
|
34
6X5-48127-00-00 Screw 1 |
6X5-48127-00-00 |
from US $8.19 |
||
|
35
|
35
703-48128-00-00 Screw 2 |
703-48128-00-00 |
from US $2.98 |
||
|
36
|
36
6X5-48129-00-00 Screw 3 |
6X5-48129-00-00 |
from US $7.79 |
||
|
37
|
37
973-80080-30-00
Bolt
|
973-80080-30-00 |
— | ||
| replacement | |||||
|
37
|
37
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
38
|
38
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
39
|
39
6X5-48127-10-00 Screw 1 |
6X5-48127-10-00 |
from US $10.48 |
||
|
40
|
40
98580-04006-00 Screw, Pan Head |
98580-04006-00 |
from US $1.56 |
||
|
41
|
41
6X5-48127-20-00 Screw 1 |
6X5-48127-20-00 |
from US $10.48 |
||
|
42
|
42
703-48129-00-00 Screw 3 |
703-48129-00-00 |
from US $1.07 |
||
|
43
|
43
6X5-48267-00-00 Bolt Set |
6X5-48267-00-00 |
from US $23.80 |
||
|
44
|
44
6X0-48156-00-00 Nut 1 |
6X0-48156-00-00 |
from US $3.12 |
||
|
45
|
45
987-80040-10-00 Screw, Flat Head |
987-80040-10-00 |
from US $1.42 |
||
|
46
|
46
704-48287-00-00 Washer |
704-48287-00-00 |
from US $1.70 |
||
|
47
|
47
6X5-82540-00-00 Neutral Switch Assy |
6X5-82540-00-00 |
from US $60.65 |
||
|
48
|
48
6X5-82563-01-00 Trim & Tilt Switch Assy |
6X5-82563-01-00 |
US $98.37 |
||
| replacement | |||||
|
48
|
48
6X5-82563-02-00 TRIM & TILT SWITCH A |
6X5-82563-02-00 |
from US $98.37 |
||
|
49
|
49
6X5-82563-11-00 Trim & Tilt Switch Assy |
6X5-82563-11-00 |
US $98.37 |
||
| replacement | |||||
|
49
|
49
6X5-82563-12-00 TRIM & TILT SWITCH A |
6X5-82563-12-00 |
from US $98.37 |
||
|
50
|
50
6X5-82563-21-00 Trim & Tilt Switch Assy |
6X5-82563-21-00 |
US $98.37 |
||
| replacement | |||||
|
50
|
50
6X5-82563-22-00 Trim & Tilt Switch A |
6X5-82563-22-00 |
from US $98.37 |
||
|
51
|
51
6X5-82563-31-00 Trim & Tilt Switch Assy |
6X5-82563-31-00 |
US $98.37 |
||
| replacement | |||||
|
51
|
51
6X5-82563-32-00 Trim & Tilt Switch A |
6X5-82563-32-00 |
from US $98.37 |
||
|
52
|
52
703-82591-00-00
Band
|
703-82591-00-00 |
— | ||
| replacement | |||||
|
52
|
52
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
53
|
53
6X4-42821-00-00 Band, Clamp |
6X4-42821-00-00 |
from US $1.56 |
||
|
54
|
54
6X5-48351-00-00 Seal, Rubber |
6X5-48351-00-00 |
from US $10.06 |
||
|
55
|
55
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
55
|
55
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
56
|
56
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
57
|
57
985-80050-40-00 Screw, Pan HeadUR |
985-80050-40-00 |
US $3.12 |
||
| replacement | |||||
|
57
|
57
98580-05540-00 Screw,panhead (Eg9)UR |
98580-05540-00 |
from US $3.12 |
||
|
57
|
57
977-80051-30-00 Screw, TappingUR |
977-80051-30-00 |
from US $3.26 |
||
|
58
|
58
6X5-48213-00-00 Back Plate 2 |
6X5-48213-00-00 |
from US $92.71 |
||
|
59
|
59
6X5-48354-00-00 Set-Plate, Cable |
6X5-48354-00-00 |
from US $15.58 |
||
|
60
|
60
6X5-48119-11-00 Cover |
6X5-48119-11-00 |
US $695.64 |
||
|
61
|
61
6X5-48119-01-00 Cover |
6X5-48119-01-00 |
US $695.64 |
||
|
62
|
62
6X5-48246-00-00 Spacer |
6X5-48246-00-00 |
from US $262.50 |
||
|
63
|
63
6X5-48214-00-00 Pad |
6X5-48214-00-00 |
from US $27.77 |
||
|
64
|
64
6X5-48214-10-00 Pad |
6X5-48214-10-00 |
from US $27.77 |
||
|
65
|
65
6X5-48176-00-00 Grommet |
6X5-48176-00-00 |
from US $71.89 |
||
|
66
|
66
6X5-48222-21-00 Grip, Control Lever |
6X5-48222-21-00 |
US $266.65 |
||
|
67
|
67
6X5-48219-00-00 Cover, Lead |
6X5-48219-00-00 |
from US $20.66 |
||
|
68
|
68
6X5-48225-00-00 Cover |
6X5-48225-00-00 |
from US $30.18 |
||
|
69
|
69
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
70
|
70
92990-05300-00 Washer, Internal Tooth |
92990-05300-00 |
from US $1.56 |
||
|
71
|
71
6X5-48175-00-00 Boot |
6X5-48175-00-00 |
from US $37.99 |
||
|
72
|
72
704-81950-10-00 Relay Assy |
704-81950-10-00 |
US $36.06 |
||
|
73
|
73
6X5-48228-00-00 Holder, Switch |
6X5-48228-00-00 |
from US $24.79 |
||
|
74
|
74
703-48246-00-00 Spacer |
703-48246-00-00 |
from US $2.98 |
||
|
75
|
75
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
76
|
76
6X5-48317-00-00 Tube |
6X5-48317-00-00 |
from US $64.11 |
||
|
77
|
77
6X5-48317-10-00 Tube |
6X5-48317-10-00 |
from US $64.11 |
||
|
78
|
78
6X5-48338-00-00 Connector |
6X5-48338-00-00 |
from US $79.72 |
||
|
79
|
79
6X5-48338-10-00 Connector |
6X5-48338-10-00 |
from US $24.91 |
||
|
80
|
80
6X5-48215-00-00 Graphic |
6X5-48215-00-00 |
from US $93.37 |
||
|
81
|
81
6X5-48215-10-00 Graphic |
6X5-48215-10-00 |
from US $93.37 |
||
|
82
|
82
6X5-82590-00-00 Wire Harness Assy |
6X5-82590-00-00 |
from US $348.16 |
||
|
83
|
83
6X5-48267-00-00 Bolt Set |
6X5-48267-00-00 |
from US $23.80 |
||
|
84
|
84
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
85
|
85
6X5-48222-30-00 Grip, Control Lever |
6X5-48222-30-00 |
from US $187.22 |
||
|
86
|
86
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
87
|
87
6X5-48293-00-00
Spacer, Remote Control
|
6X5-48293-00-00 |
— | ||
