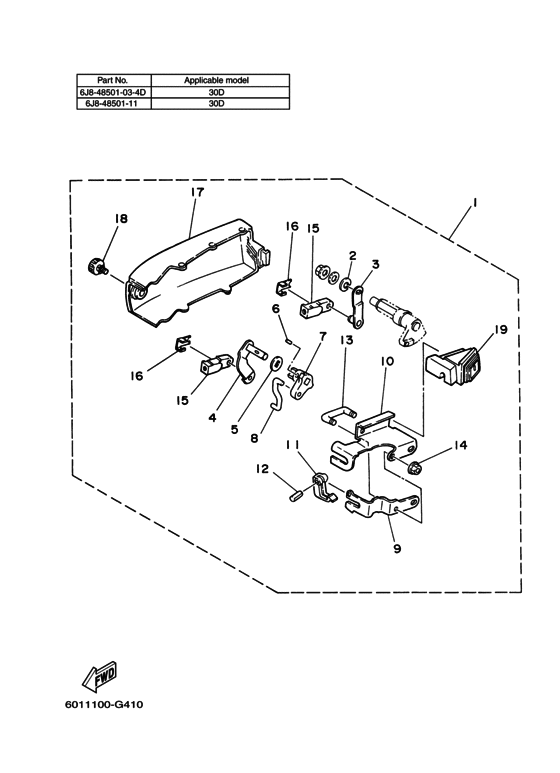

Remote Control Attach 25M 30M Diagram Yamaha Accessories
- Year
- 2015
- Model
- RIGGING REMOCON
- Year
- 2015
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-48501-03-4D Remote Cont. Attachment AssyUR |
6J8-48501-03-4D |
from US $104.99 |
||
|
1
|
1
6J8-48501-11-00 Remote Cont. Attachment AssyUR |
6J8-48501-11-00 |
from US $52.15 |
||
|
2
|
2
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
3
|
3
6J8-48534-00-00 Throttle Lever, Control |
6J8-48534-00-00 |
from US $24.71 |
||
|
4
|
4
6J8-48544-01-00 Lever, Shiftcontrol |
6J8-48544-01-00 |
US $37.30 |
||
| replacement | |||||
|
4
|
4
6J8-48544-02-00 LEVER, SHIFTCONTROL |
6J8-48544-02-00 |
from US $37.30 |
||
|
5
|
5
6J8-44177-00-00 Washer |
6J8-44177-00-00 |
from US $2.55 |
||
|
6
|
6
90254-03M03-00 Pin, Spring |
90254-03M03-00 |
from US $2.69 |
||
|
7
|
7
6J8-44173-02-00 Lever, Shift Control |
6J8-44173-02-00 |
from US $15.50 |
||
|
8
|
8
6J8-42169-01-00 Joint |
6J8-42169-01-00 |
from US $7.23 |
||
|
9
|
9
6J8-48531-00-00 Bracket, Remote Control 1 |
6J8-48531-00-00 |
from US $18.99 |
||
|
10
|
10
6J8-48532-00-00 Bracket, Remote Control 2 |
6J8-48532-00-00 |
from US $32.16 |
||
|
11
|
11
682-48538-50-00 Clamp, Cable 1 |
682-48538-50-00 |
from US $5.67 |
||
|
12
|
12
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
13
|
13
90109-06M29-00 Bolt |
90109-06M29-00 |
from US $6.66 |
||
|
14
|
14
90179-06M24-00 Nut |
90179-06M24-00 |
from US $2.69 |
||
|
15
|
15
6G8-26363-00-00 End, Wire 1 |
6G8-26363-00-00 |
from US $3.72 |
||
|
16
|
16
6G8-26364-00-00 End, Cable |
6G8-26364-00-00 |
from US $4.82 |
||
|
17
|
17
6J8-42723-51-00 Cover, Bottom |
6J8-42723-51-00 |
from US $20.26 |
||
|
18
|
18
6J8-42846-00-00 Screw |
6J8-42846-00-00 |
from US $13.46 |
||
|
19
|
19
6J8-42724-10-00 Grommet |
6J8-42724-10-00 |
from US $12.89 |
||
