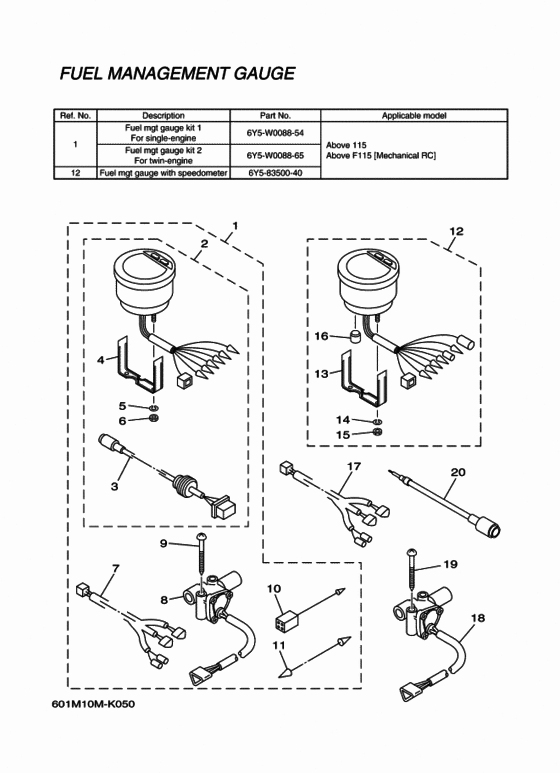

Meter 5 Diagram Yamaha Accessories
- Year
- 2011
- Model
- RIGGING METER
- Model code
- 601M
- Year
- 2011
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y5-W0088-54-00 Digital Fuel Meter Kit(Single)UR |
6Y5-W0088-54-00 |
US $2,072.40 |
||
| replacements | |||||
|
1
|
1
6Y5-W0088-55-00 DIGITAL FUEL METER KIT (SINGLE)UR |
6Y5-W0088-55-00 |
US $2,072.40 |
||
|
1
|
1
6Y5-W0088-57-00 Digital Fuel Meter Kit(Single)UR |
6Y5-W0088-57-00 |
US $2,995.20 |
||
|
1
|
1
6Y5-W0088-65-00
Digital Fuel Meter Kit (Twin)
UR |
6Y5-W0088-65-00 |
— | ||
| replacement | |||||
|
1
|
1
6Y5-W0088-66-00
Fuel meter kit
UR |
6Y5-W0088-66-00 |
— | ||
|
2
|
2
6Y5-83500-F2-00 Fuel Management Meter |
6Y5-83500-F2-00 |
US $1,028.28 |
||
| replacements | |||||
|
2
|
2
6Y5-8350F-B0-00 FUEL MANAGEMENT METE |
6Y5-8350F-B0-00 |
US $1,004.52 |
||
|
2
|
2
6Y5-8350F-B2-00 Fuel Meter Movement Assy |
6Y5-8350F-B2-00 |
US $380 |
||
|
3
|
3
6Y5-87122-S0-00 Cord Assy 1 |
6Y5-87122-S0-00 |
from US $23.80 |
||
|
4
|
4
6Y5-8355X-T1-00 Bracket, Meter 1 |
6Y5-8355X-T1-00 |
from US $13.32 |
||
|
5
|
5
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
6
|
6
95380-04600-00 Nut |
95380-04600-00 |
US $1.07 |
||
| replacement | |||||
|
6
|
6
95303-04600-00 Nut |
95303-04600-00 |
from US $2.55 |
||
|
7
|
7
6Y5-83553-F1-00 Wire, Lead (L=80M) |
6Y5-83553-F1-00 |
from US $89 |
||
|
8
|
8
6Y5-85752-02-00 Sender Unit Assy, Fuel MeterFOR 6Y5-W0088-54 |
6Y5-85752-02-00 |
from US $306.72 |
||
|
9
|
9
90158-06003-00 Screw, WoodFOR 6Y5-W0088-54 |
90158-06003-00 |
from US $4.11 |
||
|
10
|
10
6Y5-82117-00-00 Wire, Lead (Black) (L300) |
6Y5-82117-00-00 |
from US $6.52 |
||
|
11
|
11
703-82531-00-00 Wire, Lead (L70)FOR 6Y5-W0088-65 |
703-82531-00-00 |
from US $10.69 |
||
|
12
|
12
6Y5-83500-40-00
Meter Assy
|
6Y5-83500-40-00 |
— | ||
|
13
|
13
6Y5-8355X-T1-00 Bracket, Meter 1 |
6Y5-8355X-T1-00 |
from US $13.32 |
||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
95380-04600-00 Nut |
95380-04600-00 |
US $1.07 |
||
| replacement | |||||
|
15
|
15
95303-04600-00 Nut |
95303-04600-00 |
from US $2.55 |
||
|
16
|
16
6Y5-83533-T2-00 Grommet |
6Y5-83533-T2-00 |
from US $15.87 |
||
|
17
|
17
6Y5-83553-F1-00 Wire, Lead (L=80M)FOR 6Y5-83500-40 |
6Y5-83553-F1-00 |
from US $89 |
||
|
18
|
18
6Y5-85752-02-00 Sender Unit Assy, Fuel MeterFOR 6Y5-83500-40 |
6Y5-85752-02-00 |
from US $306.72 |
||
|
19
|
19
90158-06003-00 Screw, WoodFOR 6Y5-83500-40 |
90158-06003-00 |
from US $4.11 |
||
|
20
|
20
6Y5-85721-F0-00 Wire, LeadAP |
6Y5-85721-F0-00 |
from US $101.25 |
||
