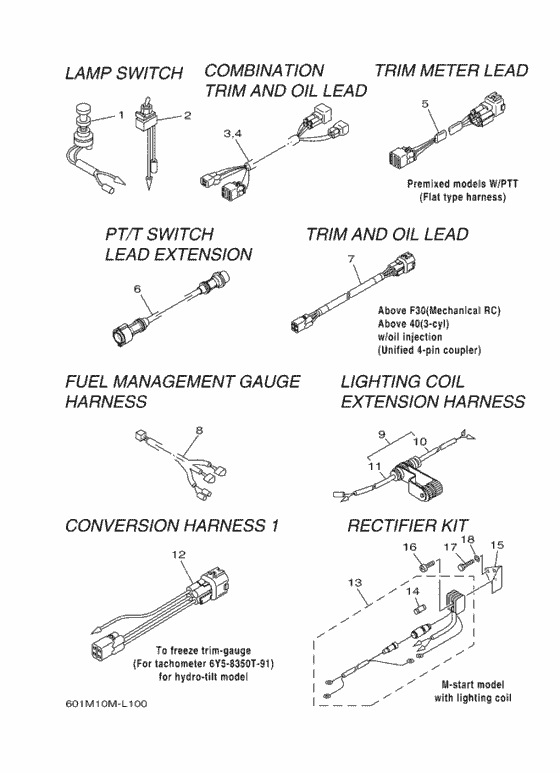

Wire harness 2 Diagram Yamaha Accessories
- Year
- 2012
- Model
- RIGGING METER
- Model code
- 601M
- Year
- 2012
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-82520-00-00 Light Switch Assy |
688-82520-00-00 |
from US $43.38 |
||
|
2
|
2
688-82526-00-00 Switch, Lamp |
688-82526-00-00 |
from US $62.03 |
||
|
3
|
3
64D-82553-50-00 Extension, Wire Lead (L=5.0M)UR FOR (L)250G |
64D-82553-50-00 |
US $97.96 |
||
| replacement | |||||
|
3
|
3
68F-82553-50-00 Extension, Wire Lead (L=5.0M) (16')UR FOR (L)250G |
68F-82553-50-00 |
from US $97.96 |
||
|
3
|
3
64D-82553-70-00 Extension, Wire Lead (L=7.0M)UR FOR (L)250G |
64D-82553-70-00 |
US $97.54 |
||
| replacement | |||||
|
3
|
3
68F-82553-70-00 Extension, Wire Lead (L=7.0M)UR FOR (L)250G |
68F-82553-70-00 |
from US $97.54 |
||
|
3
|
3
64D-82553-80-00 Extension, Wire LeadUR FOR (L)250G |
64D-82553-80-00 |
US $97.54 |
||
| replacement | |||||
|
3
|
3
68F-82553-80-00 Extension, Wire Lead (L=8.0M)UR FOR (L)250G |
68F-82553-80-00 |
from US $97.54 |
||
|
3
|
3
64D-82553-90-00 Extension, Wire Lead (L=9.5M)UR FOR (L)250G |
64D-82553-90-00 |
US $123.52 |
||
| replacement | |||||
|
3
|
3
68F-82553-90-00 Extension, Wire LeadExtension, wire lead UR FOR (L)250G |
68F-82553-90-00 |
from US $123.52 |
||
|
4
|
4
68F-82553-50-00 Extension, Wire Lead (L=5.0M) (16')UR FOR (L)250G |
68F-82553-50-00 |
from US $97.96 |
||
|
4
|
4
68F-82553-70-00 Extension, Wire Lead (L=7.0M)UR FOR (L)250G |
68F-82553-70-00 |
from US $97.54 |
||
|
4
|
4
68F-82553-80-00 Extension, Wire Lead (L=8.0M)UR FOR (L)250G |
68F-82553-80-00 |
from US $97.54 |
||
|
4
|
4
68F-82553-90-00 Extension, Wire LeadExtension, wire lead UR FOR (L)250G |
68F-82553-90-00 |
from US $123.52 |
||
|
4
|
4
68F-82553-A0-00 Extension, Wire Lead (L=10.5M)UR FOR (L)250G |
68F-82553-A0-00 |
from US $126.55 |
||
|
5
|
5
6R3-82553-30-00 Extension, Wire Lead (L=30M)UR (4P) |
6R3-82553-30-00 |
from US $45.18 |
||
| replacement | |||||
|
5
|
5
6R3-85721-30-00 Wire, Lead (L=3M)UR (4P) |
6R3-85721-30-00 |
from US $79.86 |
||
|
5
|
5
6R3-82553-50-00 Extension, Wire Lead (L=5.0M)UR (4P) |
6R3-82553-50-00 |
from US $65.90 |
||
| replacement | |||||
|
5
|
5
6R3-85721-50-00 Wire, Lead (L=5M)UR (4P) |
6R3-85721-50-00 |
from US $120.75 |
||
|
5
|
5
6R3-82553-70-00 Extension, Wire Lead (L=7.0M)UR (4P) |
6R3-82553-70-00 |
from US $108.59 |
||
|
5
|
5
6R3-82553-80-00 Extension, Wire Lead (L=8.0M)UR (4P) |
6R3-82553-80-00 |
from US $108.59 |
||
| replacement | |||||
|
5
|
5
6R3-85721-80-00 Wire, Lead (L=8M)UR (4P) |
6R3-85721-80-00 |
from US $100.58 |
||
|
5
|
5
6R3-82553-90-00 Extension, Wire Lead (L=9.0M)UR (4P) |
6R3-82553-90-00 |
from US $140.92 |
||
|
6
|
6
688-82586-11-00 Extension, Wire Harness (2.0M)L:2M(7P) |
688-82586-11-00 |
US $115.36 |
||
| replacement | |||||
|
6
|
6
688-82586-12-00 Extension, Wire HarnessL:2M(7P) |
688-82586-12-00 |
US $128.18 |
||
|
7
|
7
6Y5-83653-00-00 Wire, Lead (L=5.0M)UR 4P,5M |
6Y5-83653-00-00 |
from US $75.44 |
||
|
7
|
7
6Y5-83653-10-00 Wire, Lead (L=6.0M)UR 4P,6M |
6Y5-83653-10-00 |
from US $78.98 |
||
|
7
|
7
6Y5-83653-20-00 Wire, Lead (L=7.0M)UR 4P,7M |
6Y5-83653-20-00 |
from US $83.54 |
||
|
7
|
7
6Y5-83653-30-00 Wire, Lead (L=8.0M)Wire, lead UR 4P,8M |
6Y5-83653-30-00 |
from US $109.35 |
||
|
7
|
7
6Y5-83653-40-00 Wire, Lead (L=9.0M)UR 4P,9M |
6Y5-83653-40-00 |
from US $172.13 |
||
|
7
|
7
6Y5-83653-50-00 Wire, Lead (L=10.5M)UR 4P,10.5M |
6Y5-83653-50-00 |
from US $188.33 |
||
|
8
|
8
6Y5-83553-F1-00 Wire, Lead (L=80M) |
6Y5-83553-F1-00 |
from US $89 |
||
|
9
|
9
682-84380-00-00 Concent 2P |
682-84380-00-00 |
from US $67.73 |
||
|
10
|
10
682-84381-00-00 2P Concent |
682-84381-00-00 |
from US $45.77 |
||
|
11
|
11
682-84382-00-00 2P Concemt |
682-84382-00-00 |
from US $64.47 |
||
|
12
|
12
6Y5-8350U-10-00 Wire, Lead |
6Y5-8350U-10-00 |
US $31.17 |
||
|
13
|
13
676-81970-01-00 Rectifier Assy |
676-81970-01-00 |
US $92.71 |
||
| replacement | |||||
|
13
|
13
676-81970-02-00 Rectifier Assy |
676-81970-02-00 |
from US $92.71 |
||
|
14
|
14
663-82151-00-00 Fuse (12V-20A) |
663-82151-00-00 |
US $1.81 |
||
| replacements | |||||
|
14
|
14
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.81 |
||
|
14
|
14
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.81 |
||
|
15
|
15
677-81975-00-00
Plate, Rectifier Fitting
|
677-81975-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
97880-05025-00 Screw, Pan Head |
97880-05025-00 |
US $1.35 |
||
| replacement | |||||
|
16
|
16
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
17
|
17
97013-06010-00 Bolt |
97013-06010-00 |
from US $1.49 |
||
|
18
|
18
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
