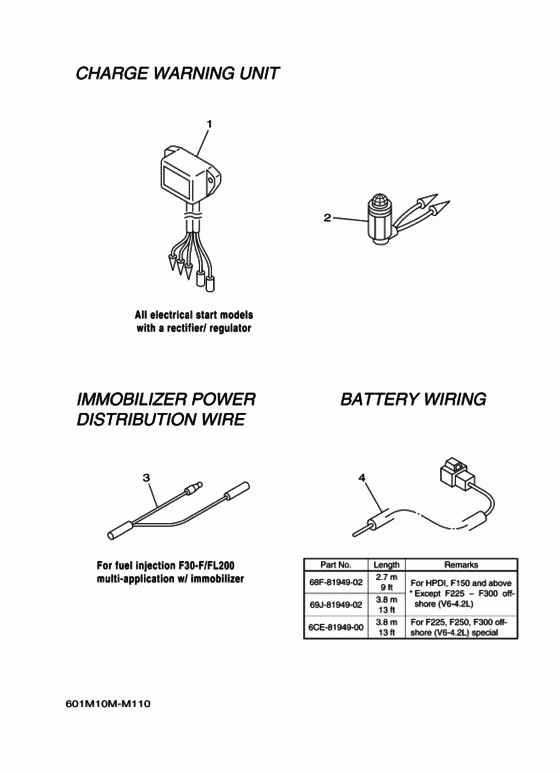

Electrical Diagram Yamaha Accessories
- Year
- 2013
- Model
- RIGGING METER
- Model code
- 601M
- Year
- 2013
- Sales region
- Finland (010)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-81901-60-00
Charge Warning Unit Assy
|
697-81901-60-00 |
— | ||
|
2
|
2
663-84301-01-00 Pilot Lamp Ass'y12V |
663-84301-01-00 |
from US $62.17 |
||
|
3
|
3
6H5-81315-00-00 Lead Wire Assy |
6H5-81315-00-00 |
from US $8.22 |
||
|
4
|
4
68F-81949-02-00 Wire, Lead (Isolator, 2.7M )UR |
68F-81949-02-00 |
from US $76.74 |
||
| replacement | |||||
|
4
|
4
68F-81949-03-00 WIRE, LEADUR |
68F-81949-03-00 |
from US $85.55 |
||
|
4
|
4
69J-81949-02-00 Wire, Lead (Isolator, 3.8M )UR |
69J-81949-02-00 |
US $88.15 |
||
| replacement | |||||
|
4
|
4
69J-81949-03-00 Wire, LeadUR |
69J-81949-03-00 |
from US $92.52 |
||
|
4
|
4
6CE-81949-00-00 Wire, Lead (Isolator Cable)UR |
6CE-81949-00-00 |
US $102.24 |
||
